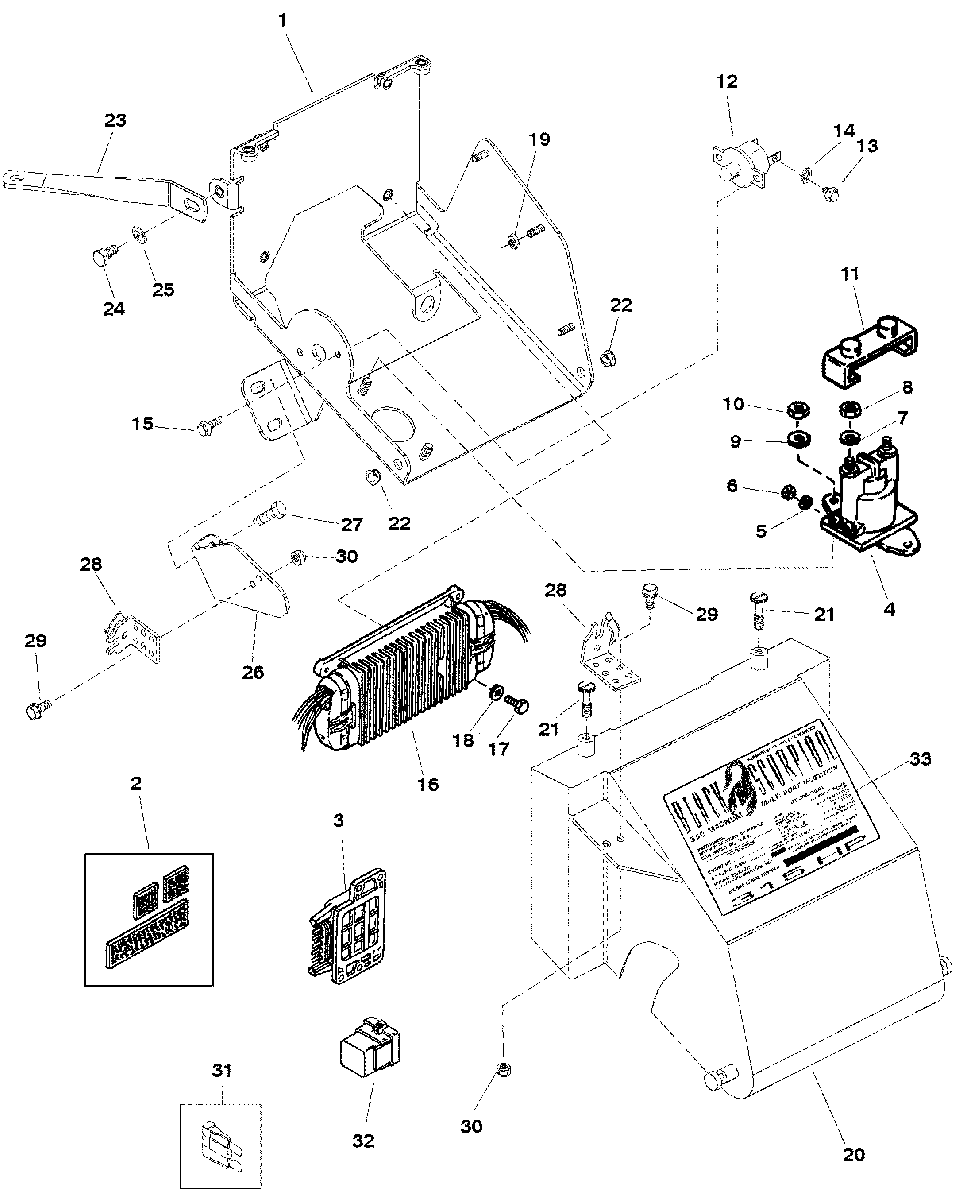

ELECTRICAL BOX AND COMPONENTS (S/N 0K040001 THRU 0K999999) для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599
-
№АртикулНазвание
-
1807938A1 BOX-ELECTRICAL COMPONENTSBOX-ELECTRICAL COMPONENTS
-
2806762A1 VELCRO KITVELCRO KIT
-
3806611T MODULE ASSEMBLY-KNOCKMODULE ASSEMBLY-KNOCK
-
489-96054T SOLENOID-STARTERSOLENOID-STARTER
-
513-26995 LOCKWASHER (#8)LOCKWASHER (#8)
-
611-26419 NUT (8-32)NUT (8-32)
-
713-26992 LOCKWASHER (1/4 IN.)LOCKWASHER (1/4 IN.)
-
811-94330 NUT (1/4-20)NUT (1/4-20)
-
912-35462 WASHERWASHER
-
1011-64015 NUT (1/4-20)NUT (1/4-20)
-
1185-97861 INSULATOR-STARTER SOLENOIDINSULATOR-STARTER SOLENOID
-
1288-11178A01 BREAKER-CIRCUITBREAKER-CIRCUIT
-
1310-68513 SCREW (#10-32 X 3/8 IN.)SCREW (#10-32 X 3/8 IN.)
-
1413-26996 LOCKWASHER (#10)LOCKWASHER (#10)
-
1510-57583T SCREW (#8-32 X 3/8 IN.)SCREW (#8-32 X 3/8 IN.)
-
16860432T2 MODULE-ECMMODULE-ECM
-
1710-76596 SCREW (1/4-20 X1-1/4 IN.)SCREW (1/4-20 X1-1/4 IN.)
-
1812-20533 WASHERWASHER
-
1911-805562 NUT (#10-24)NUT (#10-24)
-
20861071A1 LID-ELECTRICAL BOXLID-ELECTRICAL BOX
-
2110-860137 SCREW-THUMBSCREW-THUMB
-
2223-48475 BUSHINGBUSHING
-
2354-807966 STRAPSTRAP
-
2410-54615 SCREW (1/4-20 X 5/8 IN.)SCREW (1/4-20 X 5/8 IN.)
-
2513-26992 LOCKWASHER (1/4 IN.)LOCKWASHER (1/4 IN.)
-
26807719T BRACKETBRACKET
-
2710-65746 SCREW (1/4-20 X 3/4 IN.)SCREW (1/4-20 X 3/4 IN.)
-
28807485T BRACKETBRACKET
-
2910-89766 SCREW (#10-32 X 5/8 IN.)SCREW (#10-32 X 5/8 IN.)
-
3011-826709106 NUT (#10-32)NUT (#10-32)
-
31862647 FUSE (10 AMP)FUSE (10 AMP)
-
3188-804642 FUSE (15 AMP)FUSE (15 AMP)
-
3286-865202T RELAY-FUEL PUMP/IGNITION SYSTEMRELAY-FUEL PUMP/IGNITION SYSTEM
-
3337-80551722 DECAL-ENGINE SPEC.DECAL-ENGINE SPEC.
