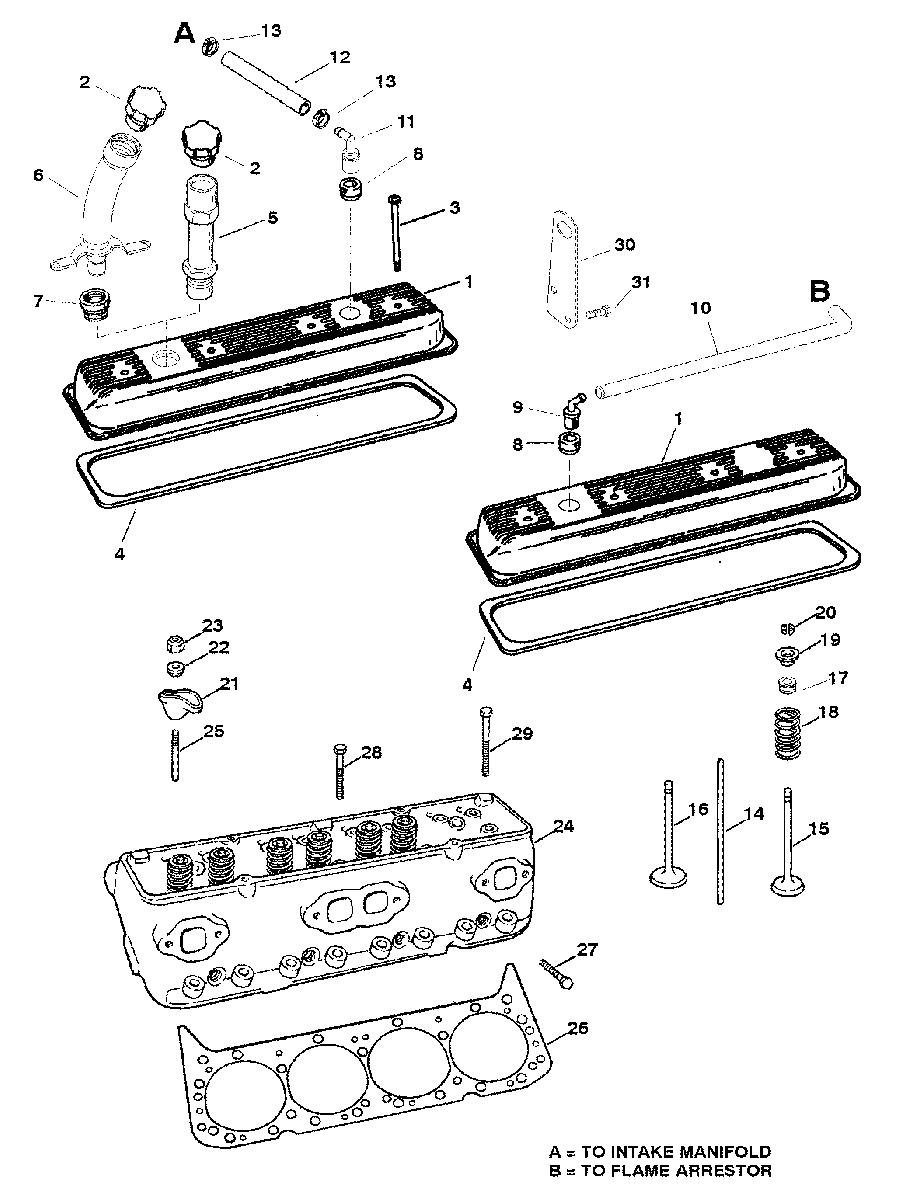

CYLINDER HEAD AND ROCKER COVER для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    809995 COVER-ROCKER
    (STARBOARD)-(WITH OIL FILL HOLE)
    COVER-ROCKER
    (STARBOARD)-(WITH OIL FILL HOLE)
  • 1
    809996 COVER-ROCKER
    (PORT)-(W/O OIL FILL HOLE)
    COVER-ROCKER
    (PORT)-(W/O OIL FILL HOLE)
  • 2
    36-18710002 CAP-OIL FILL
    CAP-OIL FILL
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET-ROCKER COVER
    GASKET-ROCKER COVER
  • 5
    807688T TUBE-OIL FILL
    (IN-LINE)
    TUBE-OIL FILL
    (IN-LINE)
  • 6
    879194T09 TUBE-OIL FILL
    (REMOTE V-DRIVE)
    TUBE-OIL FILL
    (REMOTE V-DRIVE)
  • 7
    26-805622 GROMMET
    (REMOTE V-DRIVE)
    GROMMET
    (REMOTE V-DRIVE)
  • 8
    23-8M0071559 GROMMET
    GROMMET
  • 9
    97850T ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 10
    32-807786 HOSE-BREATHER (TO FLAME ARRESTOR)
    HOSE-BREATHER (TO FLAME ARRESTOR)
  • 11
    21-8M2017060 VALVE-PCV
    VALVE-PCV
  • 12
    32-8M0062321 HOSE-PCV
    (TO INTAKE MANIFOLD) (CUT TO 19 IN.)
    HOSE-PCV
    (TO INTAKE MANIFOLD) (CUT TO 19 IN.)
  • 13
    54-815504105 CLAMP
    CLAMP
  • 14
    173391 PUSH ROD
    PUSH ROD
  • 15
    8243171 VALVE-EXHAUST
    (STANDARD)
    VALVE-EXHAUST
    (STANDARD)
  • 15
    8243181 VALVE-EXHAUST
    (.5MM O.S.)
    VALVE-EXHAUST
    (.5MM O.S.)
  • 16
    809992 VALVE-INTAKE
    (STANDARD)
    VALVE-INTAKE
    (STANDARD)
  • 17
    26-8M0050563 SEAL-VALVE
    (INTAKE AND EXHAUST)
    SEAL-VALVE
    (INTAKE AND EXHAUST)
  • 18
    24-483471 SPRING
    SPRING
  • 19
    483481 CAP
    CAP
  • 20
    28-547971 KEY
    KEY
  • 21
    35329 ARM KIT-ROCKER
    ARM KIT-ROCKER
  • 22
    35331 BALL UNIT
    BALL UNIT
  • 23
    11-34516 NUT
    NUT
  • 24
    938-8M0115137 HEAD ASSEMBLY-CYLINDER
    HEAD ASSEMBLY-CYLINDER
  • 25
    16-34522 STUD
    (.003 O.S.)
    STUD
    (.003 O.S.)
  • 25
    16-34521 STUD
    (.013 O.S.)
    STUD
    (.013 O.S.)
  • 26
    27-75611001 GASKET
    GASKET
  • 27
    10-11968 BOLT (7/16-14 X 1-3/4 IN.)
    BOLT (7/16-14 X 1-3/4 IN.)
  • 28
    10-119671 BOLT (7/16-14 X 3 IN.)
    BOLT (7/16-14 X 3 IN.)
  • 29
    10-11966 BOLT (7/16-14 X 3-3/4 IN.)
    BOLT (7/16-14 X 3-3/4 IN.)
  • 30
    806815T LIFTING EYE
    LIFTING EYE
  • 31
    10-98261 SCREW (3/8-16 X 3/4 IN.) - REAR
    SCREW (3/8-16 X 3/4 IN.) - REAR
  • -
    27-807670A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
  • -
    8M0088397 MARINE LONG BLOCK ENGINE
    (350)
    MARINE LONG BLOCK ENGINE
    (350)
  • 862760R01 MARINE LONGBLOCK ENGINE
    (6.2L)(S/N-0L679130 and Below)
    MARINE LONGBLOCK ENGINE
    (6.2L)(S/N-0L679130 and Below)
  • -
    8M0061211 MARINE LONG BLOCK ENGINE
    (6.2L)(S/N-0L679131 and Up)
    MARINE LONG BLOCK ENGINE
    (6.2L)(S/N-0L679131 and Up)
