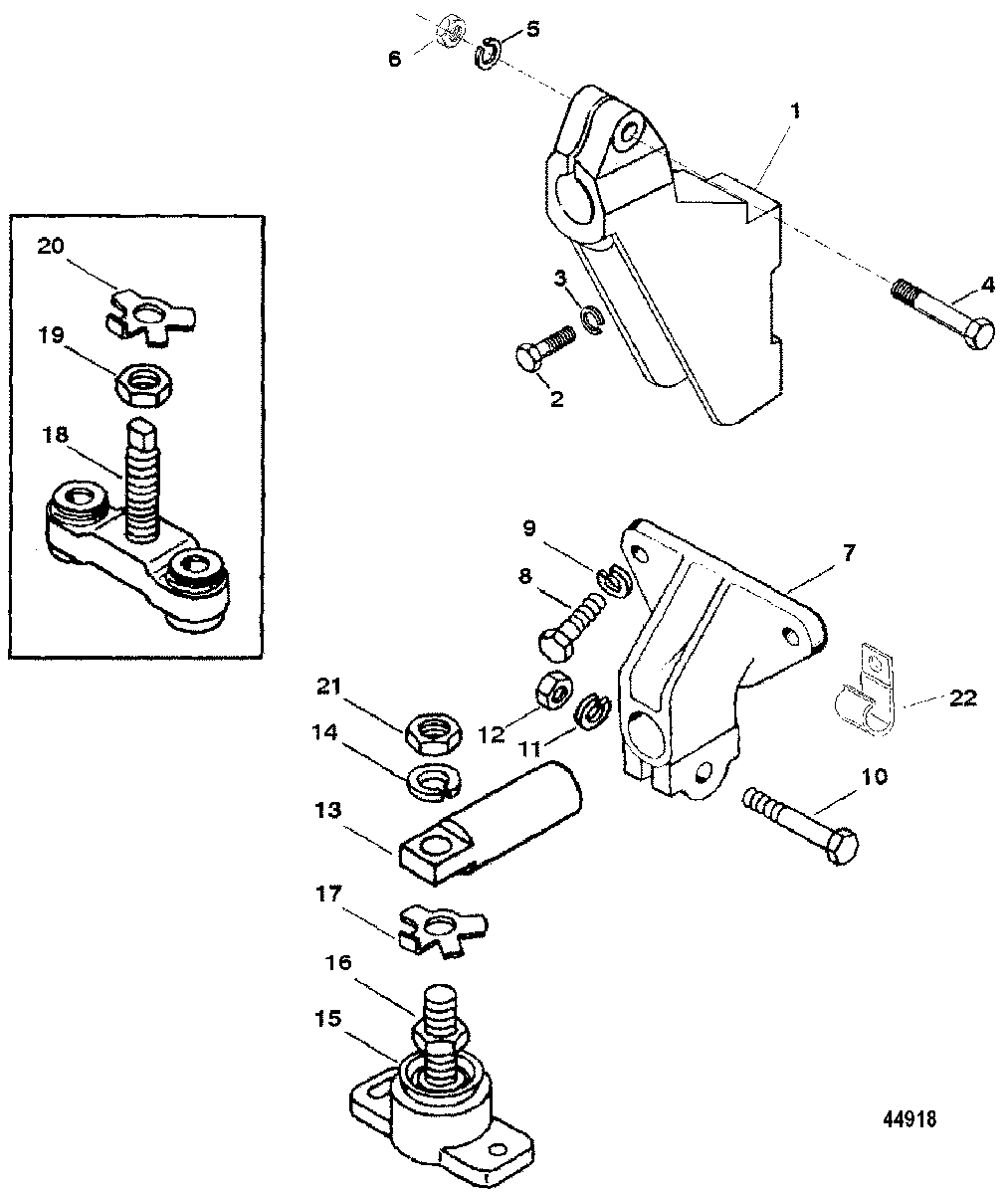

TRANSMISSION AND ENGINE MOUNTING(BORG WARNER 71C) для Mercruiser - 5.7L EFI MIE GM 350 V-8 1997 0K040300 THRU 0K261160

  • №
    Артикул
    Название
  • 1
    66417T BRACKET, Rear
    BRACKET, Rear
  • 1
    52158A20 BRACKET, Rear
    (REMOTE V-DRIVE)
    BRACKET, Rear
    (REMOTE V-DRIVE)
  • 2
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 2
    10-47462 SCREW, (.437-14 x 1.250)
    (REMOTE V-DRIVE)
    SCREW, (.437-14 x 1.250)
    (REMOTE V-DRIVE)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 4
    10-47724 SCREW, (.437-14 x 3.00)
    (REMOTE V-DRIVE)
    SCREW, (.437-14 x 3.00)
    (REMOTE V-DRIVE)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    71128A2 BRACKET, Front
    BRACKET, Front
  • 8
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 8
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 13
    66166A4 TRUNNION
    TRUNNION
  • 14
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 15
    66284A2 BASE ASSEMBLY, Engine End
    BASE ASSEMBLY, Engine End
  • 16
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 17
    14-66658 TAB WASHER
    TAB WASHER
  • 18
    816326A2 BASE ASSEMBLY, Transmission End
    BASE ASSEMBLY, Transmission End
  • 19
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 20
    14-66658 TAB WASHER
    TAB WASHER
  • 21
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 22
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
