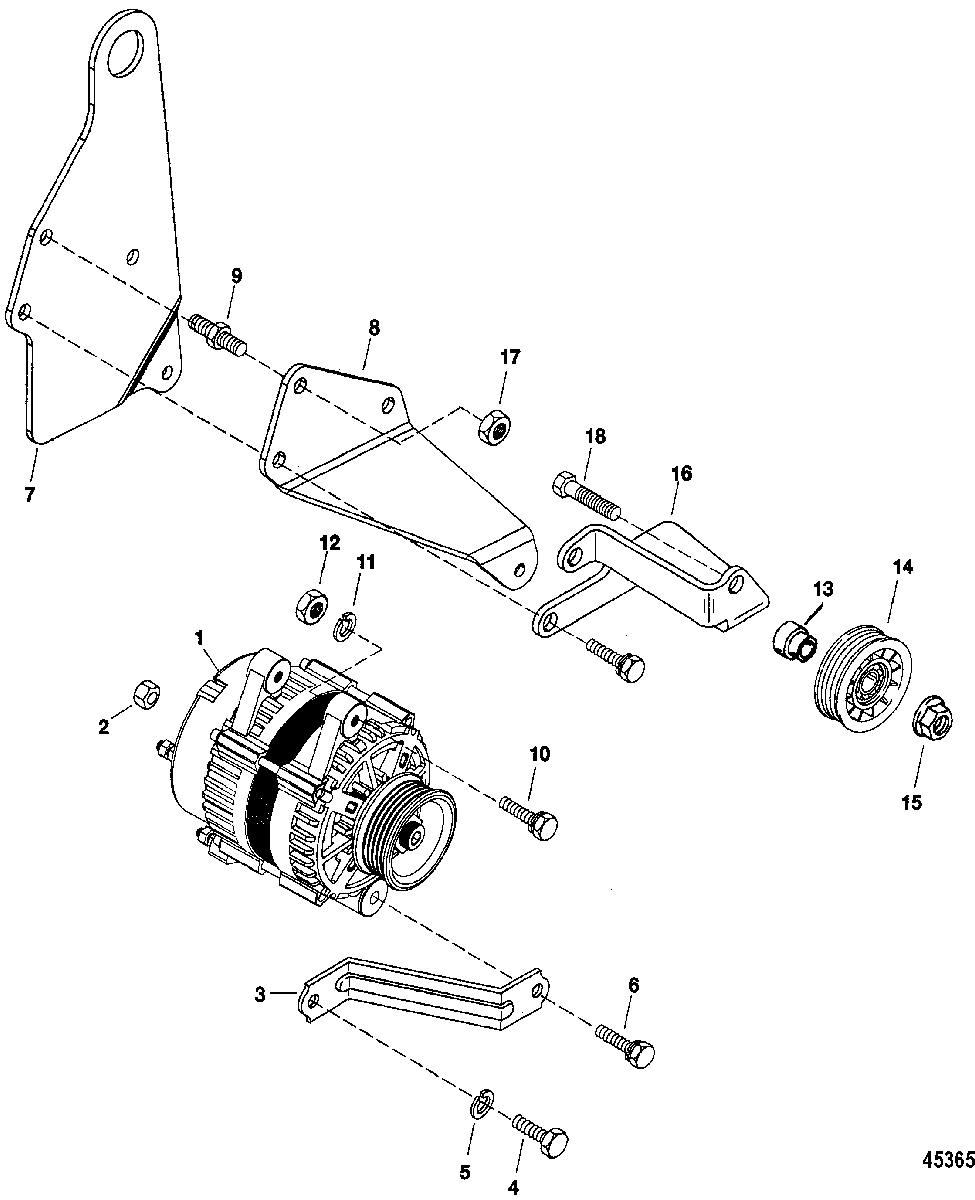

ALTERNATOR AND BRACKETS(DELCO) для Mercruiser - 5.7L EFI MIE GM 350 V-8 1997 0K040300 THRU 0K261160

  • №
    Артикул
    Название
  • 1
    862031T1 ALTERNATOR ASSEMBLY (65 Amp)
    (Non Serviceable - Replace Complete Assembly)
    ALTERNATOR ASSEMBLY (65 Amp)
    (Non Serviceable - Replace Complete Assembly)
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    807750T BRACE
    BRACE
  • 4
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 5
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 6
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 7
    862051T BRACKET, Alternator/Power Steering
    BRACKET, Alternator/Power Steering
  • 8
    862058T BRACE, Alternator
    BRACE, Alternator
  • 9
    16-860102 STUD, (.375-16 x 1.730)
    STUD, (.375-16 x 1.730)
  • 10
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 11
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 12
    12-57792 WASHER
    WASHER
  • 13
    865193 BUSHING
    BUSHING
  • 14
    807757T PULLEY ASSEMBLY, Idler - Black
    PULLEY ASSEMBLY, Idler - Black
  • 15
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 16
    807753T1 BRACKET, Idler
    BRACKET, Idler
  • 17
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 18
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • NS
    84-862164T1 HARNESS ASSEMBLY, Wiring
    HARNESS ASSEMBLY, Wiring
