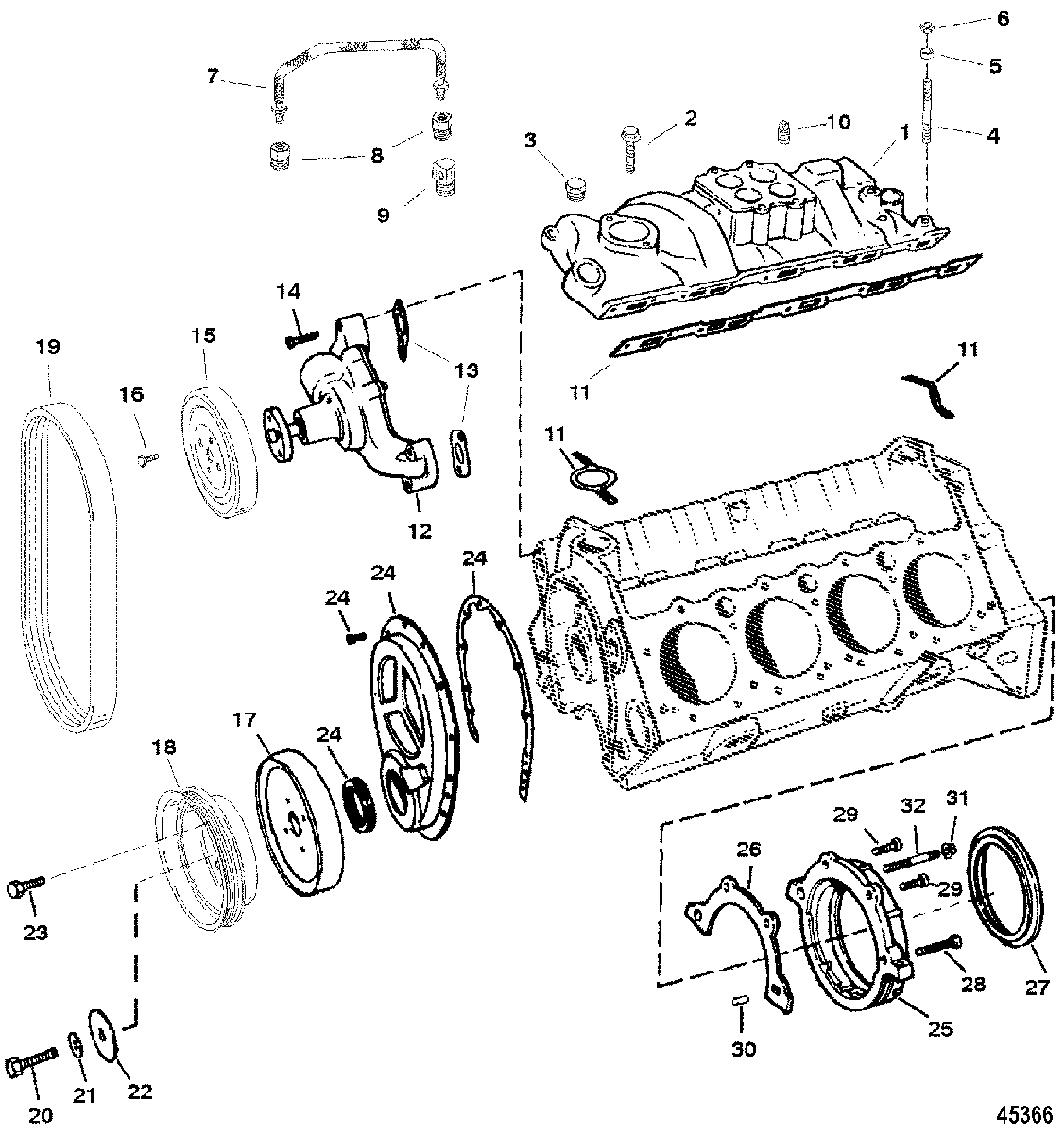

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L EFI MIE GM 350 V-8 1997 0K040300 THRU 0K261160

  • №
    Артикул
    Название
  • 1
    807289A1 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 3
    22-860075 PLUG, Pipe (.500-14)
    PLUG, Pipe (.500-14)
  • 4
    16-73563 STUD, (.312-18/.312-24 x 2.310)
    STUD, (.312-18/.312-24 x 2.310)
  • 5
    23-52095 SPACER
    SPACER
  • 6
    11-82670911 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 7
    32-807727A2 TUBE ASSEMBLY, Exhaust
    IN-LINE
    TUBE ASSEMBLY, Exhaust
    IN-LINE
  • 8
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    IN-LINE
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    IN-LINE
  • 7
    32-860324A2 TUBE ASSEMBLY, Exhaust
    V-DRIVE
    TUBE ASSEMBLY, Exhaust
    V-DRIVE
  • 8
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    V-DRIVE
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    V-DRIVE
  • 9
    22-47630 ELBOW, 90 Degree
    V-DRIVE
    ELBOW, 90 Degree
    V-DRIVE
  • 10
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 11
    27-807473A1 GASKET SET, Intake Manifold
    GASKET SET, Intake Manifold
  • 12
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 13
    27-34897 GASKET, Water Pump
    GASKET, Water Pump
  • 14
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 14
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 14
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 15
    807729T PULLEY, Water Pump
    PULLEY, Water Pump
  • 16
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 17
    852946001 BALANCER, Harmonic
    BALANCER, Harmonic
  • 18
    807730T PULLEY, Crankshaft
    PULLEY, Crankshaft
  • 19
    57-807755Q04 BELT, Serpentine
    BELT, Serpentine
  • 20
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 21
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 22
    12-35332001 WASHER
    WASHER
  • 23
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 24
    835005 COVER ASSEMBLY, Timing
    (Screws, Grommets, Oil Seal and gasket are not sold separately)
    COVER ASSEMBLY, Timing
    (Screws, Grommets, Oil Seal and gasket are not sold separately)
  • 25
    852940 HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
    HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
  • 26
    27-881715 GASKET
    GASKET
  • 27
    26-852941 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 28
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 29
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 30
    17-14263 PIN, Dowel
    PIN, Dowel
  • 31
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 32
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-75611A96 GASKET SET
    GASKET SET
