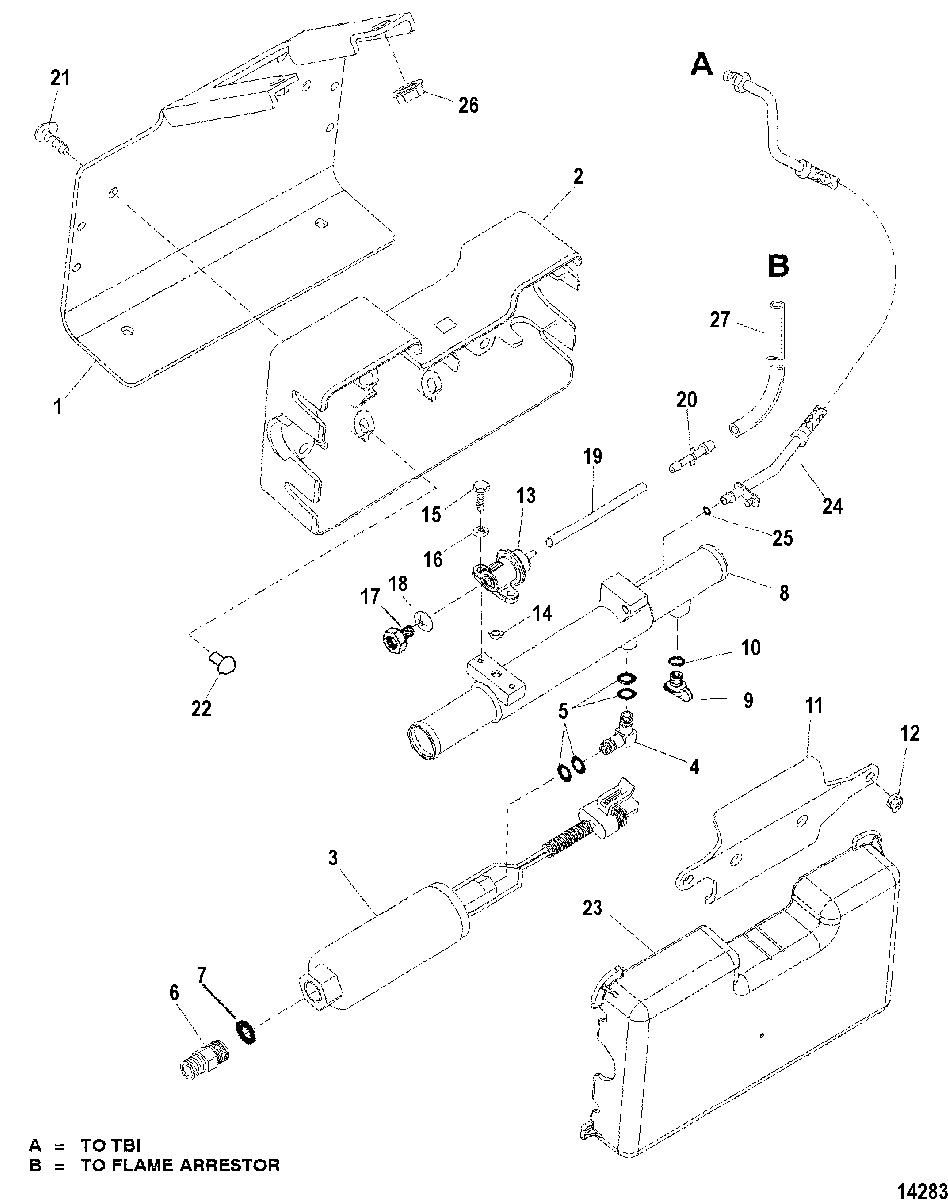

FUEL PUMP AND FUEL COOLER для Mercruiser - 5.7L EFI MIE GM 350 V-8 1997 0K040300 THRU 0K261160

  • №
    Артикул
    Название
  • 1
    807951T BRACKET, Fuel Cooler
    BRACKET, Fuel Cooler
  • 2
    807685T INSULATOR, Base
    INSULATOR, Base
  • 3
    861156A1 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 4
    22-807783A1 FITTING ASSEMBLY, 90 Degree
    FITTING ASSEMBLY, 90 Degree
  • 5
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 6
    22-808001A1 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 7
    25-805062 O-RING, (.530 x .082)
    O-RING, (.530 x .082)
  • 8
    8M0125843 COOLER, Fuel
    COOLER, Fuel
  • 9
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 10
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 11
    807979T BRACKET
    BRACKET
  • 12
    11-29598 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 13
    807952A1 REGULATOR KIT, Fuel Pressure
    REGULATOR KIT, Fuel Pressure
  • 14
    35-805406 FILTER, Fuel Pressure Regulator
    FILTER, Fuel Pressure Regulator
  • 15
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 16
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 17
    22-808002A1 FITTING KIT
    FITTING KIT
  • 18
    12-36533 WASHER, (.328 x .562 x .0312) Copper
    WASHER, (.328 x .562 x .0312) Copper
  • 19
    32-8M0063567 HOSE, (52.00 Inches Bulk)
    HOSE, (52.00 Inches Bulk)
  • 20
    22-807971 CONNECTOR, Hose
    CONNECTOR, Hose
  • 21
    10-808005 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 22
    269011 BUMPER, Rubber
    BUMPER, Rubber
  • 23
    807930T01 INSULATOR, Cover
    INSULATOR, Cover
  • 24
    32-808036T LINE, Fuel, Fuel Cooler to TBI
    LINE, Fuel, Fuel Cooler to TBI
  • 25
    25-805970 O-RING
    O-RING
  • 26
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
  • 27
    32-8M0040618 HOSE, (.2187 x .440)
    HOSE, (.2187 x .440)
  • -
    27-75611A96 GASKET SET
    GASKET SET
