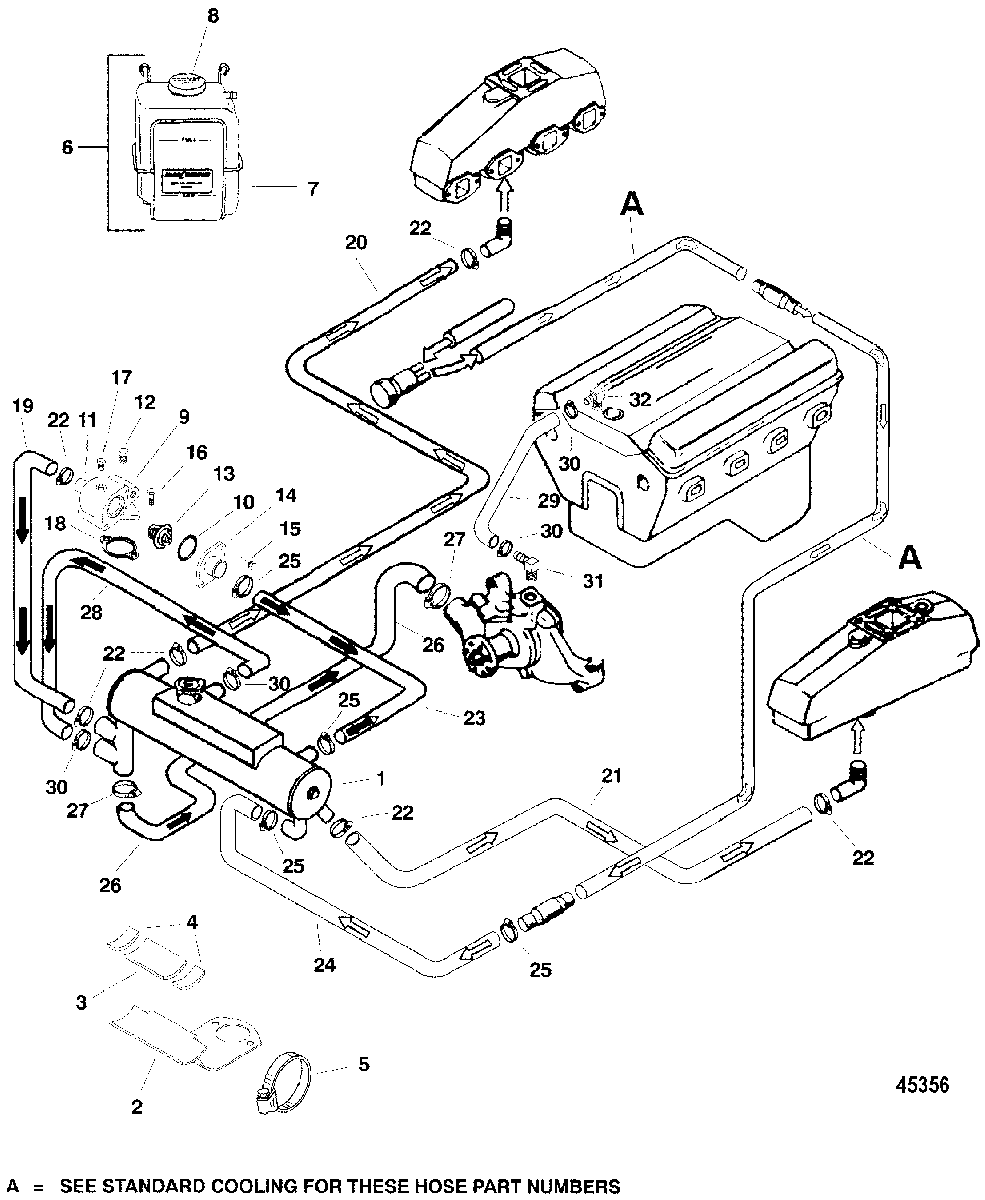

CLOSED COOLING SYSTEM для Mercruiser - 5.7L EFI MIE GM 350 V-8 1997 0K040300 THRU 0K261160

  • №
    Артикул
    Название
  • 1
    860234A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • 2
    860326A1 BRACKET ASSEMBLY, Heat Exchanger
    BRACKET ASSEMBLY, Heat Exchanger
  • 3
    18431 PAD
    PAD
  • 4
    772233 PAD
    PAD
  • 5
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 6
    71587A10 RECOVERY KIT, Coolant
    (See Note)
    RECOVERY KIT, Coolant
    (See Note)
  • -
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 7
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 8
    72058 CAP
    CAP
  • 9
    861188A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 10
    25-8071341 SEAL
    SEAL
  • 11
    23-52020 SLEEVE, Hose
    SLEEVE, Hose
  • 12
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 13
    991551 THERMOSTAT
    THERMOSTAT
  • 14
    807075A1 COVER, Thermostat
    COVER, Thermostat
  • 15
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 16
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 17
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 18
    27-530451 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 19
    32-860380 HOSE, Thermostat by-pass
    HOSE, Thermostat by-pass
  • 20
    32-860328 HOSE, Heat Exchanger to Exhaust Manifold
    (STARBOARD)
    HOSE, Heat Exchanger to Exhaust Manifold
    (STARBOARD)
  • 21
    32-860327 HOSE, Heat Exchanger to Exhaust Manifold
    (PORT)
    HOSE, Heat Exchanger to Exhaust Manifold
    (PORT)
  • 22
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 23
    32-807691 HOSE, Thermostat Housing to Heat Exchanger
    HOSE, Thermostat Housing to Heat Exchanger
  • 24
    32-860332 HOSE, Oil Cooler to Heat Exchanger
    HOSE, Oil Cooler to Heat Exchanger
  • 25
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 26
    32-861059 HOSE, Water Pump to Heat Exchanger
    HOSE, Water Pump to Heat Exchanger
  • 27
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 28
    32-8M0062634 HOSE, (44.00 Inches Bulk), Heat Exchanger to Heat Exchanger
    HOSE, (44.00 Inches Bulk), Heat Exchanger to Heat Exchanger
  • 29
    32-99520 HOSE, Water Pump To Intake Manifold
    HOSE, Water Pump To Intake Manifold
  • 30
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 31
    22-860346 FITTING, Elbow (90 Degree) (.750)
    FITTING, Elbow (90 Degree) (.750)
  • 32
    22-808042 FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars)
    FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars)
  • -
    27-75611A96 GASKET SET
    GASKET SET
