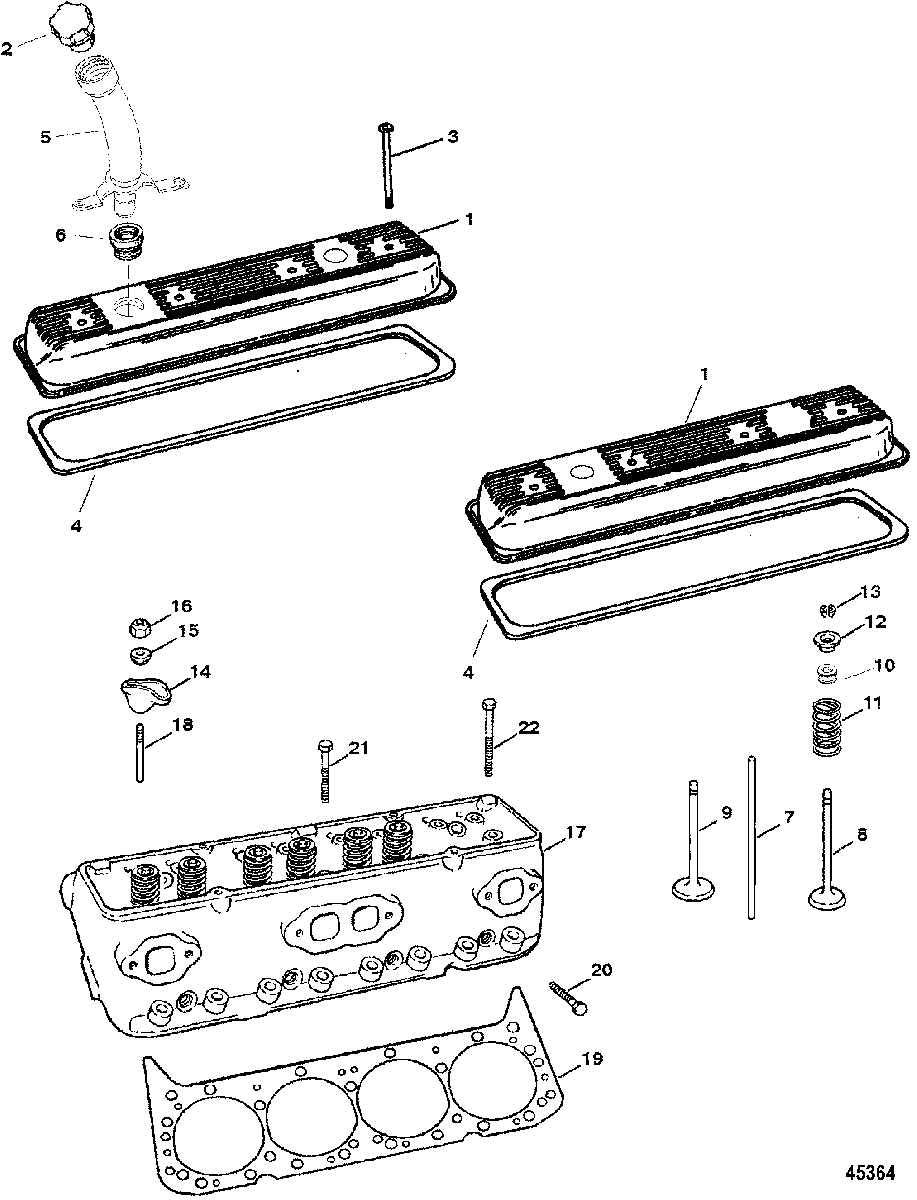

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 5.7L EFI MIE GM 350 V-8 1997 0K040300 THRU 0K261160

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker (STARBOARD)-(WITH OIL FILL HOLE)
    COVER, Rocker (STARBOARD)-(WITH OIL FILL HOLE)
  • 1
    809996 COVER, Rocker (PORT)-(WITHOUT OIL FILL HOLE)
    COVER, Rocker (PORT)-(WITHOUT OIL FILL HOLE)
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    879194T09 TUBE
    V-DRIVE
    TUBE
    V-DRIVE
  • 6
    26-805622 GROMMET
    V-DRIVE
    GROMMET
    V-DRIVE
  • 7
    173391 PUSH ROD
    PUSH ROD
  • 8
    8243171 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 8
    8243181 VALVE, Exhaust
    (.5MM O.S.)
    VALVE, Exhaust
    (.5MM O.S.)
  • 9
    809992 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 10
    26-8M0050563 SEAL
    (INTAKE AND EXHAUST)
    SEAL
    (INTAKE AND EXHAUST)
  • 11
    24-483471 SPRING
    SPRING
  • 12
    483481 CAP
    CAP
  • 13
    28-547971 KEY
    KEY
  • 14
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 15
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 16
    11-34516 NUT
    NUT
  • 17
    938-8M0115137 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 18
    16-34522 STUD (.003 O.S.)
    STUD (.003 O.S.)
  • 18
    16-34521 STUD (.013 O.S.)
    STUD (.013 O.S.)
  • 19
    27-75611001 GASKET
    GASKET
  • 20
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 21
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 22
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • -
    27-75611A96 GASKET SET
    GASKET SET
