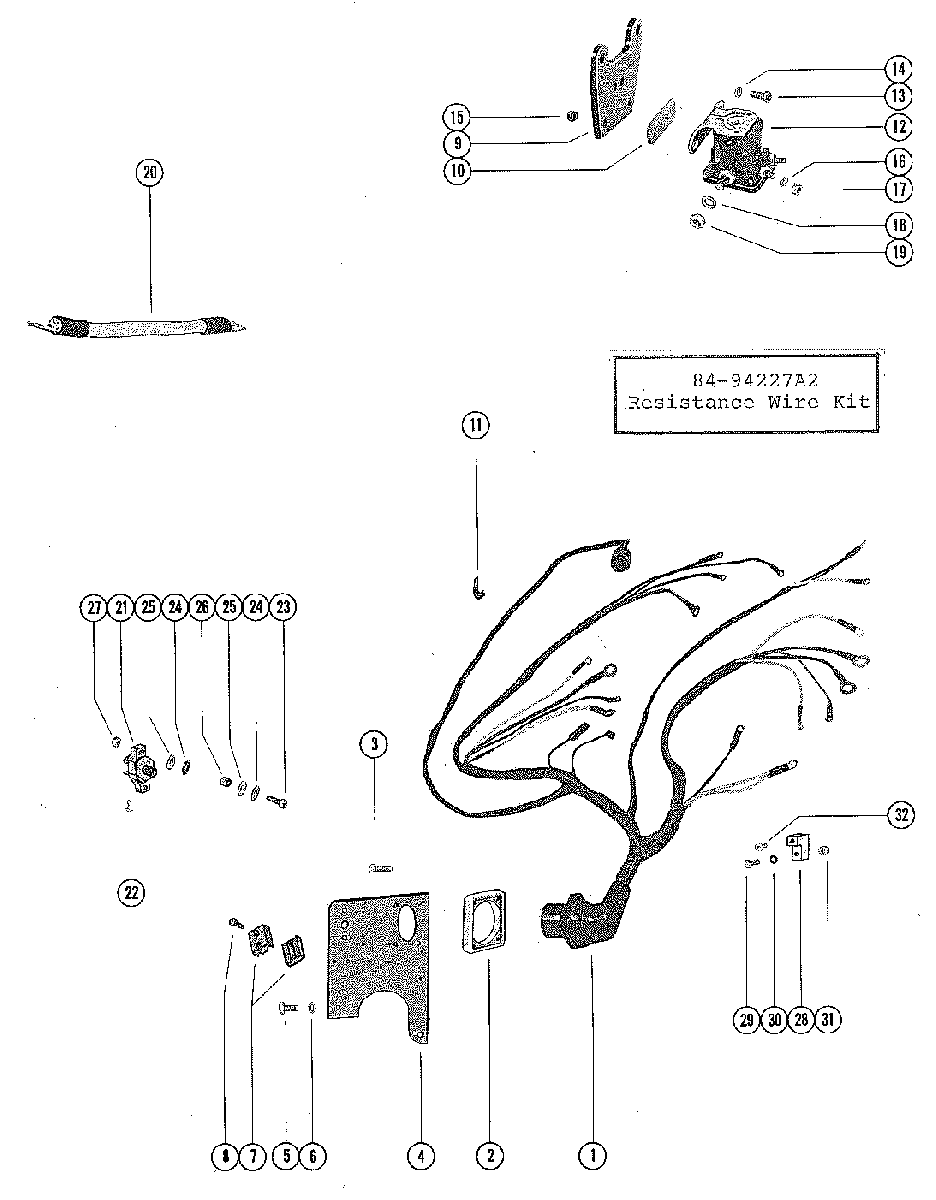

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID (STERN для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299

  • №
    Артикул
    Название
  • 1
    84-62137A4 WIRING HARNESS
    SERIAL 00000000-03415950
    WIRING HARNESS
    SERIAL 00000000-03415950
  • 1
    84-64606 WIRING HARNESS
    SERIAL 03523621-09999999
    WIRING HARNESS
    SERIAL 03523621-09999999
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    63087 BRACKET, MOUNTING - HARNESS AND CIRCUIT BREAKER
    BRACKET, MOUNTING - HARNESS AND CIRCUIT BREAKER
  • 5
    10-23703 SCREW, MOUNTING BRACKET ATTACHING (7/8")
    SCREW, MOUNTING BRACKET ATTACHING (7/8")
  • 6
    13-26993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    39974 CONNECTOR, TRIM LEADS - MOUNTING BRACKET
    SERIAL 00000000-03415950
    CONNECTOR, TRIM LEADS - MOUNTING BRACKET
    SERIAL 00000000-03415950
  • 8
    19-47815 SCREW, CONNECTOR TO BRACKET (3/4")
    SERIAL 00000000-03415950
    SCREW, CONNECTOR TO BRACKET (3/4")
    SERIAL 00000000-03415950
  • 7
    86-638131 TERMINAL BLOCK, TRIM LEADS - MOUNTING BRACKET (NOT AS SHOWN)
    SERIAL 03523621-09999999
    TERMINAL BLOCK, TRIM LEADS - MOUNTING BRACKET (NOT AS SHOWN)
    SERIAL 03523621-09999999
  • 8
    10-48591 SCREW, TERMINAL BLOCK TO BRACKET (1/2")
    SERIAL 03523621-09999999
    SCREW, TERMINAL BLOCK TO BRACKET (1/2")
    SERIAL 03523621-09999999
  • 9
    54869 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 10
    36177 INSULATOR, SOLENOID TO MOUNTIING BRACKET
    INSULATOR, SOLENOID TO MOUNTIING BRACKET
  • 11
    54-47729 CLIP, WIRING HARNESS
    CLIP, WIRING HARNESS
  • 12
    65057T1 STARTER SOLENOID
    STARTER SOLENOID
  • 13
    10-22956 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (7/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (7/8")
  • 14
    12-22937 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 15
    11-8267089 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 16
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 17
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 18
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 19
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 20
    54979 CABLE, STARTER SOLENOID TO STARTER MOTOR (YELLOW - 9 1/2")
    CABLE, STARTER SOLENOID TO STARTER MOTOR (YELLOW - 9 1/2")
  • 21
    59816 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 22
    10-36046 SCREW, WIRING HARNESS LEAD TO CIRCUIT BREAKER
    SCREW, WIRING HARNESS LEAD TO CIRCUIT BREAKER
  • 23
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
  • 24
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    GROMMET, CIRCUIT BREAKER SCREW
  • 25
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 26
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    SPACER, CIRCUIT BREAKER GROMMET
  • 27
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 28
    52418 TERMINAL BLOCK, NEUTRAL STARTER LEADS
    TERMINAL BLOCK, NEUTRAL STARTER LEADS
  • 29
    10-21091 SCREW, TERMINAL BLOCK TO FLYWHEEL HOUSING (1")
    SCREW, TERMINAL BLOCK TO FLYWHEEL HOUSING (1")
  • 30
    13-26992 LOCKWASHER, TERMINAL BLOCK SCREW
    LOCKWASHER, TERMINAL BLOCK SCREW
  • 31
    11-24652 NUT, TERMINAL BLOCK SCREW
    NUT, TERMINAL BLOCK SCREW
  • 32
    10-38792 SCREW, LEAD TO TERMINAL BLOCK
    SCREW, LEAD TO TERMINAL BLOCK
