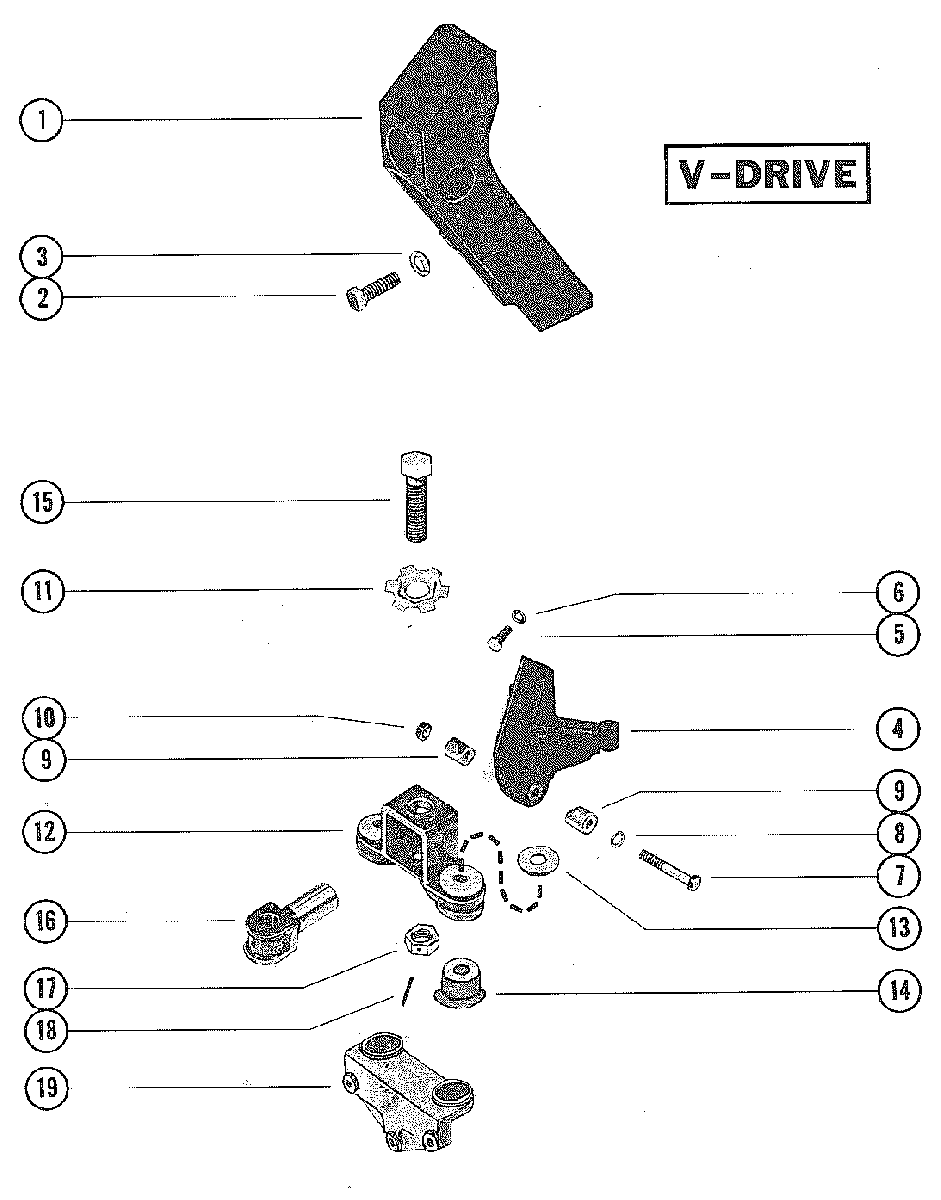

TRANSMISSION AND ENGINE MOUNTING (V-DRIVE) для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299

  • №
    Артикул
    Название
  • 1
    62285 BRACKET, MOUNTING (REAR)
    BRACKET, MOUNTING (REAR)
  • 2
    10-47462 SCREW, MOUNTING BRACKET TO TRANSMISSION(1 1/4")
    SCREW, MOUNTING BRACKET TO TRANSMISSION(1 1/4")
  • 3
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 4
    61815 BRACKET, MOUNTING (FRONT)
    BRACKET, MOUNTING (FRONT)
  • 5
    10-47724 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3")
    SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3")
  • 6
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    10-47654 SCREW, CLAMP-ADJUSTING TRUNNION (2 3/4")
    SCREW, CLAMP-ADJUSTING TRUNNION (2 3/4")
  • 8
    13-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
    LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
  • 9
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 10
    11-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREW
    NUT, CLAMP ADJUSTING TRUNNION SCREW
  • 11
    14-48467 TAB WASHER, ADJUSTING TRUNNION SCREW
    TAB WASHER, ADJUSTING TRUNNION SCREW
  • 12
    52139A4 BRACKET ASSEMBLY, MOUNTING FRONT AND REAR
    BRACKET ASSEMBLY, MOUNTING FRONT AND REAR
  • 13
    12-48611 WASHER, MOUNTING BRACKET
    WASHER, MOUNTING BRACKET
  • 14
    47656 MOUNT, MOUNTING BRACKET
    MOUNT, MOUNTING BRACKET
  • 15
    10-52156 SCREW, ADJSUTING TRUNNION (4 1/2")
    SCREW, ADJSUTING TRUNNION (4 1/2")
  • 16
    47518 TRUNNION, ADJUSTING-MOUNTING BRACKET
    TRUNNION, ADJUSTING-MOUNTING BRACKET
  • 17
    11-47525 NUT, JAM-ADJUSTING TRUNNION SCREW
    NUT, JAM-ADJUSTING TRUNNION SCREW
  • 18
    17-22116 PIN,ROLL-JAM NUT
    PIN,ROLL-JAM NUT
  • 19
    62255 BRACKET, MOUNTING-ENGINE
    BRACKET, MOUNTING-ENGINE
  • --
    27-65577 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • --
    16-29208 STUD, CARBURETOR MOUNTING (2 1/8")
    STUD, CARBURETOR MOUNTING (2 1/8")
  • --
    16-30669 STUD, CARBURETOR MOUNTING (3 1/4")
    STUD, CARBURETOR MOUNTING (3 1/4")
  • --
    55241T GUAGE, OIL LEVEL(DIPSTICK)
    GUAGE, OIL LEVEL(DIPSTICK)
  • --
    60212A1 EXHAUST ELBOW RISER
    EXHAUST ELBOW RISER
  • --
    16-49545 STUD, EXHAUST ELBOW TO RISER (1 3/4")
    STUD, EXHAUST ELBOW TO RISER (1 3/4")
  • --
    22-328022 PLUG, EXHAUST ELBOW RISER
    PLUG, EXHAUST ELBOW RISER
  • --
    22-36305T ELBOW, EXHAUST RISER
    ELBOW, EXHAUST RISER
  • --
    16-60607 STUD, MANIFOLD TO RISER (2 1/4")
    STUD, MANIFOLD TO RISER (2 1/4")
  • --
    87917A3 NUT, RISER TO EXHASUT ELBOW STUD
    NUT, RISER TO EXHASUT ELBOW STUD
  • --
    13-35048 LOCKWASHER, RISER TO EXHAUST ELBOW STUD
    LOCKWASHER, RISER TO EXHAUST ELBOW STUD
  • --
    27-997772 GASKET, ELBOW TO RISER
    GASKET, ELBOW TO RISER
