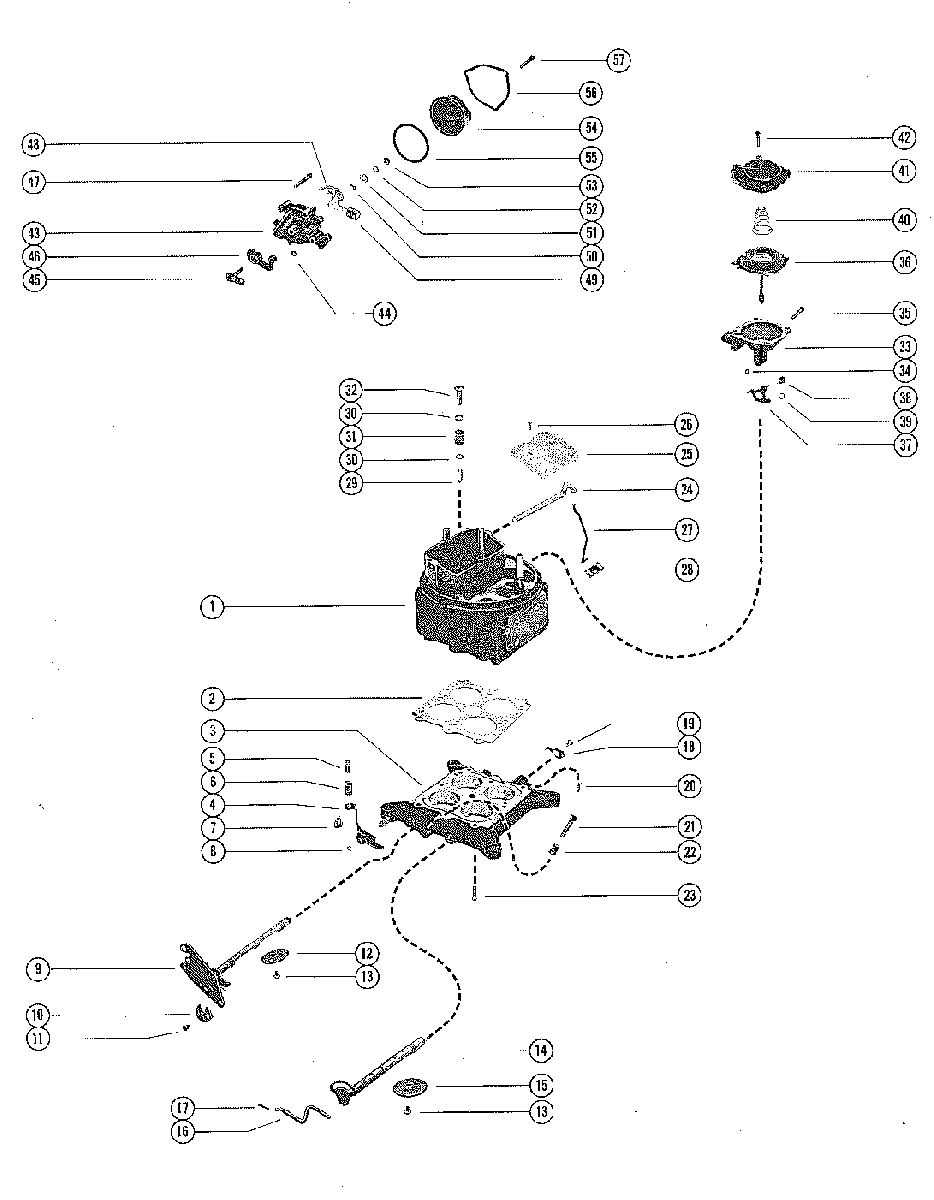

CARBURETOR ASSEMBLY (PAGE 1) для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299

  • №
    Артикул
    Название
  • 1
    1356-5169 CARBURETOR ASSEMBLY, COMPLETE (SEE NOTE)
    CARBURETOR ASSEMBLY, COMPLETE (SEE NOTE)
  • 2
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 3
    1396-5158 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 4
    1396-4155 LDVER, FUEL PUMP ACTUATING
    LDVER, FUEL PUMP ACTUATING
  • 5
    1396-4133 SCREW, PUMP LEVER ADJUSTING
    SCREW, PUMP LEVER ADJUSTING
  • 6
    1396-4105 SPRING, PUMP LEVER ADJUSTING SCREW
    SPRING, PUMP LEVER ADJUSTING SCREW
  • 7
    1396-4089 NUT, PUMP LEVER ADJUSTING SCREW
    NUT, PUMP LEVER ADJUSTING SCREW
  • 8
    90-8M0143356 RETAINER, PUMP LEVER
    RETAINER, PUMP LEVER
  • 9
    N.S.S. ROD, PRIMARY (NOT SOLD SEPARATELY)
    ROD, PRIMARY (NOT SOLD SEPARATELY)
  • 10
    1396-5166 CAM, FUEL PUMP
    CAM, FUEL PUMP
  • 11
    1396-4135 SCREW, PUMP CAM ATTACHING
    SCREW, PUMP CAM ATTACHING
  • 12
    1396-5157 VALVE, PRIMARY THROTTLE
    VALVE, PRIMARY THROTTLE
  • 13
    90-8M0143356 SCREW, THROTTLE VALVE ATTACHING
    SCREW, THROTTLE VALVE ATTACHING
  • 14
    N.S.S. ROD, SECONDARY (NOT SOLD SEPARATELY)
    ROD, SECONDARY (NOT SOLD SEPARATELY)
  • 15
    1396-5156 VALVE, SECONDARY THROTTLE
    VALVE, SECONDARY THROTTLE
  • 16
    1396-4146 ROD, SECONDARY CONNECTING
    ROD, SECONDARY CONNECTING
  • 17
    90-8M0143356 COTTER PIN, CONNECTING ROD
    COTTER PIN, CONNECTING ROD
  • 18
    1396-4144 LEVER, SECONDARY STOP
    LEVER, SECONDARY STOP
  • 19
    1396-4131 SCREW, SECONDARY STOP LEVER ATTACHING
    SCREW, SECONDARY STOP LEVER ATTACHING
  • 20
    1396-4127 SCREW, SECONDARY STOP
    SCREW, SECONDARY STOP
  • 21
    1396-4123 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 22
    1396-4102 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
  • 23
    1396-4128 SCREW, THROTTLE BOTY ATTACHING
    SCREW, THROTTLE BOTY ATTACHING
  • 24
    1396-4643 CHOKE SHAFT AND LEVER ASSEMBLY
    CHOKE SHAFT AND LEVER ASSEMBLY
  • 25
    1396-4116 VALVE, CHOKE
    VALVE, CHOKE
  • 26
    90-8M0143356 SCREW, CHOKE VALVE TO CHOKE SHAFT
    SCREW, CHOKE VALVE TO CHOKE SHAFT
  • 27
    1396-4145 LINK, CHOKE
    LINK, CHOKE
  • 28
    90-8M0143356 SEAL, CHOKE LINK
    SEAL, CHOKE LINK
  • 29
    90-8M0143356 VALVE, PUMP DISCHARGE
    VALVE, PUMP DISCHARGE
  • 30
    90-8M0143356 GASKET, DISCHARGE NOZZLE
    GASKET, DISCHARGE NOZZLE
  • 31
    90-8M0143356 NOZZLE, PUMP DISCHARGE
    NOZZLE, PUMP DISCHARGE
  • 32
    1396-4138 SCREW, DISCHARGE NOZZLE
    SCREW, DISCHARGE NOZZLE
  • 33
    1396-5167 HOUSING, SECONDARY DIAPHRAGM
    HOUSING, SECONDARY DIAPHRAGM
  • 34
    90-8M0143356 GASKET, SECONDARY DIAPHRAGM HOUSING
    GASKET, SECONDARY DIAPHRAGM HOUSING
  • 35
    1396-4129 SCREW, SECONDARY DIAPHRAGM HOUSING ATTACHING
    SCREW, SECONDARY DIAPHRAGM HOUSING ATTACHING
  • 36
    90-8M0143356 DIAPHRAGM ASSEMBLY, SECONDARY
    DIAPHRAGM ASSEMBLY, SECONDARY
  • 37
    1396-4154 LEVER, SECONDARY DIAPHGRAGM
    LEVER, SECONDARY DIAPHGRAGM
  • 38
    1396-4131 SCREW, ADJUSTING - SECONDARY DIAPHRAGM LEVER
    SCREW, ADJUSTING - SECONDARY DIAPHRAGM LEVER
  • 39
    90-8M0143356 RETAINER, SECONDARY DIAPHRAGM LEVER
    RETAINER, SECONDARY DIAPHRAGM LEVER
  • 40
    1396-5165 SPRING, RETURN - SECONDARY DIAPHRAGM
    SPRING, RETURN - SECONDARY DIAPHRAGM
  • 41
    1396-4094 COVER, SECONDARY DIAPAHRAGM HOUSING
    COVER, SECONDARY DIAPAHRAGM HOUSING
  • 42
    1396-4124 SCREW, SECONDARY DIAPHRAGM COVER ATTACHING
    SCREW, SECONDARY DIAPHRAGM COVER ATTACHING
  • 43
    1396-4649 HOUSING ASSEMBLY, CHOKE
    HOUSING ASSEMBLY, CHOKE
  • 44
    90-8M0143356 GASKET, CHOKE HOUSING
    GASKET, CHOKE HOUSING
  • 45
    1396-4119 SHAFT ASSEMBLY, CHOKE HOUSING
    SHAFT ASSEMBLY, CHOKE HOUSING
  • 46
    1396-4118 LEVER, PICK-UP - FAST IDLE
    LEVER, PICK-UP - FAST IDLE
  • 47
    1396-4130 SCREW, CHOKE HOUSING ATTACHING
    SCREW, CHOKE HOUSING ATTACHING
  • 48
    1396-4120 LEVER, CHOKE THERMOSTAT
    LEVER, CHOKE THERMOSTAT
  • 49
    1396-4121 LINK AND PISTON ASSEMBLY
    LINK AND PISTON ASSEMBLY
  • 50
    90-8M0143356 RETAINER, CHOKE LEVER
    RETAINER, CHOKE LEVER
  • 51
    1396-4142 SPACER, CHOKE LEVER
    SPACER, CHOKE LEVER
  • 52
    1396-4147 LOCKWASHER, CHOKE LEVER
    LOCKWASHER, CHOKE LEVER
  • 53
    1396-4141 NUT, CHOKE LEVER
    NUT, CHOKE LEVER
  • 54
    1396-4148 HOUSING ASSEMBLY, THERMOSTAT
    HOUSING ASSEMBLY, THERMOSTAT
  • 55
    90-8M0143356 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 56
    1396-4149 CLAMP, THERMOSTAT HOUSING
    CLAMP, THERMOSTAT HOUSING
  • 57
    1396-4122 SCREW, THERMOSTAT HOUSING ATTACHING
    SCREW, THERMOSTAT HOUSING ATTACHING
