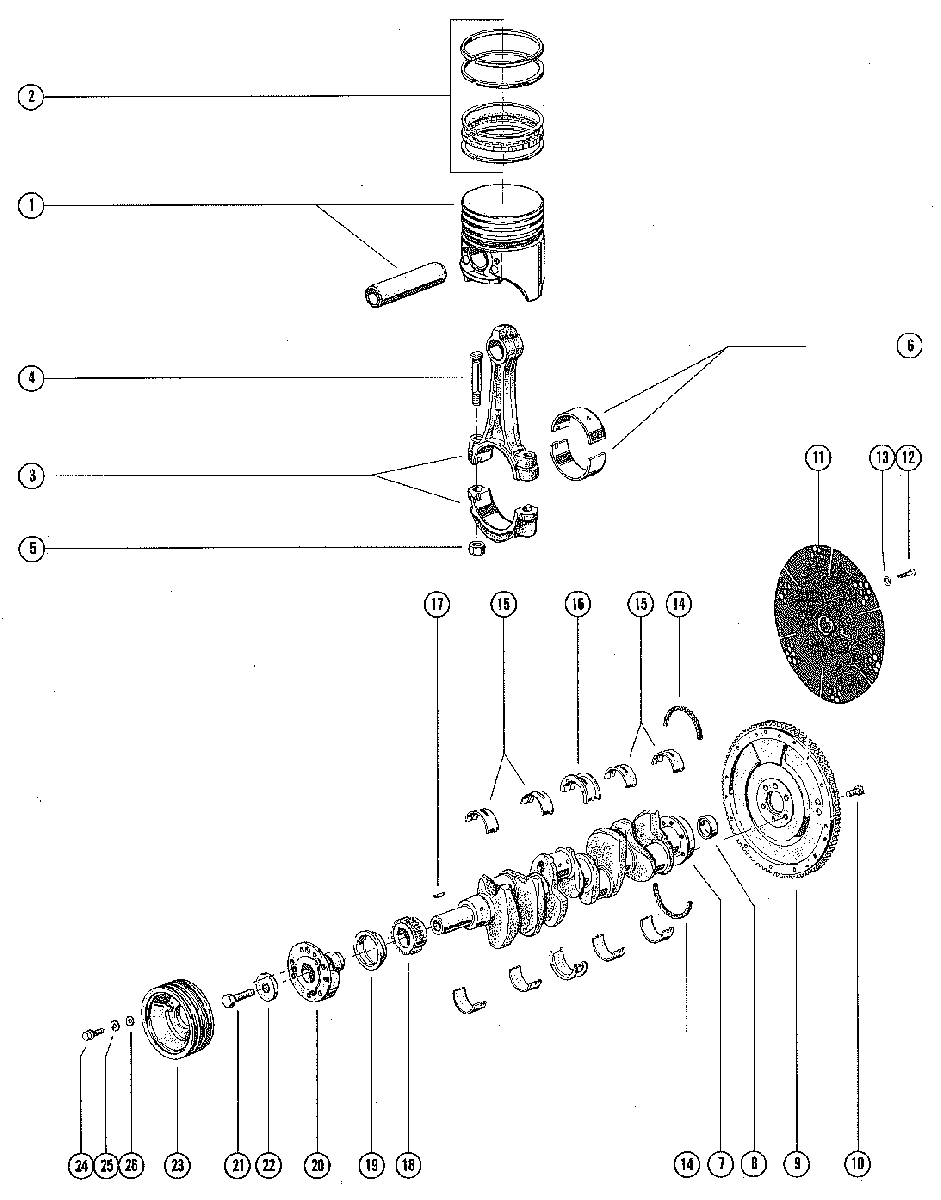

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299

  • №
    Артикул
    Название
  • 1
    749-5101 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
  • 1
    749-5102 PISTON AND PISTON PIN ASSEMBLY (.003 OS)
    USE STANDARD RING
    PISTON AND PISTON PIN ASSEMBLY (.003 OS)
    USE STANDARD RING
  • 1
    749-5103 PISTON AND PISTON PIN ASSEMBLY (.020 OS)
    PISTON AND PISTON PIN ASSEMBLY (.020 OS)
  • 2
    39-56114 RING ASSEMBLY, PISTON (STANDARD)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
    RING ASSEMBLY, PISTON (STANDARD)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
  • 2
    39-56115 RING ASSEMBLY, PISTON (.020 OS)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
    RING ASSEMBLY, PISTON (.020 OS)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
  • 3
    623-5104 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 4
    10-64770 BOLT, CONNECTING ROD
    BOLT, CONNECTING ROD
  • 5
    11-64769 NUT, CONNECTING ROD BOLT
    NUT, CONNECTING ROD BOLT
  • 6
    23-85744 BEARING UNIT, CONNECTING ROD (STANDARD)
    BEARING UNIT, CONNECTING ROD (STANDARD)
  • 6
    23-85745 BEARING UNIT, CONNECTING ROD (.001 US)
    BEARING UNIT, CONNECTING ROD (.001 US)
  • 6
    23-64766 BEARING UNIT, CONNECTING ROD (.002 US)
    BEARING UNIT, CONNECTING ROD (.002 US)
  • 6
    23-85746 BEARING UNIT, CONNECTING ROD (.010 US)
    BEARING UNIT, CONNECTING ROD (.010 US)
  • 6
    23-85747 BEARING UNIT, CONNECTING ROD (.020 US)
    BEARING UNIT, CONNECTING ROD (.020 US)
  • 7
    446-5105 CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
    CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
  • 7
    446-5106 CRANKSHAFT (RIGHT HAND ROTATION)
    CRANKSHAFT (RIGHT HAND ROTATION)
  • 8
    23-55248 BEARING, CLUTCH PILOT
    BEARING, CLUTCH PILOT
  • 9
    238-4428 FLYWHEEL ASSEMBLY - 157 TEETH (STERN DRIVE)
    FLYWHEEL ASSEMBLY - 157 TEETH (STERN DRIVE)
  • 9
    238-4055 FLYWHEEL ASSEMBLY - 164 TEETH (INBOARD)
    FLYWHEEL ASSEMBLY - 164 TEETH (INBOARD)
  • 10
    10-60706 BOLT, FLYWHEEL TO CRANKSHAFT (15/16")
    BOLT, FLYWHEEL TO CRANKSHAFT (15/16")
  • 11
    98147A1 DRIVE PLATE, FLYWHEEL (STERN DRIVE)
    DRIVE PLATE, FLYWHEEL (STERN DRIVE)
  • 11
    47608A1 DRIVE PLATE, FLYWHEEL (INBOARD)
    DRIVE PLATE, FLYWHEEL (INBOARD)
  • 12
    10-56889 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 13
    13-26993 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 14
    26-64796 OIL SEAL, CRANKSHAFT REAR (LEFT HAND CRANKSHAFT ROTATION)
    OIL SEAL, CRANKSHAFT REAR (LEFT HAND CRANKSHAFT ROTATION)
  • 14
    26-64797 OIL SEAL, CRANKSHAFT REAR (RIGHT HAND CRANKSHAFT ROTATION)
    OIL SEAL, CRANKSHAFT REAR (RIGHT HAND CRANKSHAFT ROTATION)
  • 15
    23-85748 BEARING , CRANKSHAFT MAIN - (STANDARD)
    BEARING , CRANKSHAFT MAIN - (STANDARD)
  • 15
    23-64775 BEARING, CRANKSHAFT MAIN - (.002 US)
    BEARING, CRANKSHAFT MAIN - (.002 US)
  • 15
    23-85749 BEARING, CRANKSHAFT MAIN - (.010 US)
    BEARING, CRANKSHAFT MAIN - (.010 US)
  • 15
    23-85750 BEARING, CRANKSHAFT MAIN - (.020 US)
    BEARING, CRANKSHAFT MAIN - (.020 US)
  • 16
    23-85751 BEARING, CRANKSHAFT MAIN - CENTER (STANDARD)
    BEARING, CRANKSHAFT MAIN - CENTER (STANDARD)
  • 16
    23-64779 BEARING, CRANKSHAFT MAIN - CENTER (.002 US)
    BEARING, CRANKSHAFT MAIN - CENTER (.002 US)
  • 16
    23-85752 BEARING, CRANKSHAFT MAIN - CENTER (.010 US)
    BEARING, CRANKSHAFT MAIN - CENTER (.010 US)
  • 16
    23-85753 BEARING, CRANKSHAFT MAIN - CENTER (.020 US)
    BEARING, CRANKSHAFT MAIN - CENTER (.020 US)
  • 17
    28-64771 KEY, TIMING SPROCKET TO CRANKSHAFT
    KEY, TIMING SPROCKET TO CRANKSHAFT
  • 18
    43-56141 SPROCKET, CRANKSHAFT TIMING (21 TEETH)
    SPROCKET, CRANKSHAFT TIMING (21 TEETH)
  • 19
    56143 SLINGER, OIL - CRANKSHAFT
    SLINGER, OIL - CRANKSHAFT
  • 20
    64772 DAMPER ASSEMBLY, CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
    DAMPER ASSEMBLY, CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
  • 20
    64773 DAMPER ASSEMBLY, CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
    DAMPER ASSEMBLY, CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
  • 21
    10-60709 BOLT, DAMPER TO CRANKSHAFT (1 5/8")
    BOLT, DAMPER TO CRANKSHAFT (1 5/8")
  • 22
    12-56148 WASHER, DAMPER TO CRANKSHAFT BOLT
    WASHER, DAMPER TO CRANKSHAFT BOLT
  • 23
    56144 PULLEY, CRANKSHAFT
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
    PULLEY, CRANKSHAFT
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
  • 24
    10-21077 SCREW, PULLEY TO DAMPER
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
    SCREW, PULLEY TO DAMPER
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
  • 25
    13-35048 LOCKWAHSER, PULLEY SCREW
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
    LOCKWAHSER, PULLEY SCREW
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
  • 26
    12-20553 WAHSER, PULLEY SCREW
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
    WAHSER, PULLEY SCREW
    STERN DRIVE WITHOUT POWER STEERING AND INBOARD
