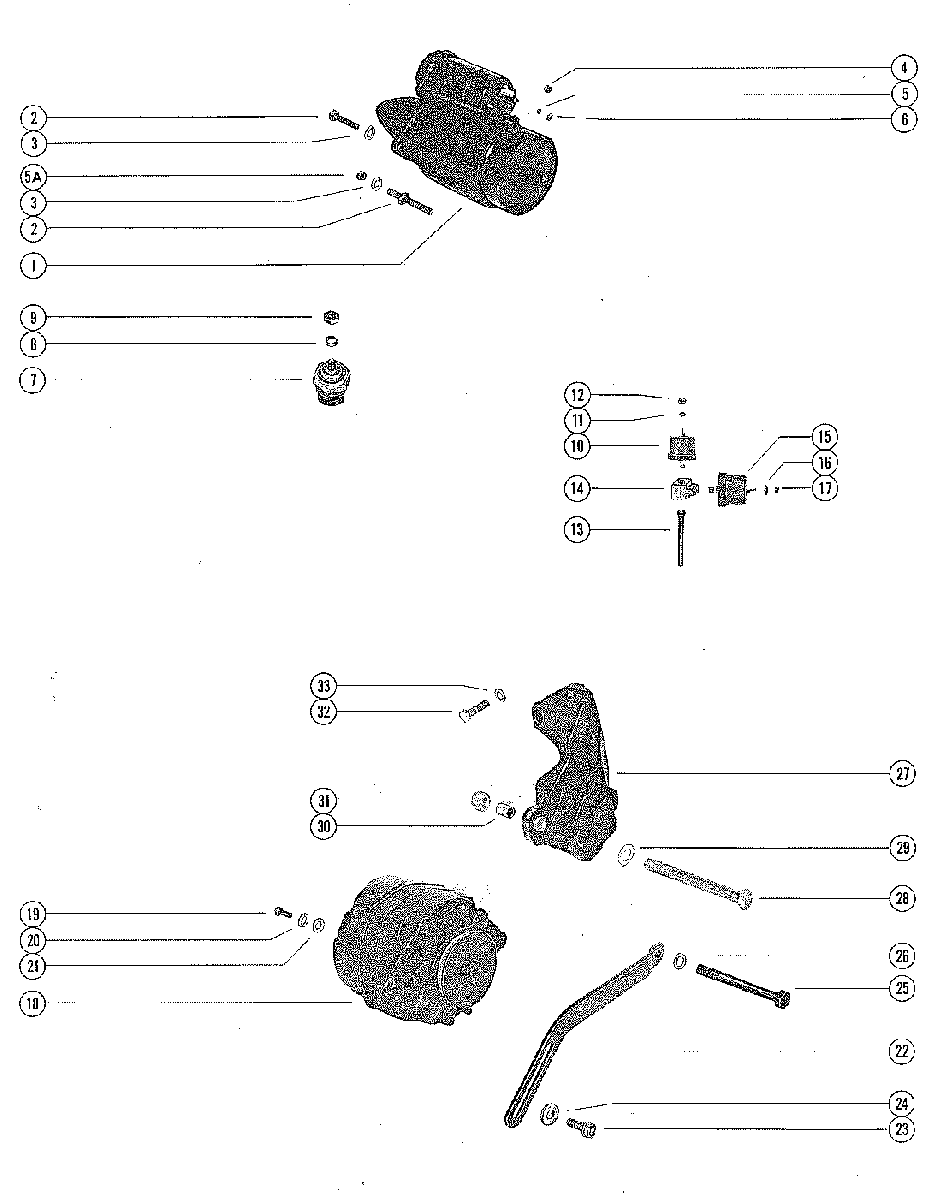

STARTER MOTOR AND ALTERNATOR для Mercruiser - 255 MIE FORD 351 V-8 1973-1974 3258728 THRU 4178299

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
    SEE NOTE INBOARD
    STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
    SEE NOTE INBOARD
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION) SEE
    SEE NOTE INBOARD
    STARTER MOTOR ASSEMBLY (RIGHT HAND CRANKSHAFT ROTATION) SEE
    SEE NOTE INBOARD
  • 2
    10-47462 SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4")
    INBOARD
    SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4")
    INBOARD
  • 3
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    INBOARD
    LOCKWASHER, STARTER MOTOR SCREW
    INBOARD
  • 4
    11-32219 NUT, STARTER TERMIINAL (3/8")
    INBOARD
    NUT, STARTER TERMIINAL (3/8")
    INBOARD
  • 5
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    INBOARD
    LOCKWASHER, STARTER TERMINAL (#8)
    INBOARD
  • 6
    11-26419 NUT, STARTER TERNIMAL (#8)
    INBOARD
    NUT, STARTER TERNIMAL (#8)
    INBOARD
  • 1
    50-12872 STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
    SEE NOTE STERN DRIVE
    STARTER MOTOR ASSEMBLY (LEFT HAND CRANKSHAFT ROTATION)
    SEE NOTE STERN DRIVE
  • 2
    10-37612 SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4") - LOWER
    STERN DRIVE
    SCREW, STARTER MOTOR TO FLYWHEEL HOUSING (1 1/4") - LOWER
    STERN DRIVE
  • 2
    16-861316 STUD, STARTER MOTOR TO FLYWHEEL HOUSING - UPPER
    STERN DRIVE
    STUD, STARTER MOTOR TO FLYWHEEL HOUSING - UPPER
    STERN DRIVE
  • 3
    13-35048 LOCKWASHER, STARTER MOTOR SCREW AND STUD
    STERN DRIVE
    LOCKWASHER, STARTER MOTOR SCREW AND STUD
    STERN DRIVE
  • 5
    13-26993 LOCKWASHER, STARTER MOTOR TERMINAL
    STERN DRIVE
    LOCKWASHER, STARTER MOTOR TERMINAL
    STERN DRIVE
  • 5A
    11-32219 NUT, STARTER MOTOR STUD
    STERN DRIVE
    NUT, STARTER MOTOR STUD
    STERN DRIVE
  • 6
    11-21908 NUT, STARTER MOTOR TERMINAL
    STERN DRIVE
    NUT, STARTER MOTOR TERMINAL
    STERN DRIVE
  • 7
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 8
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 9
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 10
    8M0068784 OIL PRESSURE SENDER ASSEMBLY (FOR GAUGE)
    OIL PRESSURE SENDER ASSEMBLY (FOR GAUGE)
  • 11
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 12
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 13
    22-54522 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 14
    22-56770 COUPLING, OIL PRESSURE SENDER
    SERIAL 00000000-03415950
    COUPLING, OIL PRESSURE SENDER
    SERIAL 00000000-03415950
  • 14
    22-64485 FITTING, TEE - OIL PRESSURE SENDER
    SERIAL 33523621-09999999
    FITTING, TEE - OIL PRESSURE SENDER
    SERIAL 33523621-09999999
  • 15
    87-805605A1 SWITCH, OIL PRESSURE (FOR IGNITION LIGHT)
    SERIAL 33523621-09999999
    SWITCH, OIL PRESSURE (FOR IGNITION LIGHT)
    SERIAL 33523621-09999999
  • 16
    12-20878 WASHER, OIL PRESSURE SWITCH TERMINAL (#10)
    SERIAL 33523621-09999999
    WASHER, OIL PRESSURE SWITCH TERMINAL (#10)
    SERIAL 33523621-09999999
  • 17
    11-68219 NUT, OIL PRESSURE SWITCH TERMINAL (#10)
    SERIAL 33523621-09999999
    NUT, OIL PRESSURE SWITCH TERMINAL (#10)
    SERIAL 33523621-09999999
  • 18
    78403A2 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 19
    10-20055 SCREW, WIRING HARNESS TO ALTERNATOR (3/8")
    SCREW, WIRING HARNESS TO ALTERNATOR (3/8")
  • 20
    13-26996 LOCKWASHER, WIRING HARNESS SCREW
    LOCKWASHER, WIRING HARNESS SCREW
  • 21
    12-30164 WASHER, WIRING HARNESS SCREW
    WASHER, WIRING HARNESS SCREW
  • 22
    54479 BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 23
    10-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
  • 24
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 25
    10-55300 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4")
    SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4")
  • 26
    13-39107 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 27
    61859 BRACKET, ALTERNATOR MOUNTING (STERN DRIVE)
    BRACKET, ALTERNATOR MOUNTING (STERN DRIVE)
  • 27
    61859 BRACKET, ALTERNATOR MOUNTING (INBOARD)
    BRACKET, ALTERNATOR MOUNTING (INBOARD)
  • 28
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET
  • 29
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 30
    23-63764 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 31
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
  • 32
    10-37612 SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4")
    SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4")
  • 33
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
