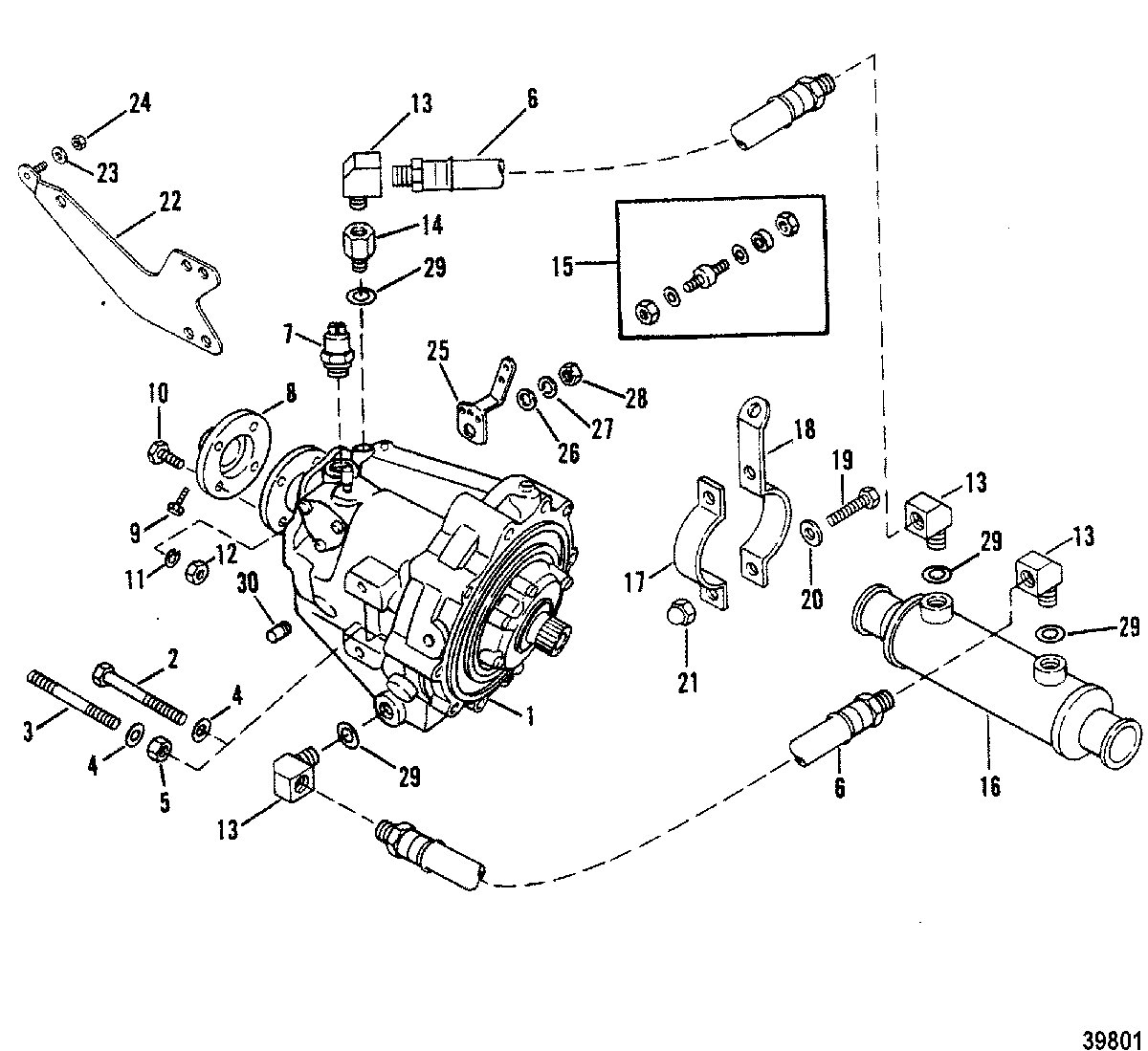

TRANSMISSION AND RELATED PARTS(IN-LINE) для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1981-1986 5907058 THRU 0B522505
-
№АртикулНазвание
-
147805A7 TRANSMISSION ASSEMBLY (DIRECT DRIVE)
(47805)TRANSMISSION ASSEMBLY (DIRECT DRIVE)
(47805) -
147806R07 TRANSMISSION (1.523:1 REDUCTION)
(47806)TRANSMISSION (1.523:1 REDUCTION)
(47806) -
147807A7 TRANSMISSION (1.909:1 REDUCTION)
(47807)TRANSMISSION (1.909:1 REDUCTION)
(47807) -
147808R07 TRANSMISSION (2.57:1 REDUCTION)
(47808)TRANSMISSION (2.57:1 REDUCTION)
(47808) -
147809A7 TRANSMISSION (2.909:1 REDUCTION)
(47809)TRANSMISSION (2.909:1 REDUCTION)
(47809) -
210-60179 SCREW, (.437-14 x 3.500), TRANSMISSION
(47805)SCREW, (.437-14 x 3.500), TRANSMISSION
(47805) -
210-60179 SCREW, (.437-14 x 3.500), TRANSMISSION
(47806, 47807, 47808, 47809)SCREW, (.437-14 x 3.500), TRANSMISSION
(47806, 47807, 47808, 47809) -
316-57921 STUD, (.437-14/.437-20 x 4.00), TRANSMISSION
(47805)STUD, (.437-14/.437-20 x 4.00), TRANSMISSION
(47805) -
413-32993 LOCKWASHER, (.437), SCREW AND STUDLOCKWASHER, (.437), SCREW AND STUD
-
511-22024 NUT, (.437-14), STUD
(47805)NUT, (.437-14), STUD
(47805) -
632-4751613 HOSE, TRANSMISSION/COOLER 44"HOSE, TRANSMISSION/COOLER 44"
-
632-4751613 HOSE, (49.00 Inches), TRANSMISSION/COOLERHOSE, (49.00 Inches), TRANSMISSION/COOLER
-
787-88031 SWITCH ASSEMBLY, TEMPERATURESWITCH ASSEMBLY, TEMPERATURE
-
887917A1 FLANGE ASSEMBLY, (4.00 x 1.00)
(47805)FLANGE ASSEMBLY, (4.00 x 1.00)
(47805) -
887917A2 FLANGE ASSEMBLY (1-1/8") SEE NOTE 1
(47805)FLANGE ASSEMBLY (1-1/8") SEE NOTE 1
(47805) -
887917A3 FLANGE ASSEMBLY (1-1/4") SEE NOTE 1
(47805)FLANGE ASSEMBLY (1-1/4") SEE NOTE 1
(47805) -
848384A1 FLANGE ASSEMBLY (1-3/8") SEE NOTE 1
(47805)FLANGE ASSEMBLY (1-3/8") SEE NOTE 1
(47805) -
887917A5 FLANGE ASSEMBLY (1-1/2") SEE NOTE 1
(47805)FLANGE ASSEMBLY (1-1/2") SEE NOTE 1
(47805) -
879476A1 FLANGE ASSEMBLY, (5.00 x 1.00), SEE NOTE 2
(47806, 47807, 47808, 47809)FLANGE ASSEMBLY, (5.00 x 1.00), SEE NOTE 2
(47806, 47807, 47808, 47809) -
879476A2 FLANGE ASSEMBLY, (5.00 x 1.125), SEE NOTE 2
(47806, 47807, 47808, 47809)FLANGE ASSEMBLY, (5.00 x 1.125), SEE NOTE 2
(47806, 47807, 47808, 47809) -
879476A3 FLANGE ASSEMBLY, (5.00 x 1.25), SEE NOTE 2
(47806, 47807, 47808, 47809)FLANGE ASSEMBLY, (5.00 x 1.25), SEE NOTE 2
(47806, 47807, 47808, 47809) -
879476A4 FLANGE ASSEMBLY, (5.00 x 1.375), SEE NOTE 2
(47806, 47807, 47808, 47809)FLANGE ASSEMBLY, (5.00 x 1.375), SEE NOTE 2
(47806, 47807, 47808, 47809) -
879476A5 FLANGE ASSEMBLY, (5.00 x 1.50), SEE NOTE 2
(47806, 47807, 47808, 47809)FLANGE ASSEMBLY, (5.00 x 1.50), SEE NOTE 2
(47806, 47807, 47808, 47809) -
910-60168 SCREW, FALNGE (1-1/2") SEE NOTE 1 & 2
(47805)SCREW, FALNGE (1-1/2") SEE NOTE 1 & 2
(47805) -
910-60171 SCREW, (.375-16 x 1.250), FLANGE (1-1/4") SEE NOTE 1 & 2
(47806, 47807, 47808, 47809)SCREW, (.375-16 x 1.250), FLANGE (1-1/4") SEE NOTE 1 & 2
(47806, 47807, 47808, 47809) -
910-60171 SCREW, (1 In.), FLANGE (1") SEE NOTE 1 & 2
(47806, 47807, 47808, 47809)SCREW, (1 In.), FLANGE (1") SEE NOTE 1 & 2
(47806, 47807, 47808, 47809) -
910-60169 SCREW, (.375-16 x .750), FLANGE (3/4") SEE NOTE 1 & 2
(47805)SCREW, (.375-16 x .750), FLANGE (3/4") SEE NOTE 1 & 2
(47805) -
1010-37909 SCREW, (.375-24 x 1.125), FLANGE
(47805)SCREW, (.375-24 x 1.125), FLANGE
(47805) -
1010-60106 SCREW, (1.25 In), FLANGE (1-1/4")
(47806, 47807, 47808, 47809)SCREW, (1.25 In), FLANGE (1-1/4")
(47806, 47807, 47808, 47809) -
1113-35048 LOCKWASHER, (.375), FALNGE SCREW
(47805)LOCKWASHER, (.375), FALNGE SCREW
(47805) -
1113-32993 LOCKWASHER, (.437), FLANGE SCREW
(47806, 47807, 47808, 47809)LOCKWASHER, (.437), FLANGE SCREW
(47806, 47807, 47808, 47809) -
1211-46335 NUT, FLANGE SCREW
(47805)NUT, FLANGE SCREW
(47805) -
1211-22024 NUT, (.437-14), FLANGE SCREW
(47806, 47807, 47808, 47809)NUT, (.437-14), FLANGE SCREW
(47806, 47807, 47808, 47809) -
1322-63835 ELBOW, 45 Degree, HOSE
(47806, 47807, 47808, 47809)ELBOW, 45 Degree, HOSE
(47806, 47807, 47808, 47809) -
1322-47629 ELBOW, 90 Degree, HOSE
(47805)ELBOW, 90 Degree, HOSE
(47805) -
1322-47629 ELBOW, 90 Degree, HOSE
(47806, 47807, 47808, 47809)ELBOW, 90 Degree, HOSE
(47806, 47807, 47808, 47809) -
1422-88517 FITTING, Reducing, ELBOW
(47806, 47807, 47808, 47809)FITTING, Reducing, ELBOW
(47806, 47807, 47808, 47809) -
1516-97477A3 STUD KIT, CABLESTUD KIT, CABLE
-
1663832A1 COOLER, TRANSMISSIONCOOLER, TRANSMISSION
-
1756328A1 BRACKET, OIL COOLER (SHORT)BRACKET, OIL COOLER (SHORT)
-
1863820T BRACKET, OIL COOLER (LONG)BRACKET, OIL COOLER (LONG)
-
1910-60300 SCREW, (.250-28 x .750), OIL COOLER BRACKETSCREW, (.250-28 x .750), OIL COOLER BRACKET
-
2012-25909 WASHER, (.406 x .812 x .065), OIL COOLER BRACKET SCREWWASHER, (.406 x .812 x .065), OIL COOLER BRACKET SCREW
-
2111-30506 NUT, (.250-28), OIL COOLER BRACKET SCREWNUT, (.250-28), OIL COOLER BRACKET SCREW
-
2293141A7 BRACKET ASSEMBLY, SHIFT CABLEBRACKET ASSEMBLY, SHIFT CABLE
-
2312-20533 WASHER, SHIFT CABLE STUDWASHER, SHIFT CABLE STUD
-
2411-8267089 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
2543325 LEVER, TRANSMISSIONLEVER, TRANSMISSION
-
2612-20722 WASHER, (.328 x .625 x .060), SHIFT LEVERWASHER, (.328 x .625 x .060), SHIFT LEVER
-
2713-26993 LOCKWASHER, (.312), SHIFT LEVERLOCKWASHER, (.312), SHIFT LEVER
-
2811-22053 NUT, (.312-24), SHIFT LEVERNUT, (.312-24), SHIFT LEVER
-
2912-36533 WASHER, (.328 x .562 x .0312) Copper, ELBOWWASHER, (.328 x .562 x .0312) Copper, ELBOW
-
3047613 SWITCH, NEUTRAL STARTSWITCH, NEUTRAL START
