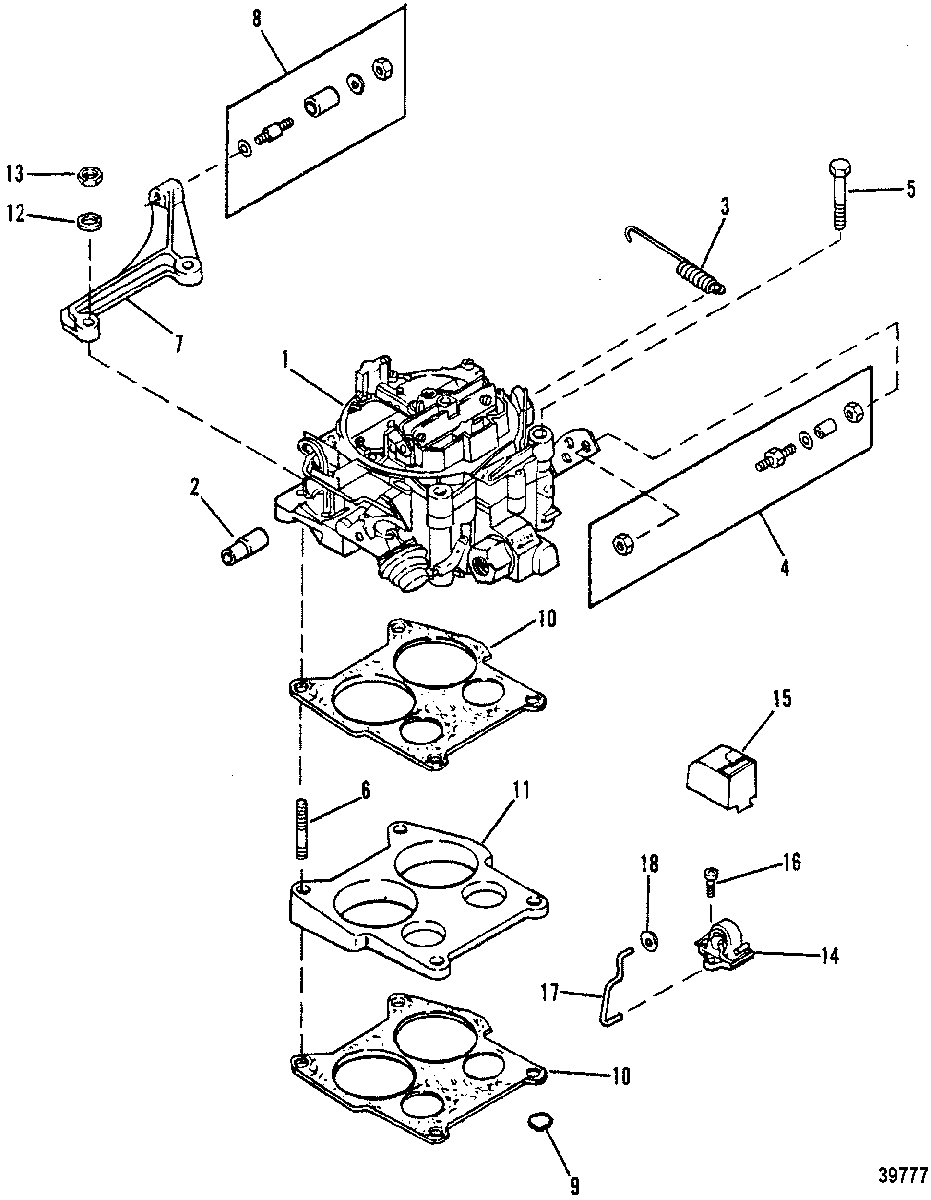

CARBURETOR AND LINKAGE для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1981-1986 5907058 THRU 0B522505

  • №
    Артикул
    Название
  • 1
    1347-804623R02 CARBURETOR ASSEMBLY (230)
    CARBURETOR ASSEMBLY (230)
  • 1
    1347-804624R02 CARBURETOR ASSEMBLY (260)
    CARBURETOR ASSEMBLY (260)
  • 2
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 3
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 4
    16-97477A3 STUD KIT, THROTTLE CABLE
    STUD KIT, THROTTLE CABLE
  • 5
    10-74822 SCREW, (3.5 In.), CARBURETOR (3-1/2") HORIZONTAL MOUNTING
    SCREW, (3.5 In.), CARBURETOR (3-1/2") HORIZONTAL MOUNTING
  • 6
    16-63332 STUD, (.312 x 1.2812), CARBURETOR
    STUD, (.312 x 1.2812), CARBURETOR
  • 6
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8") HORIZONTAL MOUNTING
    STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8") HORIZONTAL MOUNTING
  • 6
    16-53724 STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4")
    STUD, (5/16 x 1-3/4), CARBURETOR (1-3/4")
  • 6
    16-97941 STUD, CARBURETOR (2")
    STUD, CARBURETOR (2")
  • 6
    16-97940 STUD, CARBURETOR (2-1/8") HORIZONTAL MOUNTING
    STUD, CARBURETOR (2-1/8") HORIZONTAL MOUNTING
  • 6
    16-53722 STUD, (5/16 x 4-3/8), CARBURETOR (4-3/8")
    STUD, (5/16 x 4-3/8), CARBURETOR (4-3/8")
  • 7
    49929 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 7
    41329A5 BRACKET, THROTTLE CABLE (HORIZONTAL MOUNTING)
    BRACKET, THROTTLE CABLE (HORIZONTAL MOUNTING)
  • 8
    16-73563A1 STUD KIT, THROTTLE CABLE
    STUD KIT, THROTTLE CABLE
  • 9
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 10
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 11
    53513A4 WEDGE, CARBURETOR
    WEDGE, CARBURETOR
  • 12
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 13
    11-862902 NUT, (.9375-24), CARBURETOR STUD
    NUT, (.9375-24), CARBURETOR STUD
  • 14
    71464A01 CHOKE, AUTOMATIC-CARBURETOR
    CHOKE, AUTOMATIC-CARBURETOR
  • 15
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 16
    10-69235 SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
    SCREW, (5/8), AUTOMATIC CHOKE THERMOSTAT
  • 17
    60915 ROD, CHOKE
    ROD, CHOKE
  • 17
    61112 ROD, CHOKE (HORIZONTAL MOUNTING)
    ROD, CHOKE (HORIZONTAL MOUNTING)
  • 18
    54-48376 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • 18
    54-59989 CLIP, AUTOMATIC CHOKE ROD (HORIZONTAL MOUNTING)
    CLIP, AUTOMATIC CHOKE ROD (HORIZONTAL MOUNTING)
