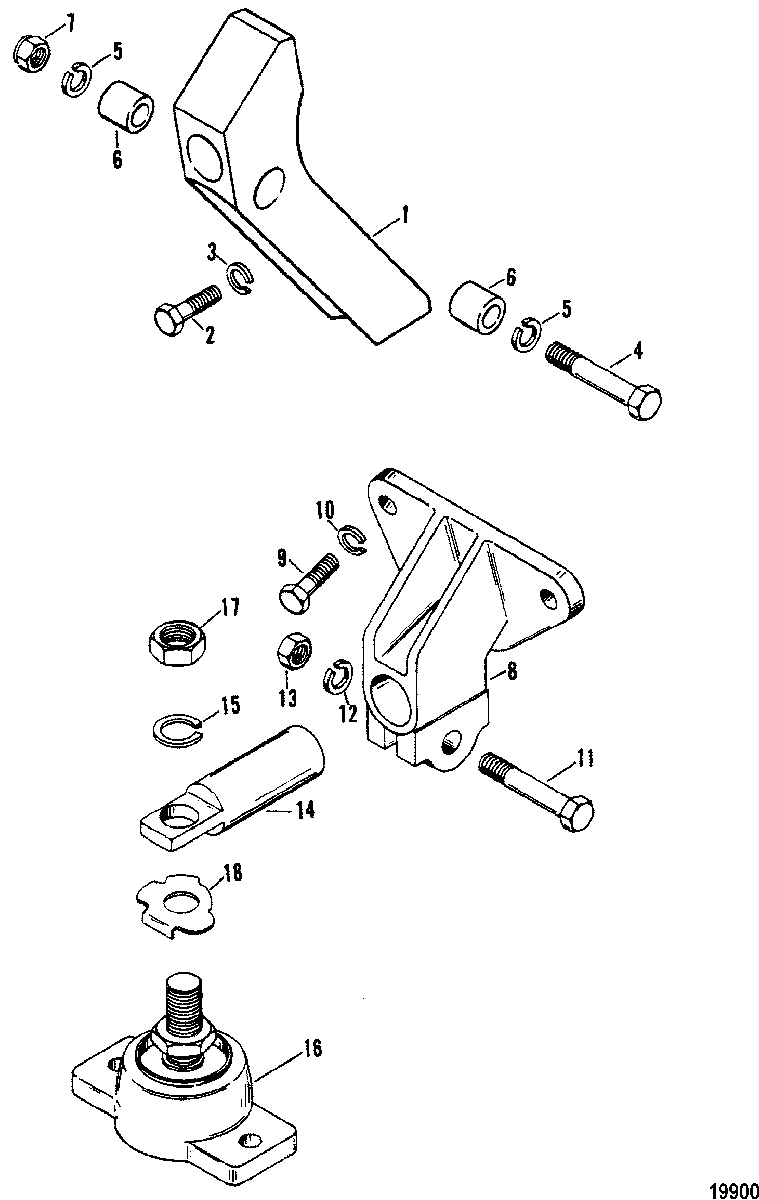

TRANSMISSION AND ENGINE MOUNTING(V-DRIVE) для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1981-1986 5907058 THRU 0B522505

№

Артикул

Название
1

62285 BRACKET, MOUNTING (REAR)

BRACKET, MOUNTING (REAR)
1

52158A20 BRACKET, MOUNTING (REAR)
(REMOTE MOUNTING)

BRACKET, MOUNTING (REAR)
(REMOTE MOUNTING)
2

10-47462 SCREW, (.437-14 x 1.250), MOUNTING BRACKET TO TRANSMISSION (1-1/4")

SCREW, (.437-14 x 1.250), MOUNTING BRACKET TO TRANSMISSION (1-1/4")
3

13-32993 LOCKWASHER, (.437), MOUNTING BRACKET SCREW

LOCKWASHER, (.437), MOUNTING BRACKET SCREW
4

10-47654 SCREW, (.437-14 x 2.750), CLAMPING-MOUNTING BRACKET

SCREW, (.437-14 x 2.750), CLAMPING-MOUNTING BRACKET
5

13-32993 LOCKWASHER, (.437), CLAMPING SCREW

LOCKWASHER, (.437), CLAMPING SCREW
6

54-47528 CLAMP, ADJUSTING TRUNNION SCREW

CLAMP, ADJUSTING TRUNNION SCREW
7

11-82670814 NUT, (.437-14), SCREW CLAMPING

NUT, (.437-14), SCREW CLAMPING
8

71128A2 BRACKET, MOUNTING - ENGINE (FRONT)

BRACKET, MOUNTING - ENGINE (FRONT)
9

10-68101 SCREW, (.375-16 x 1.375), MOUNTING BRACKET

SCREW, (.375-16 x 1.375), MOUNTING BRACKET
9

10-34354 SCREW, (.375-16 x 1.50), MOUNTING BRACKET

SCREW, (.375-16 x 1.50), MOUNTING BRACKET
10

13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW

LOCKWASHER, (.375), MOUNTING BRACKET SCREW
11

10-37269 SCREW, (.437-14 x 2.00), CLAMPING-MOUNTING BRACKET

SCREW, (.437-14 x 2.00), CLAMPING-MOUNTING BRACKET
12

13-32993 LOCKWASHER, (.437), CLAMPING SCREW

LOCKWASHER, (.437), CLAMPING SCREW
13

11-82670814 NUT, (.437-14), CLAMPING SCREW

NUT, (.437-14), CLAMPING SCREW
14

66166A4 TRUNNION, ADJUSTING-MOUNTING BRACKET

TRUNNION, ADJUSTING-MOUNTING BRACKET
15

13-68102 LOCKWASHER, (.750), MOUNTING BRACKET

LOCKWASHER, (.750), MOUNTING BRACKET
16

66284A2 BASE ASSEMBLY, ENGINE MOUNT

BASE ASSEMBLY, ENGINE MOUNT
17

11-20739 NUT, (.750-16), JAM-ENGINE MOUNT BASE

NUT, (.750-16), JAM-ENGINE MOUNT BASE
18

14-66658 TAB WASHER, ENGINE MOUNT BASE

TAB WASHER, ENGINE MOUNT BASE
