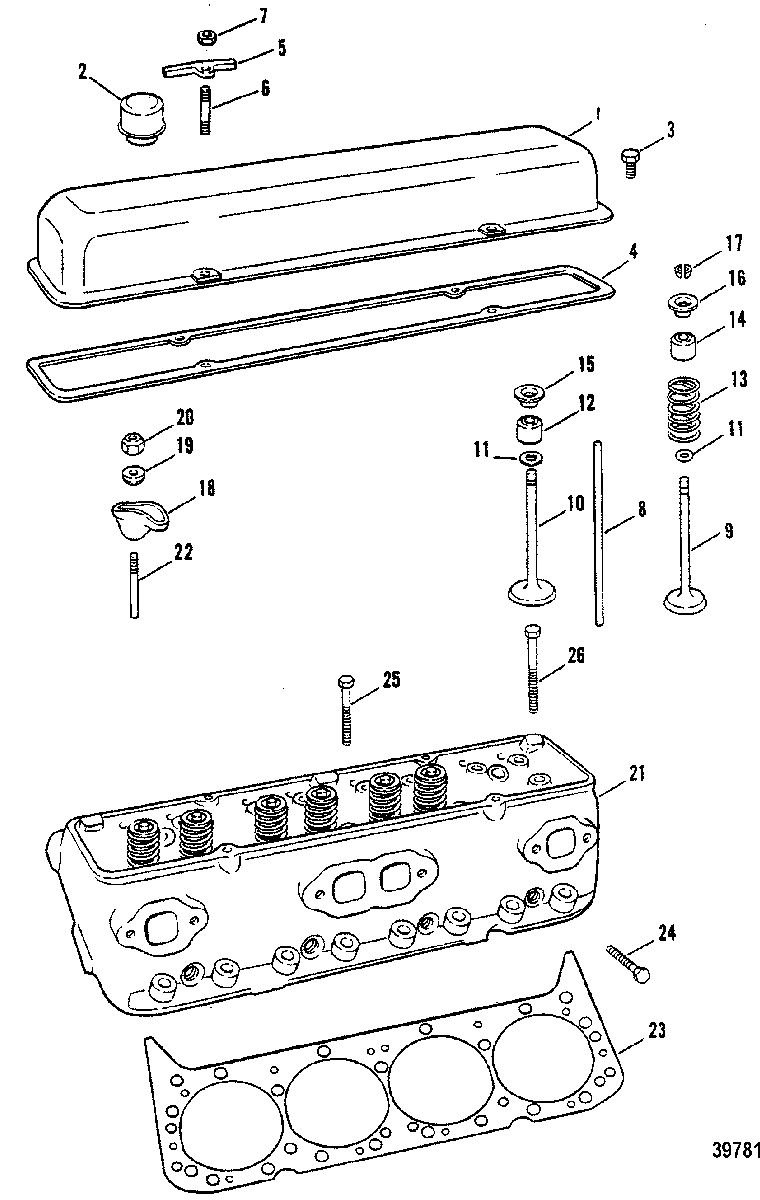

CYLINDER HEAD AND ROCKER COVER(260) для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1981-1986 5907058 THRU 0B522505

  • №
    Артикул
    Название
  • 1
    79961T1 COVER, ROCKER
    COVER, ROCKER
  • 2
    17345 CAP ASSEMBLY, Oil Filler
    CAP ASSEMBLY, Oil Filler
  • 3
    10-8M0040582 SCREW, ROCKER COVER
    Use Without Reinforcement
    SCREW, ROCKER COVER
    Use Without Reinforcement
  • 4
    27-11999 GASKET, ROCKER COVER
    Use Without Reinforcement
    GASKET, ROCKER COVER
    Use Without Reinforcement
  • 4
    27-11999 GASKET, ROCKER COVER
    Use With Reinforcement
    GASKET, ROCKER COVER
    Use With Reinforcement
  • 5
    11994 REINFORCEMENT, ROCKER COVER STUD
    Use With Reinforcement
    REINFORCEMENT, ROCKER COVER STUD
    Use With Reinforcement
  • 6
    16-11995 STUD, ROCKER COVER
    Use With Reinforcement
    STUD, ROCKER COVER
    Use With Reinforcement
  • 7
    11-11996 NUT, ROCKER COVER STUD
    Use With Reinforcement
    NUT, ROCKER COVER STUD
    Use With Reinforcement
  • 8
    99948 PUSH ROD, VALVE PUSH
    PUSH ROD, VALVE PUSH
  • 9
    87284 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 9
    883265 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 10
    97661 VALVE, Intake (STANDARD)
    VALVE, Intake (STANDARD)
  • 10
    97662 VALVE, Intake (.015 O.S.)
    VALVE, Intake (.015 O.S.)
  • 11
    26-34217 SEAL, VALVE (INLET AND EXHAUST)
    SEAL, VALVE (INLET AND EXHAUST)
  • 12
    26-8M0050563 SEAL, INLET VALVE
    SEAL, INLET VALVE
  • 13
    24-48347 SPRING, VALVE (INLET AND EXHAUST)
    SPRING, VALVE (INLET AND EXHAUST)
  • 14
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 15
    48348 CAP, INLET VALVE
    CAP, INLET VALVE
  • 16
    11965 ROTATOR, VALVE SPRING-EXHAUST VALVE
    ROTATOR, VALVE SPRING-EXHAUST VALVE
  • 17
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 18
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 19
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 20
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 21
    938-7499 CYLINDER HEAD ASSEMLBY
    CYLINDER HEAD ASSEMLBY
  • 22
    16-34522 STUD, ROCKER VALVE ARM (.003 O.S.)
    STUD, ROCKER VALVE ARM (.003 O.S.)
  • 22
    16-34521 STUD, ROCKER VALVE ARM (.013 O.S.)
    STUD, ROCKER VALVE ARM (.013 O.S.)
  • 23
    27-75611001 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 24
    10-11968 SCREW, (.437-14 x 1.750), CYLINDER HEAD TO CYLINDER BLOCK (1-3/4")
    SCREW, (.437-14 x 1.750), CYLINDER HEAD TO CYLINDER BLOCK (1-3/4")
  • 25
    10-119671 BOLT, (3 In.), CYLINDER HEAD TO CYLINDER BLOCK (3")
    BOLT, (3 In.), CYLINDER HEAD TO CYLINDER BLOCK (3")
  • 26
    10-11966 SCREW, (.437-14 x 3.750), CYLINDER HEAD TO CYLINDER BLOCK (3-3/4")
    SCREW, (.437-14 x 3.750), CYLINDER HEAD TO CYLINDER BLOCK (3-3/4")
