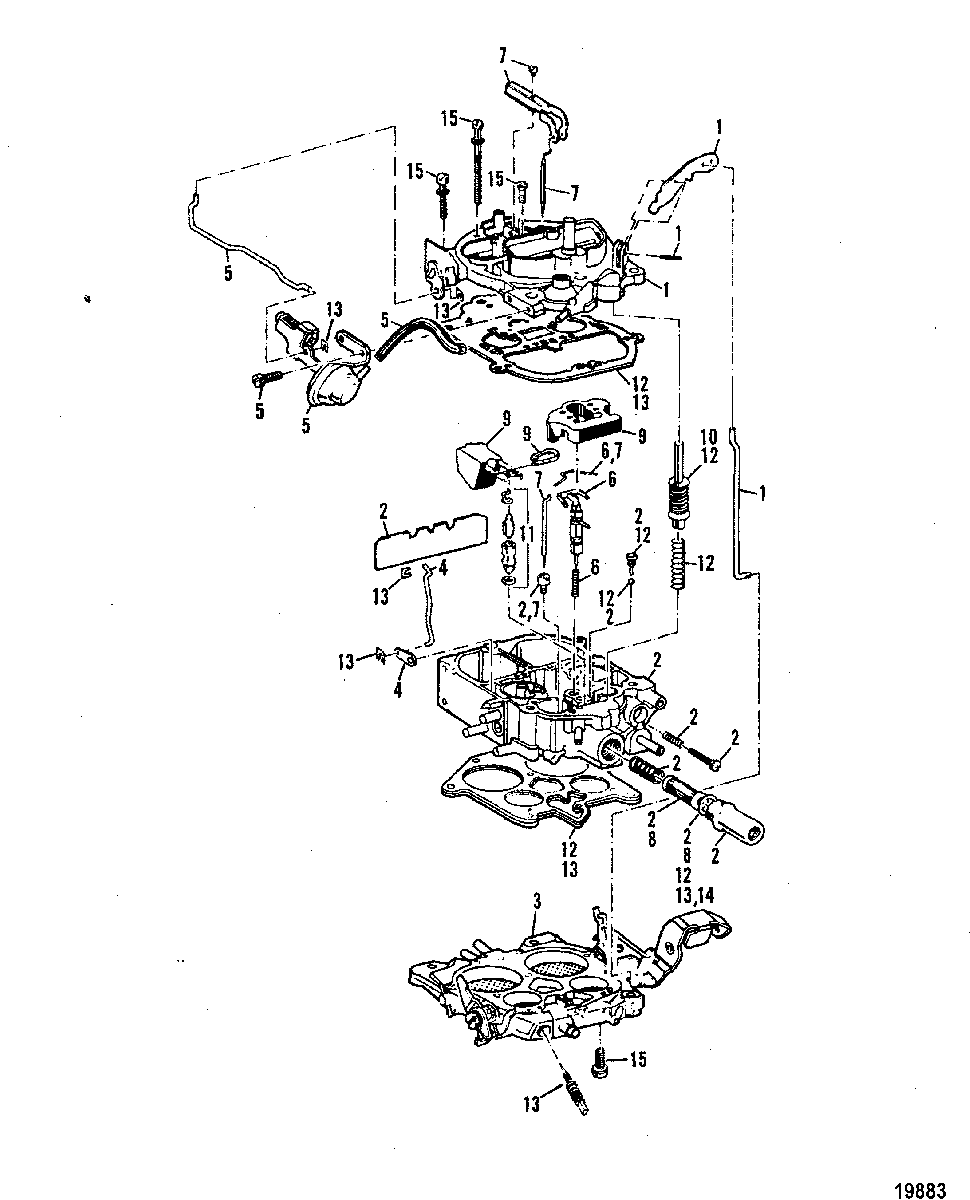

CARBURETOR(230) для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1981-1986 5907058 THRU 0B522505

№

Артикул

Название
-

1347-804623R02 CARBURETOR ASSEMBLY

CARBURETOR ASSEMBLY
1

1397-8574 AIR HORN KIT

AIR HORN KIT
2

1397-8575 FLOAT BOWL KIT

FLOAT BOWL KIT
3

1397-8540 THROTTLE BODY KIT

THROTTLE BODY KIT
4

1397-8541 LINK/LEVER KIT, Choke

LINK/LEVER KIT, Choke
5

1397-8582 PRIMARY VACUUM KIT

PRIMARY VACUUM KIT
6

1397-8543T PISTON KIT

PISTON KIT
7

1397-8577 METERING JET AND ROD KIT

METERING JET AND ROD KIT
8

1397-8767Q FILTER KIT, Fuel

FILTER KIT, Fuel
9

1397-8546T FLOAT KIT

FLOAT KIT
10

823426A1 PUMP KIT

PUMP KIT
11

823426A1 NEEDLE/SEAT KIT

NEEDLE/SEAT KIT
12

823426A1 REPAIR KIT, Carburetor
(See Note 1)

REPAIR KIT, Carburetor
(See Note 1)
13

823426A1 GASKET KIT
(See Note 1)

GASKET KIT
(See Note 1)
14

1397-8327 GASKET, INLET FILTER NUT

GASKET, INLET FILTER NUT
15

1397-8557 SCREW KIT, AIR HORN/THROTTLE BODY

SCREW KIT, AIR HORN/THROTTLE BODY
-

27-524572 GASKET

GASKET
