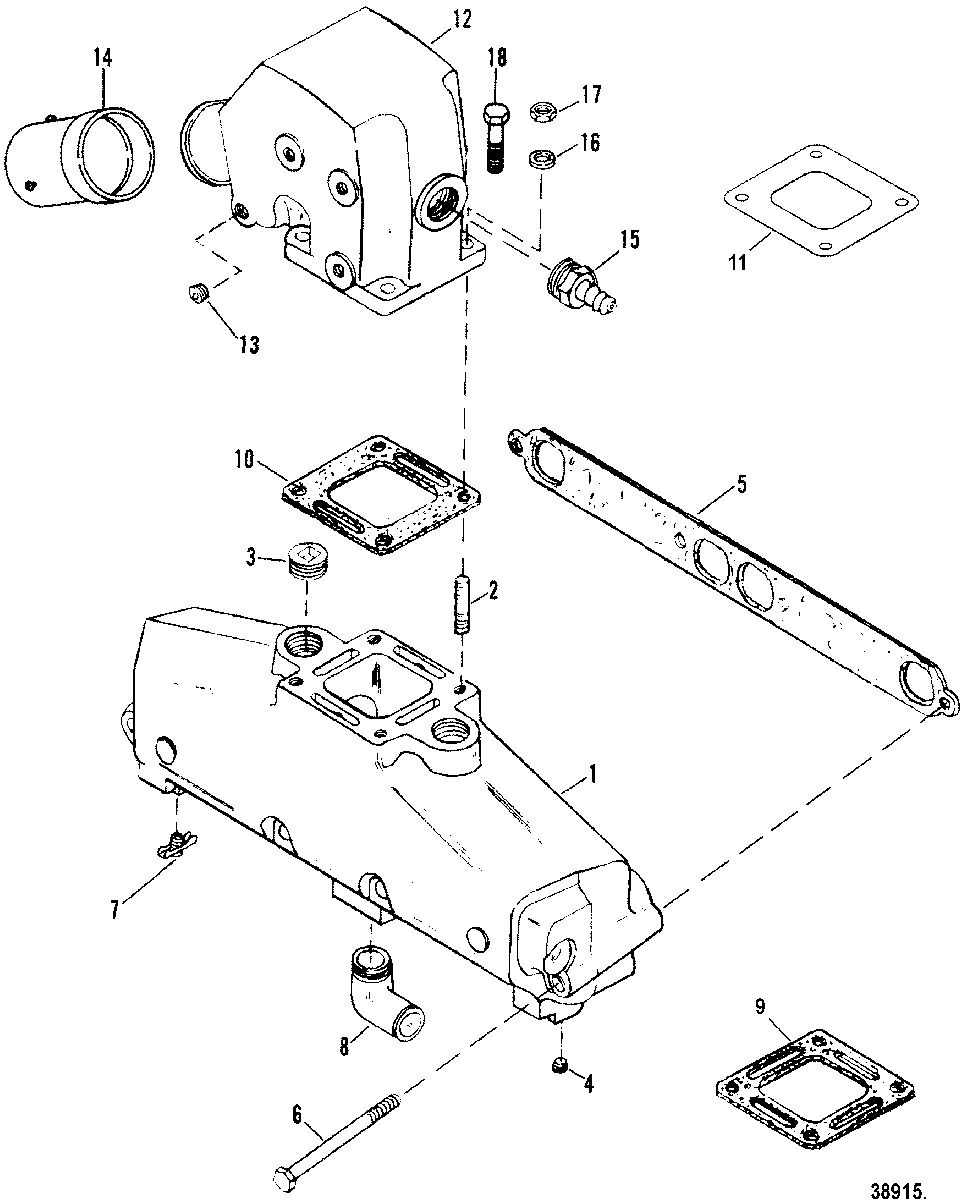

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1981-1986 5907058 THRU 0B522505

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    16-49545 STUD, (3/8 x 1.75), MANIFOLD (1-3/4")
    NOT USED W/7 EXHAUST ELBOW
    STUD, (3/8 x 1.75), MANIFOLD (1-3/4")
    NOT USED W/7 EXHAUST ELBOW
  • 2
    16-48770 STUD, MANIFOLD (3-1/2")
    NOT USED W/7 EXHAUST ELBOW
    STUD, MANIFOLD (3-1/2")
    NOT USED W/7 EXHAUST ELBOW
  • 3
    22-416223 PLUG, (3/4-14), EXHAUST MANIFOLD
    PLUG, (3/4-14), EXHAUST MANIFOLD
  • 4
    22-48118 PLUG, PIPE-EXHAUST MANIFOLD
    PLUG, PIPE-EXHAUST MANIFOLD
  • 5
    27-33395 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 6
    10-53728 SCREW, (.375-16 x 4.75), EXHAUST MANIFOLD
    SCREW, (.375-16 x 4.75), EXHAUST MANIFOLD
  • 7
    22-16951Q1 FITTING, EXHAUST MANIFOLD
    FITTING, EXHAUST MANIFOLD
  • 8
    22-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD
    ELBOW, (90 Degrees), EXHAUST MANIFOLD
  • 9
    27-863726 GASKET, ELBOW (USE WITH RISER KITS)
    GASKET, ELBOW (USE WITH RISER KITS)
  • 10
    27-863724 GASKET, EXHAUST ELBOW (STANDARD COOLING)
    GASKET, EXHAUST ELBOW (STANDARD COOLING)
  • 11
    27-8637251 GASKET, EXHAUST ELBOW (CLOSED COOLING)
    GASKET, EXHAUST ELBOW (CLOSED COOLING)
  • 12
    98502A2 ELBOW ASSEMBLY, Exhaust (0-3" O.D.)
    (See Riser Kits below for exhaust elbow extension kits)
    ELBOW ASSEMBLY, Exhaust (0-3" O.D.)
    (See Riser Kits below for exhaust elbow extension kits)
  • 12
    98504A3 ELBOW ASSEMBLY, Exhaust (15-3"O.D.)
    (See Riser Kits below for exhaust elbow extension kits)
    ELBOW ASSEMBLY, Exhaust (15-3"O.D.)
    (See Riser Kits below for exhaust elbow extension kits)
  • 12
    807988A03 ELBOW ASSEMBLY, Exhaust (7-4 O.D.)
    (See Riser Kits below for exhaust elbow extension kits)
    ELBOW ASSEMBLY, Exhaust (7-4 O.D.)
    (See Riser Kits below for exhaust elbow extension kits)
  • 13
    22-36382 FITTING, (.250-18 x .62) Brass, PIPE-EXHAUST ELBOW
    FITTING, (.250-18 x .62) Brass, PIPE-EXHAUST ELBOW
  • 14
    32-58616A2 TUBE, WATER SEPARATION
    TUBE, WATER SEPARATION
  • 15
    22-866725 FITTING, Straight, EXHAUST ELBOW (STRAIGHT)
    FITTING, Straight, EXHAUST ELBOW (STRAIGHT)
  • 15
    22-865159 FITTING, (45 Degrees), EXHAUST ELBOW (45 Degrees)
    FITTING, (45 Degrees), EXHAUST ELBOW (45 Degrees)
  • 16
    13-35048 LOCKWASHER, (.375), MANIFOLD STUD
    NOT USED W/7 EXHAUST ELBOW
    LOCKWASHER, (.375), MANIFOLD STUD
    NOT USED W/7 EXHAUST ELBOW
  • 17
    11-49838 NUT, MANIFOLD STUD
    NOT USED W/7 EXHAUST ELBOW
    NUT, MANIFOLD STUD
    NOT USED W/7 EXHAUST ELBOW
  • 18
    10-43749 SCREW, (.375-16 x 5.750), MANIFOLD)
    USE W/7 EXHAUST ELBOW
    SCREW, (.375-16 x 5.750), MANIFOLD)
    USE W/7 EXHAUST ELBOW
  • 18
    10-44387 SCREW, (.376-16 x 6.750), MANIFOLD
    USE W/7 EXHAUST ELBOW
    SCREW, (.376-16 x 6.750), MANIFOLD
    USE W/7 EXHAUST ELBOW
  • -
    93320A13 RISER KIT, Exhaust Elbow (3 In.)
    (Contains 2 Risers)
    RISER KIT, Exhaust Elbow (3 In.)
    (Contains 2 Risers)
  • -
    93322A12 RISER KIT, Exhaust Elbow (6 In.)
    (Contains 2 Risers)
    RISER KIT, Exhaust Elbow (6 In.)
    (Contains 2 Risers)
