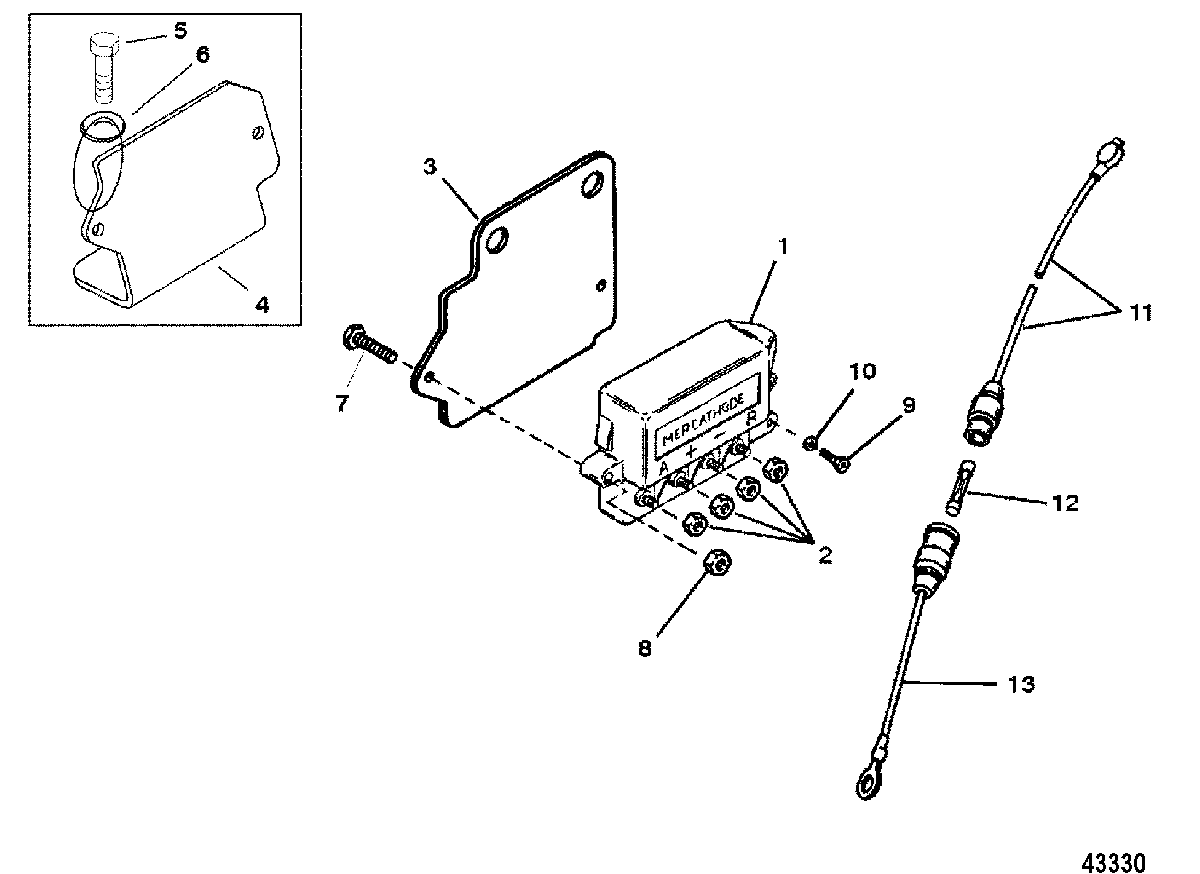

Mercathode(Stern Drive) для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999
-
№АртикулНазвание
-
142600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
211-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
318893T BRACKET
SN# 0F450249 & BelowBRACKET
SN# 0F450249 & Below -
4807286T BRACKET
SN# 0F450250 & UpBRACKET
SN# 0F450250 & Up -
510-40001188 SCREW, (M10 x 20)
SN# 0F450250 & UpSCREW, (M10 x 20)
SN# 0F450250 & Up -
612-4002220 WASHER
SN# 0F450250 & UpWASHER
SN# 0F450250 & Up -
710-4000117 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
811-809922038 NUTNUT
-
910-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1012-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
1184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple StripCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
-
1288-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1384-95084A10 CABLE ASSEMBLY, (5.00 Inches) RedCABLE ASSEMBLY, (5.00 Inches) Red
