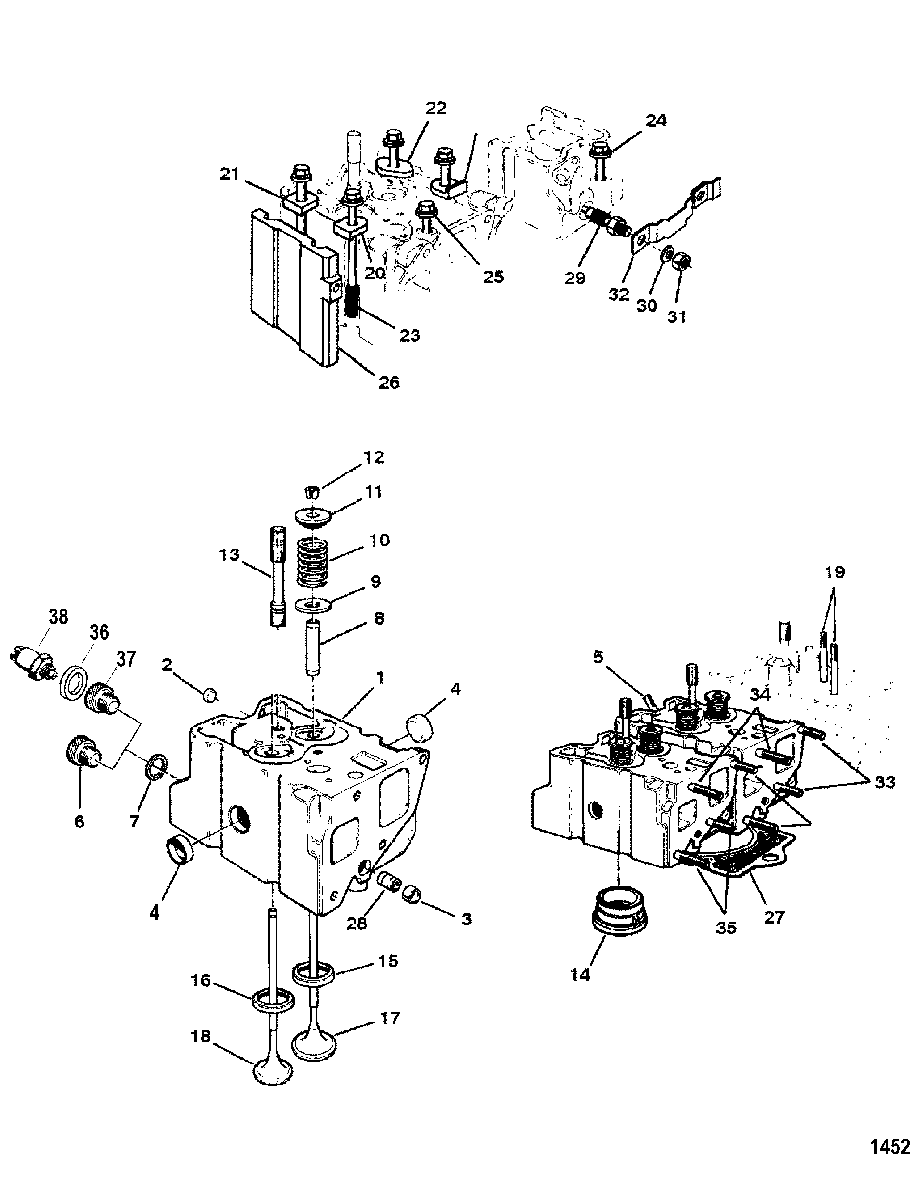

Cylinder Head(S/N-0D554753 and Up) для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999

№

Артикул

Название
1

806679 CYLINDER HEAD (WITH VALVES)

CYLINDER HEAD (WITH VALVES)
2

801331664 EXPANSION PLUG

EXPANSION PLUG
3

19-809937241 PLUG

PLUG
4

19-811389 PLUG

PLUG
5

16-898101520 STUD

STUD
6

10-879148010 PLUG
SN# 0F319301 & Below

PLUG
SN# 0F319301 & Below
7

25-809963342 O-RING

O-RING
8

801331659 GUIDE, Valve

GUIDE, Valve
9

801331752 PLATE, Spring

PLATE, Spring
10

24-8M0116896 SPRING

SPRING
11

801331754 CAP, Spring

CAP, Spring
12

801331755 KEEPER, Keepers

KEEPER, Keepers
13

16-801331662 STUD

STUD
14

816809 PRECHAMBER

PRECHAMBER
15

806715 VALVE SEAT (INLET)

VALVE SEAT (INLET)
16

806714 VALVE SEAT (OUTLET)

VALVE SEAT (OUTLET)
17

811489 VALVE, Inlet

VALVE, Inlet
18

811488 VALVE, Outlet

VALVE, Outlet
19

16-801331666 STUD

STUD
20

801331671 BRIDGE

BRIDGE
21

801331673 BRIDGE

BRIDGE
22

801331674 BRIDGE

BRIDGE
23

10-8M0058844 BOLT, (M14 x 149.5), Center

BOLT, (M14 x 149.5), Center
24

10-8M0057699 BOLT, (M12 x 94.5), Injector Side

BOLT, (M12 x 94.5), Injector Side
25

10-8M0057732 BOLT, (M12 x 127.5), Manifold Side

BOLT, (M12 x 127.5), Manifold Side
26

23-801331670 SPACER
SN# 0D554732 THRU 0L099755

SPACER
SN# 0D554732 THRU 0L099755
26

23-881746 SPACER, Front and Rear
SN# 0L099756 & Up

SPACER, Front and Rear
SN# 0L099756 & Up
27

27-854078 GASKET, Cylinder Head
(1.42 mm) SN# 0D554732 THRU 0L099755

GASKET, Cylinder Head
(1.42 mm) SN# 0D554732 THRU 0L099755
27

27-823297 GASKET, Cylinder Head
(1.52 mm) SN# 0D554732 THRU 0L099755

GASKET, Cylinder Head
(1.52 mm) SN# 0D554732 THRU 0L099755
27

27-854079 GASKET, Cylinder Head
(1.62 mm) SN# 0D554732 THRU 0L099755

GASKET, Cylinder Head
(1.62 mm) SN# 0D554732 THRU 0L099755
27

27-8M0098620 GASKET, (1.42 mm), FRONT
SN# 0L099756 & Up

GASKET, (1.42 mm), FRONT
SN# 0L099756 & Up
27

8M0094378 GASKET, (1.52 mm), FRONT
SN# 0L099756 & Up

GASKET, (1.52 mm), FRONT
SN# 0L099756 & Up
27

27-8M0098621 GASKET, (1.62 mm), FRONT
SN# 0L099756 & Up

GASKET, (1.62 mm), FRONT
SN# 0L099756 & Up
27

27-898101480 GASKET, (1.42 mm), REAR
SN# 0L099756 & Up

GASKET, (1.42 mm), REAR
SN# 0L099756 & Up
27

27-898101481 GASKET, (1.52 mm), REAR
SN# 0L099756 & Up

GASKET, (1.52 mm), REAR
SN# 0L099756 & Up
27

27-898101482 GASKET, (1.62 mm), REAR
SN# 0L099756 & Up

GASKET, (1.62 mm), REAR
SN# 0L099756 & Up
28

32-806710 TUBE, Water

TUBE, Water
29

33-811495 PLUG, Glow

PLUG, Glow
30

13-809932047 LOCKWASHER

LOCKWASHER
31

11-809921038 NUT

NUT
32

811494 CONNECTING BRIDGE

CONNECTING BRIDGE
33

16-801333451 STUD, (M8 x 90)

STUD, (M8 x 90)
34

16-898101517 STUD

STUD
35

16-898101518 STUD, (M8 x 150)

STUD, (M8 x 150)
36

12-889153 WASHER
SN# 0F319302 & Up

WASHER
SN# 0F319302 & Up
37

22-806991 ADAPTOR
SN# 0F319302 & Up

ADAPTOR
SN# 0F319302 & Up
37

22-52382 BUSHING
(Second Station Temp Sender)

BUSHING
(Second Station Temp Sender)
38

87-814079 SENDER, Water Temperature
SN# 0F319302 & Up

SENDER, Water Temperature
SN# 0F319302 & Up
38

49734 SENDER
(Second Station)

SENDER
(Second Station)
-

27-898300004 GASKET SET, Engine Overhaul
SN# 0D557432 THRU 0L099755

GASKET SET, Engine Overhaul
SN# 0D557432 THRU 0L099755
-

27-898300004 GASKET SET, Engine Overhaul
SN# 0L099756 & Up

GASKET SET, Engine Overhaul
SN# 0L099756 & Up
-

27-811522 GASKET SET, Cylinder Head
SN# 0D557432 THRU 0L099755

GASKET SET, Cylinder Head
SN# 0D557432 THRU 0L099755
-

27-898300002 GASKET SET, Cylinder Head
SN# 0L099756 & Up

GASKET SET, Cylinder Head
SN# 0L099756 & Up
