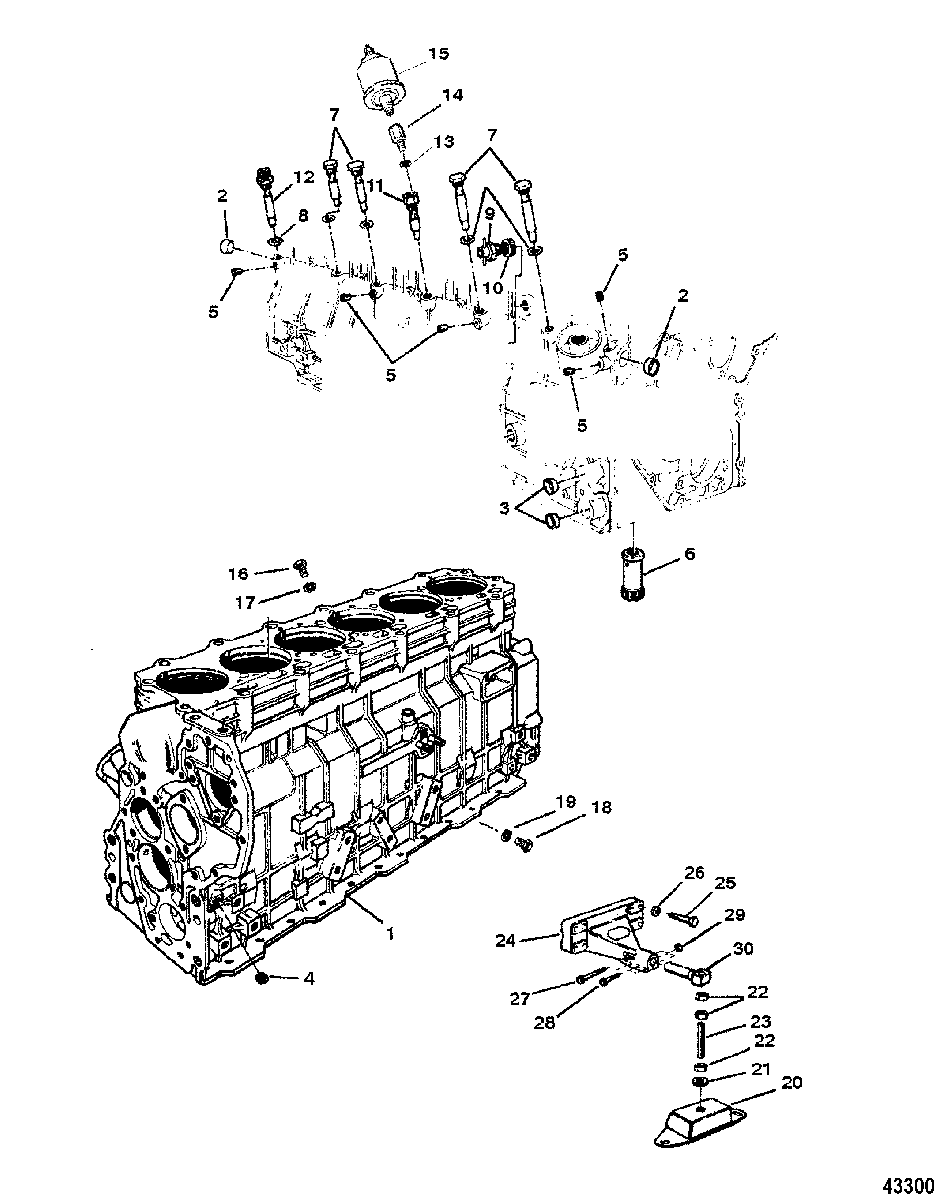

Engine/Cylinder Block для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999
-
№АртикулНазвание
-
1882-816801 CYLINDER BLOCK
SN# 0D554732 THRU 0L099755CYLINDER BLOCK
SN# 0D554732 THRU 0L099755 -
1882-854040001 CYLINDER BLOCK
SN# 0L099756 & UpCYLINDER BLOCK
SN# 0L099756 & Up -
219-801331602 PLUG, ExpansionPLUG, Expansion
-
319-809937241 PLUGPLUG
-
419-811375 PLUGPLUG
-
510-811431 SET SCREW, (M6 x 3)SET SCREW, (M6 x 3)
-
6854041 VALVE, Oil PressureVALVE, Oil Pressure
-
710-801331650 SCREW, Locating
SN# 0D554732 THRU 0L099755SCREW, Locating
SN# 0D554732 THRU 0L099755 -
710-801331651 SCREW
SN# 0L099756 & UpSCREW
SN# 0L099756 & Up -
812-889153 WASHER
SN# 0D554732 THRU 0L099755WASHER
SN# 0D554732 THRU 0L099755 -
812-881791 WASHER
SN# 0L099756 & UpWASHER
SN# 0L099756 & Up -
922-801331684 FITTING, DrainFITTING, Drain
-
1022-811428 SLEEVESLEEVE
-
1122-801763388 CONNECTORCONNECTOR
-
1210-801331651 SCREW
SN# 0D554732 THRU 0L099755SCREW
SN# 0D554732 THRU 0L099755 -
1222-855463 ADAPTOR
SN# 0L099756 & UpADAPTOR
SN# 0L099756 & Up -
1312-881791 WASHERWASHER
-
1422-806443 ADAPTORADAPTOR
-
15805267T SENDER, Oil Pressure
(SINGLE STATION)SENDER, Oil Pressure
(SINGLE STATION) -
15805268 SENDER
(DOUBLE STATION)SENDER
(DOUBLE STATION) -
1610-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
1712-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
1810-4000374 SCREW, (M10 x 16)SCREW, (M10 x 16)
-
1913-400258 LOCKWASHER, (M10) Stainless SteelLOCKWASHER, (M10) Stainless Steel
-
20879194475 MOUNT, EngineMOUNT, Engine
-
2112-809931094 WASHERWASHER
-
2211-809921102 NUT, (M16)NUT, (M16)
-
2316-801763908 STUD, (M16 x 125)STUD, (M16 x 125)
-
24801761382 BRACKETBRACKET
-
2510-809913859 SCREW (50MM)SCREW (50MM)
-
2510-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
2613-879194382 LOCKWASHERLOCKWASHER
-
2710-809912516 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2810-801761617 SCREWSCREW
-
2911-815088 NUT, (M8)NUT, (M8)
-
30855382 PINPIN
-
-27-898300004 GASKET SET, Engine Overhaul
SN# 0D554732 THRU 0L099755GASKET SET, Engine Overhaul
SN# 0D554732 THRU 0L099755 -
-27-898300004 GASKET SET, Engine Overhaul
SN# 0L099756 & UpGASKET SET, Engine Overhaul
SN# 0L099756 & Up -
-879831 LONGBLOCK ASSEMBLY
Includes Internal Parts and Cylinder HeadsLONGBLOCK ASSEMBLY
Includes Internal Parts and Cylinder Heads
