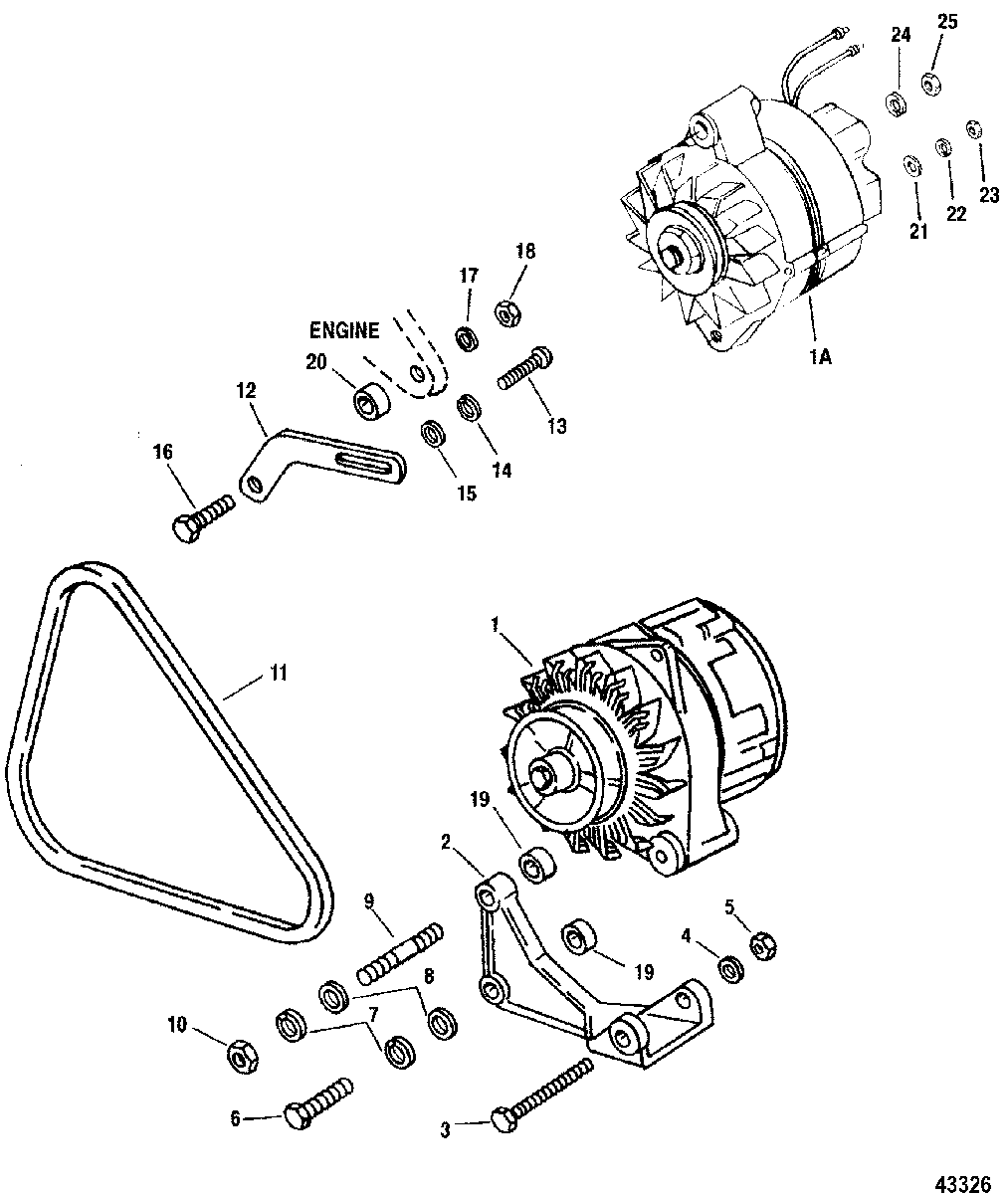

Alternator & Mounting Hardware(S/N-0F319301 and Below) для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    805884T ALTERNATOR
    (PRESTOLITE)
    ALTERNATOR
    (PRESTOLITE)
  • 1A
    805884T ALTERNATOR
    (MANDO)
    ALTERNATOR
    (MANDO)
  • 2
    801763465 SUPPORT
    SUPPORT
  • 3
    10-809912567 SCREW
    SCREW
  • 4
    12-4002217 WASHER
    WASHER
  • 5
    11-815088 NUT, (M8)
    NUT, (M8)
  • 6
    10-806622 SCREW
    SCREW
  • 7
    13-879194375 LOCKWASHER
    LOCKWASHER
  • 8
    12-811480 WASHER
    WASHER
  • 9
    16-806620 STUD
    STUD
  • 10
    11-879172161 NUT
    NUT
  • 11
    57-44207Q V BELT
    V BELT
  • 12
    806422 BRACE
    BRACE
  • 13
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 14
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 15
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 16
    10-40001206 SCREW, (M10 x 50)
    SCREW, (M10 x 50)
  • 17
    12-4002320 WASHER
    WASHER
  • 18
    11-4013610 NUT, (M10) Stainless Steel
    NUT, (M10) Stainless Steel
  • 19
    816543 SPACER
    SPACER
  • 19
    23-32727 SPACER
    SPACER
  • 21
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    MANDO ALTERNATOR
    WASHER, Phenolic (.27 x .81 x .062)
    MANDO ALTERNATOR
  • 22
    13-26992 LOCKWASHER, (.250) Stainless Steel
    MANDO ALTERNATOR
    LOCKWASHER, (.250) Stainless Steel
    MANDO ALTERNATOR
  • 23
    11-94330 NUT, (.250-20) Brass
    MANDO ALTERNATOR
    NUT, (.250-20) Brass
    MANDO ALTERNATOR
  • 24
    13-26996 LOCKWASHER, (#10) Stainless Steel
    MANDO ALTERNATOR
    LOCKWASHER, (#10) Stainless Steel
    MANDO ALTERNATOR
  • 25
    11-79989 NUT, (#10-24) Stainless Steel
    MANDO ALTERNATOR
    NUT, (#10-24) Stainless Steel
    MANDO ALTERNATOR
