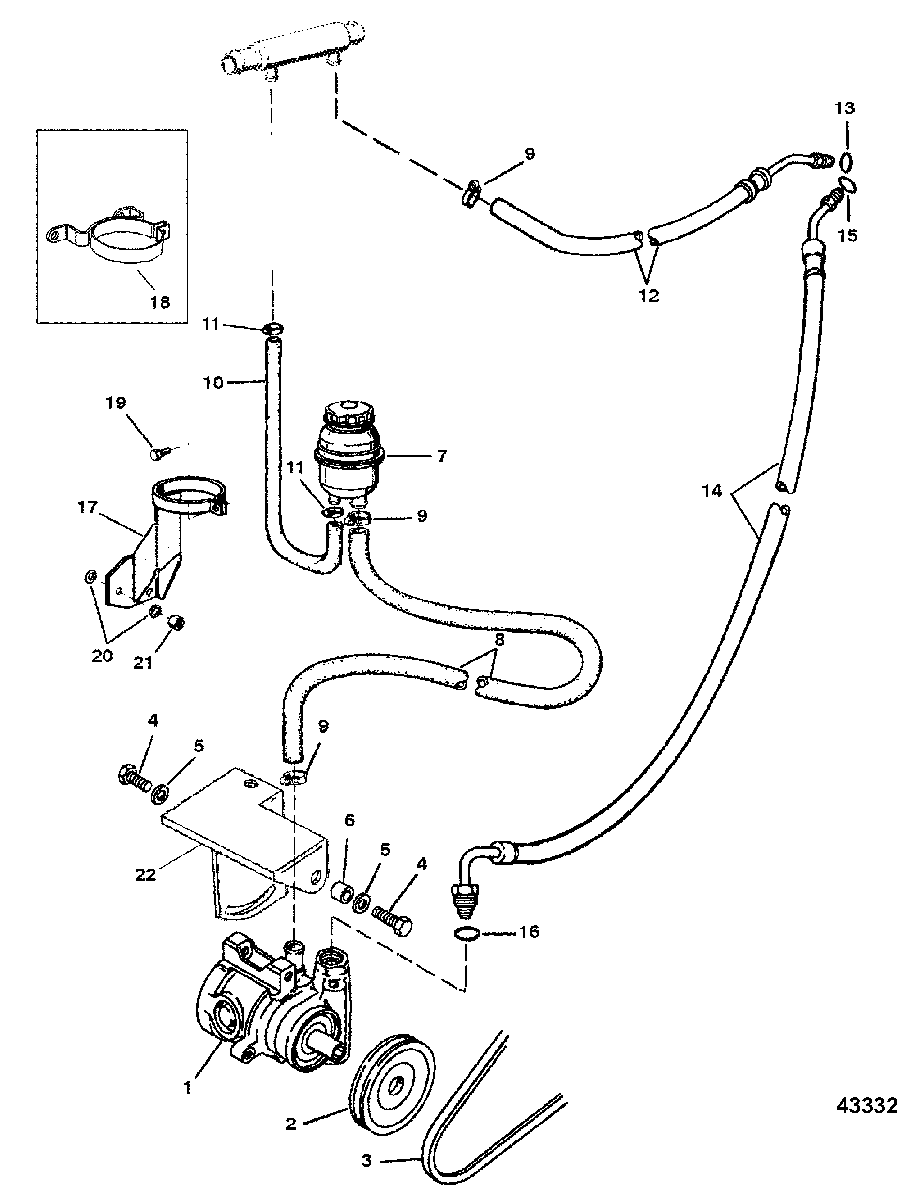

Power Steering Components(Stern Drive) для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    18825A10 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    801763349 PULLEY
    PULLEY
  • 3
    57-816177Q V BELT
    V BELT
  • 4
    10-809913657 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 5
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 6
    23-12009 BUSHING, (.31 x .45 x .50)
    BUSHING, (.31 x .45 x .50)
  • 7
    865264T TANK, Power Steering Oil Reservoir
    TANK, Power Steering Oil Reservoir
  • 8
    32-816689260 HOSE
    SN# 0F450249 & Below
    HOSE
    SN# 0F450249 & Below
  • 8
    32-816689260 HOSE
    SN# 0F450250 & Up
    HOSE
    SN# 0F450250 & Up
  • 9
    54-815504210 CLAMP
    CLAMP
  • 10
    32-815183 HOSE
    SN# 0F450249 & Below
    HOSE
    SN# 0F450249 & Below
  • 10
    32-807935 HOSE
    SN# 0F450250 & Up
    HOSE
    SN# 0F450250 & Up
  • 11
    54-815504104 CLAMP
    CLAMP
  • 12
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
  • 13
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 14
    32-80622216 HOSE
    HOSE
  • 15
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 16
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 17
    801763309 SUPPORT
    SN# 0F450249 & Below
    SUPPORT
    SN# 0F450249 & Below
  • 18
    807934 SUPPORT
    SN# 0F450250 & Up
    SUPPORT
    SN# 0F450250 & Up
  • 19
    10-809913466 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 20
    12-809931044 WASHER
    WASHER
  • 21
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 22
    816340 BRACKET
    BRACKET
