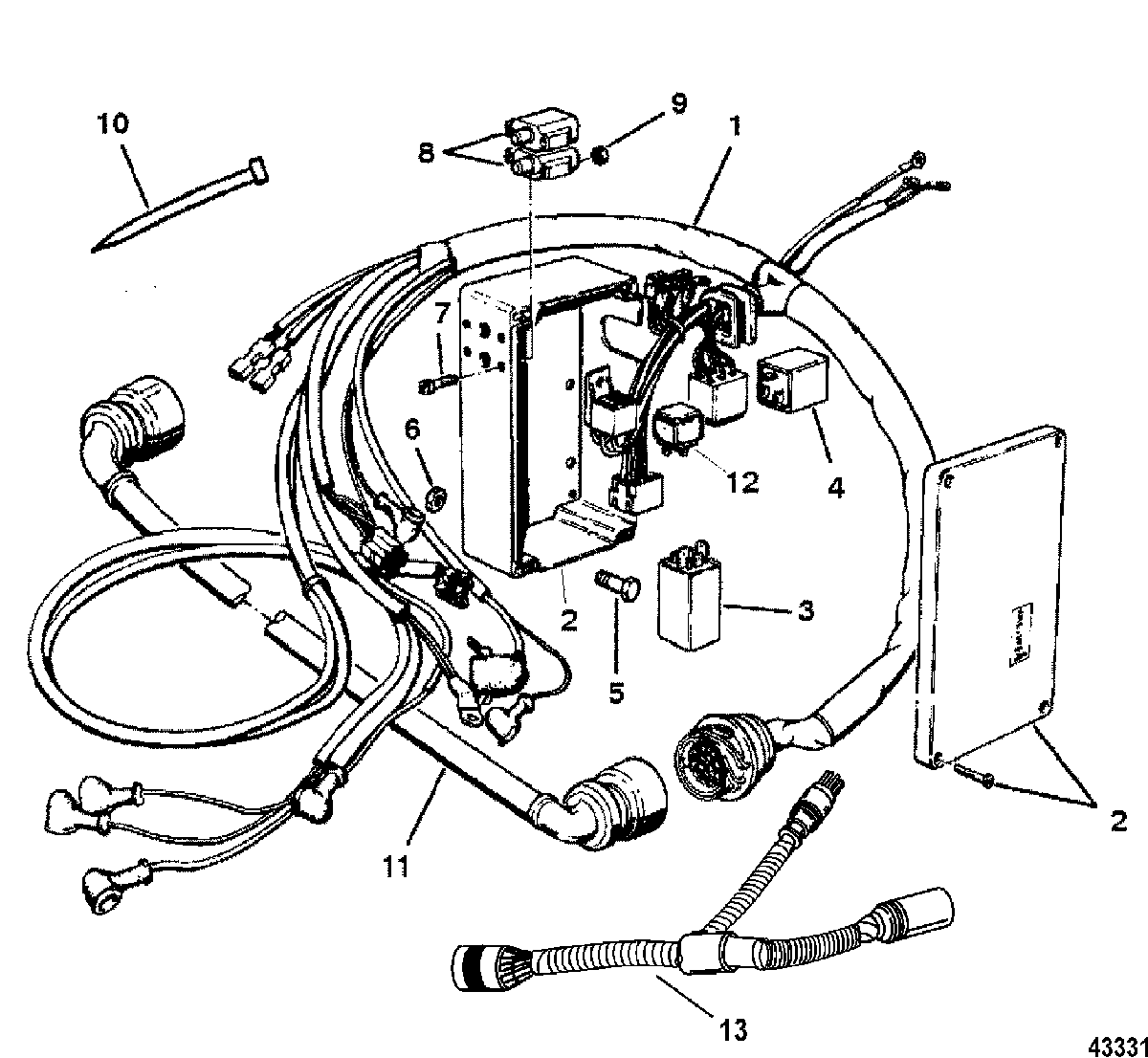

Motor Harness для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    84-806389A2 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 2
    801334495 BOX ASSEMBLY, Electrical Components
    BOX ASSEMBLY, Electrical Components
  • 3
    801334306 RELAY, Preheating
    RELAY, Preheating
  • 4
    801334299 RELAY, Power
    RELAY, Power
  • 5
    10-809907688 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 5
    10-4005688 SCREW, (M4 x 20)
    SCREW, (M4 x 20)
  • 6
    11-809922404 NUT
    NUT
  • 7
    10-809907583 SCREW
    SCREW
  • 8
    88-93582 BREAKER, Circuit
    BREAKER, Circuit
  • 9
    11-809922028 NUT
    NUT
  • 10
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 11
    84-812441A20 HARNESS ASSEMBLY, (20 Feet)
    HARNESS ASSEMBLY, (20 Feet)
  • 12
    87-860604 RELAY, Starting
    RELAY, Starting
  • NS
    821509T01 RELAY, DELAY (AUDIO WARNING)
    RELAY, DELAY (AUDIO WARNING)
  • 13
    84-860624 HARNESS ASSEMBLY, ADAPTOR
    (Deutsch Instrument)
    HARNESS ASSEMBLY, ADAPTOR
    (Deutsch Instrument)
