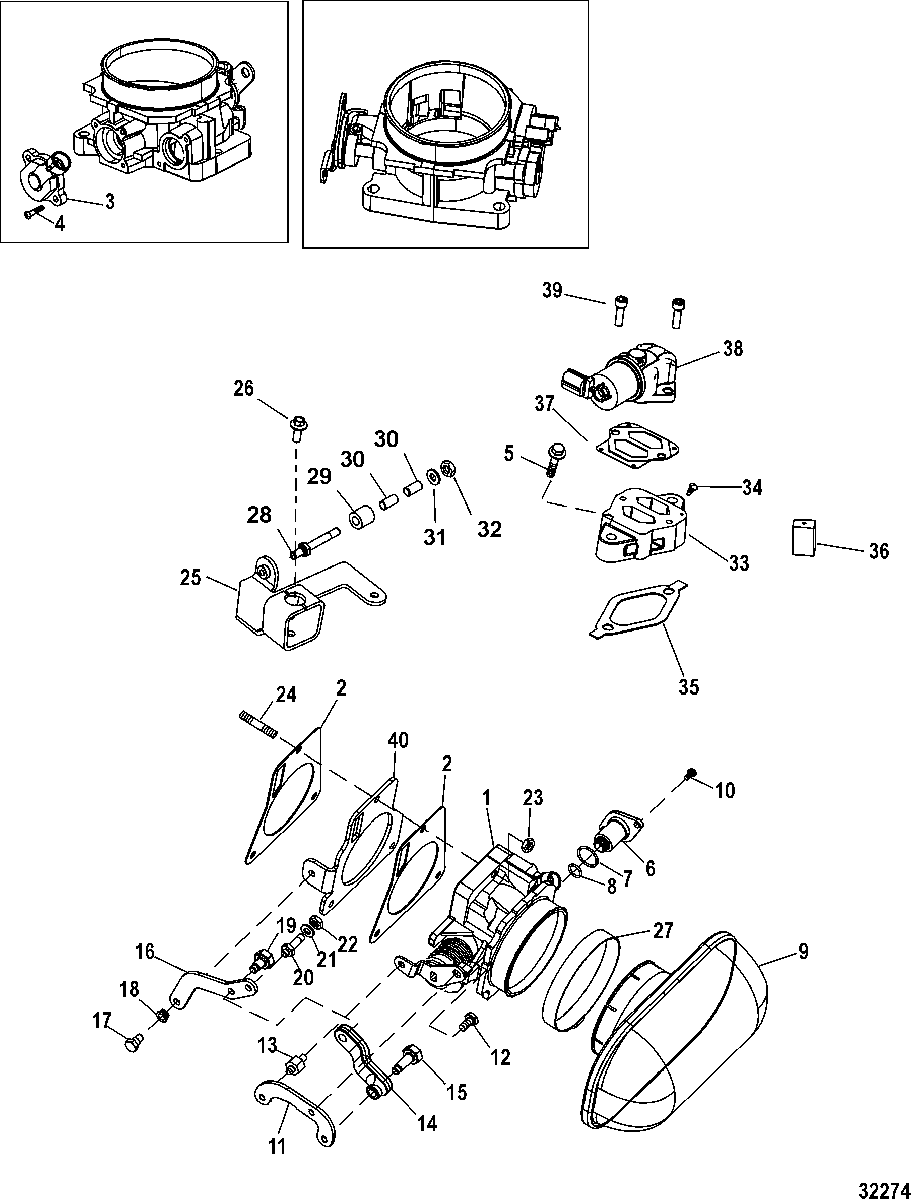

Throttle Body, Mechanical Throttle-Shift для Mercruiser - 8.1L INBOARD (Base) EC 0W697154 THRU 1A380251
-
№АртикулНазвание
-
1879288T50 THROTTLE BODY ASSEMBLY, Base and High OutputTHROTTLE BODY ASSEMBLY, Base and High Output
-
227-863215 GASKET, Throttle BodyGASKET, Throttle Body
-
38M0097035 SENSOR, TPS, Includes O-RingSENSOR, TPS, Includes O-Ring
-
410-853680 SCREW KITSCREW KIT
-
510-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
6862999002 PLUG, Adaptor, Intake Air ControlPLUG, Adaptor, Intake Air Control
-
725-808547 O-RINGO-RING
-
825-863006 O-RINGO-RING
-
98M0113516 FLAME ARRESTORFLAME ARRESTOR
-
1010-805400 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
11863135 LEVER, ThrottleLEVER, Throttle
-
1210-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
1316-863345 STUD, SpecialSTUD, Special
-
14863214 LINKLINK
-
15805533 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
168M2001692 ARM, CableARM, Cable
-
1710-863380 SCREW, SpecialSCREW, Special
-
1823-97896 BUSHING, FlangedBUSHING, Flanged
-
19805398 PIN, Primary LinkagePIN, Primary Linkage
-
2016-805526 STUD, (.250-28 x 1.540)STUD, (.250-28 x 1.540)
-
2112-20533 WASHERWASHER
-
2211-8267139 NUT, (.250-28)NUT, (.250-28)
-
2211-826709109 NUT, (.250-28) Stainless Steel
(SEACORE)NUT, (.250-28) Stainless Steel
(SEACORE) -
2311-802751 NUTNUT
-
2416-8M0077391 STUDSTUD
-
258M2005404 BRACKET, Throttle Cable AttachingBRACKET, Throttle Cable Attaching
-
2610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2754-863393 CLAMP, Flame ArrestorCLAMP, Flame Arrestor
-
2816-97477A3 STUD KITSTUD KIT
-
2816-866641A01 STUD KIT
(SEACORE)STUD KIT
(SEACORE) -
29NSS NOT SOLD SEPARATE, Spacer, SpecialNOT SOLD SEPARATE, Spacer, Special
-
3023-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
3112-20533 WASHERWASHER
-
3211-8267139 NUT, (.250-28)NUT, (.250-28)
-
3211-826709109 NUT, (.250-28) Stainless Steel
(SEACORE)NUT, (.250-28) Stainless Steel
(SEACORE) -
33879288A47 PLATE ASSEMBLY, Mounting - Intake Air ControlPLATE ASSEMBLY, Mounting - Intake Air Control
-
34NSS NOT SOLD SEPARATE, RivetNOT SOLD SEPARATE, Rivet
-
3527-863285 GASKET, Air ValveGASKET, Air Valve
-
3635-865266 FILTERFILTER
-
37NSS NOT SOLD SEPARATE, Gasket, Idle Air ValveNOT SOLD SEPARATE, Gasket, Idle Air Valve
-
38862998 VALVE, Idle AirVALVE, Idle Air
-
3910-4010620 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
40862996 BRACKET, Throttle LinkageBRACKET, Throttle Linkage
