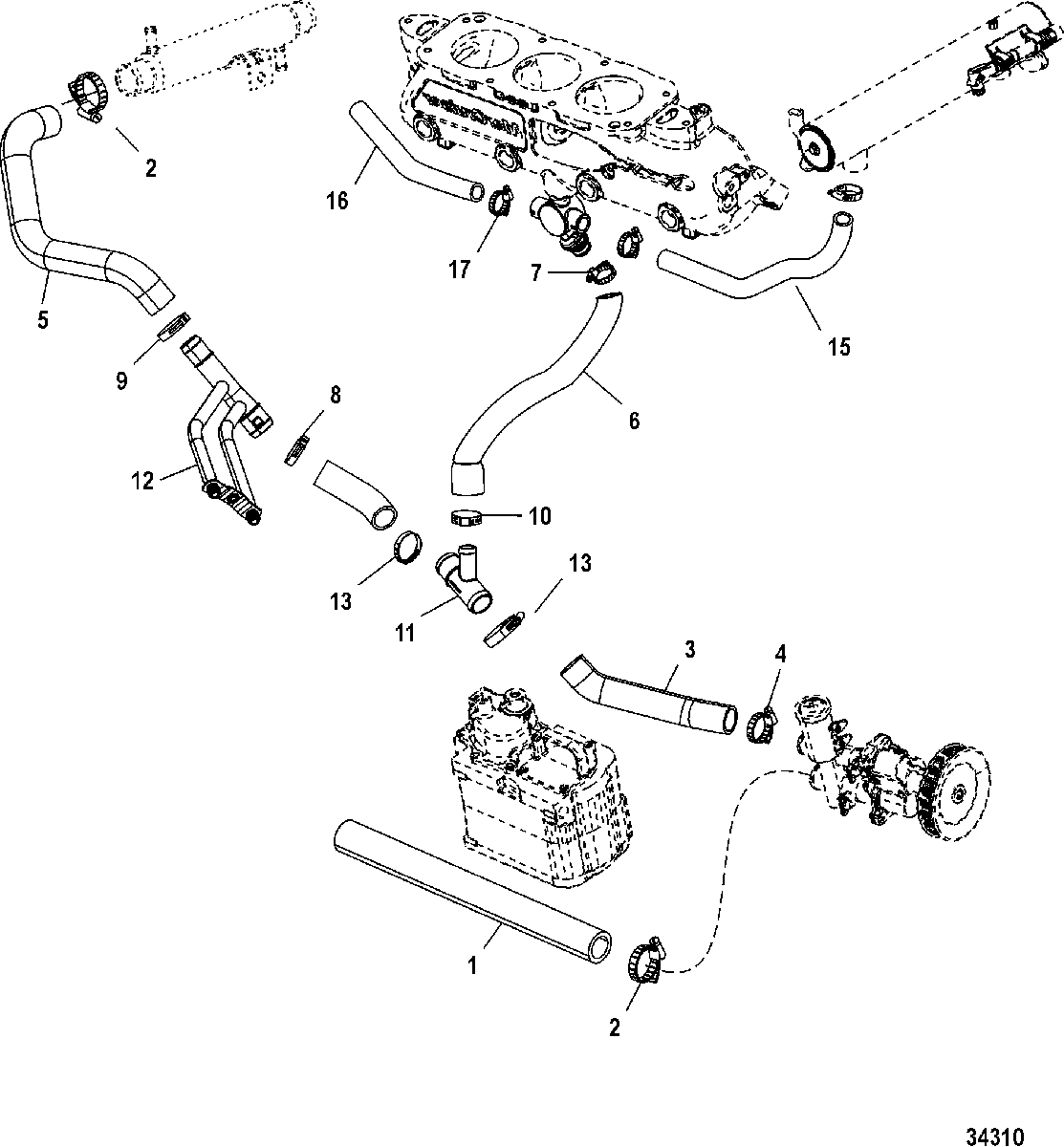

Cooling System, Raw Water, Starboard (SN 1A380209 & Below) для Mercruiser - 8.1L INBOARD (Base) EC 0W697154 THRU 1A380251

  • №
    Артикул
    Название
  • 1
    32-8M0062666 HOSE, (96.00 Inches Bulk), Cut to Fit
    HOSE, (96.00 Inches Bulk), Cut to Fit
  • 2
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 3
    32-8M2004535 HOSE, Sea Water Pump to Water Orifice
    HOSE, Sea Water Pump to Water Orifice
  • 4
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 5
    32-8M2021655 HOSE, Water Orifice to Power Steering Cooler
    HOSE, Water Orifice to Power Steering Cooler
  • 6
    32-8M2004531 HOSE, Drain to Y-Fitting
    HOSE, Drain to Y-Fitting
  • 7
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 8
    54-815504221 CLAMP, Worm Gear (30 - 45 mm)
    CLAMP, Worm Gear (30 - 45 mm)
  • 9
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 10
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
  • 11
    22-8M2008928 FITTING
    FITTING
  • 12
    22-865317T01 FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
    (See Bulletin MCM 2009-01)
    FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
    (See Bulletin MCM 2009-01)
  • 13
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 14
    32-8M2004536 HOSE, Y-Fitting to Orifice Meter
    HOSE, Y-Fitting to Orifice Meter
  • 15
    32-8M2004598 HOSE, Heat Exchanger to Poppet
    HOSE, Heat Exchanger to Poppet
  • 16
    32-8M0062669 HOSE, (36.00 Inches Bulk), Poppet to Collector
    Inline-Cut to 20 Inches, V-Drive-Cut to 36 Inches
    HOSE, (36.00 Inches Bulk), Poppet to Collector
    Inline-Cut to 20 Inches, V-Drive-Cut to 36 Inches
  • 17
    54-815504105 CLAMP, Worm Gear (12 - 20 mm)
    CLAMP, Worm Gear (12 - 20 mm)
