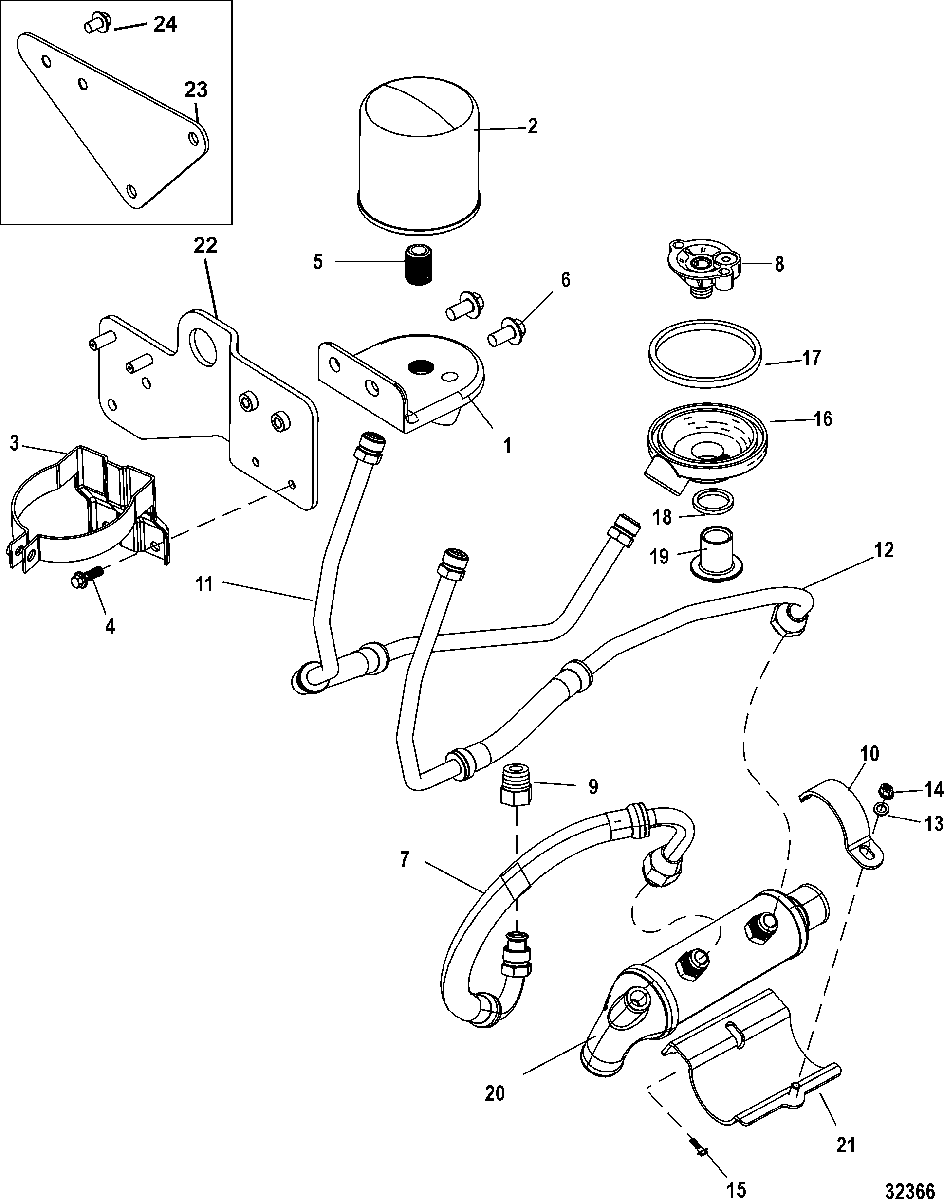

Remote Oil System для Mercruiser - 8.1L INBOARD (Base) EC 0W697154 THRU 1A380251

  • №
    Артикул
    Название
  • 1
    863732T1 BRACKET, Remote Oil Filter
    Includes Fitting
    BRACKET, Remote Oil Filter
    Includes Fitting
  • 2
    35-866340Q03 FILTER, Oil - Quicksilver Brand
    FILTER, Oil - Quicksilver Brand
  • 3
    865262A02 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 4
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 5
    22-863485 FITTING
    Part of Remote Oil Filter Bracket
    FITTING
    Part of Remote Oil Filter Bracket
  • 6
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 7
    32-863915 HOSE, Oil, Cooler to Adaptor
    HOSE, Oil, Cooler to Adaptor
  • 8
    883920 VALVE ASSEMBLY, Filter
    VALVE ASSEMBLY, Filter
  • 9
    22-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
    CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
  • 10
    12-22937 WASHER
    WASHER
  • 10
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    (SEACORE)
    WASHER, (.281 x .625 x .065) Stainless Steel
    (SEACORE)
  • 11
    32-866401 HOSE, Oil, Filter Base to Block
    HOSE, Oil, Filter Base to Block
  • 11
    32-8M2000827 HOSE, Oil, Filter Base to Block
    V-Drive
    HOSE, Oil, Filter Base to Block
    V-Drive
  • 12
    32-866402 HOSE, Oil, Filter to Cooler
    HOSE, Oil, Filter to Cooler
  • 12
    32-8M2000828 HOSE, Oil, Filter to Cooler
    V-Drive
    HOSE, Oil, Filter to Cooler
    V-Drive
  • 13
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    807445T CLAMP, Cooler Bracket
    CLAMP, Cooler Bracket
  • 15
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 16
    862870T ADAPTOR, Oil Filter
    ADAPTOR, Oil Filter
  • 17
    26-862957 SEAL, Oil Filter Adaptor
    SEAL, Oil Filter Adaptor
  • 18
    26-42077 SEAL, Swivel Tube
    SEAL, Swivel Tube
  • 19
    22-862958 FITTING, Oil Filter Adaptor
    FITTING, Oil Filter Adaptor
  • 20
    879288T46 COOLER, Oil
    COOLER, Oil
  • 21
    863905T BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 22
    866626T BRACKET, Front Lifting Eye
    BRACKET, Front Lifting Eye
  • 23
    866703 BRACKET, Remote Oil
    V-Drive
    BRACKET, Remote Oil
    V-Drive
  • 24
    10-4010816 SCREW, (M10 x 16) Hex Flange - Stainless Steel, To Head
    SCREW, (M10 x 16) Hex Flange - Stainless Steel, To Head
