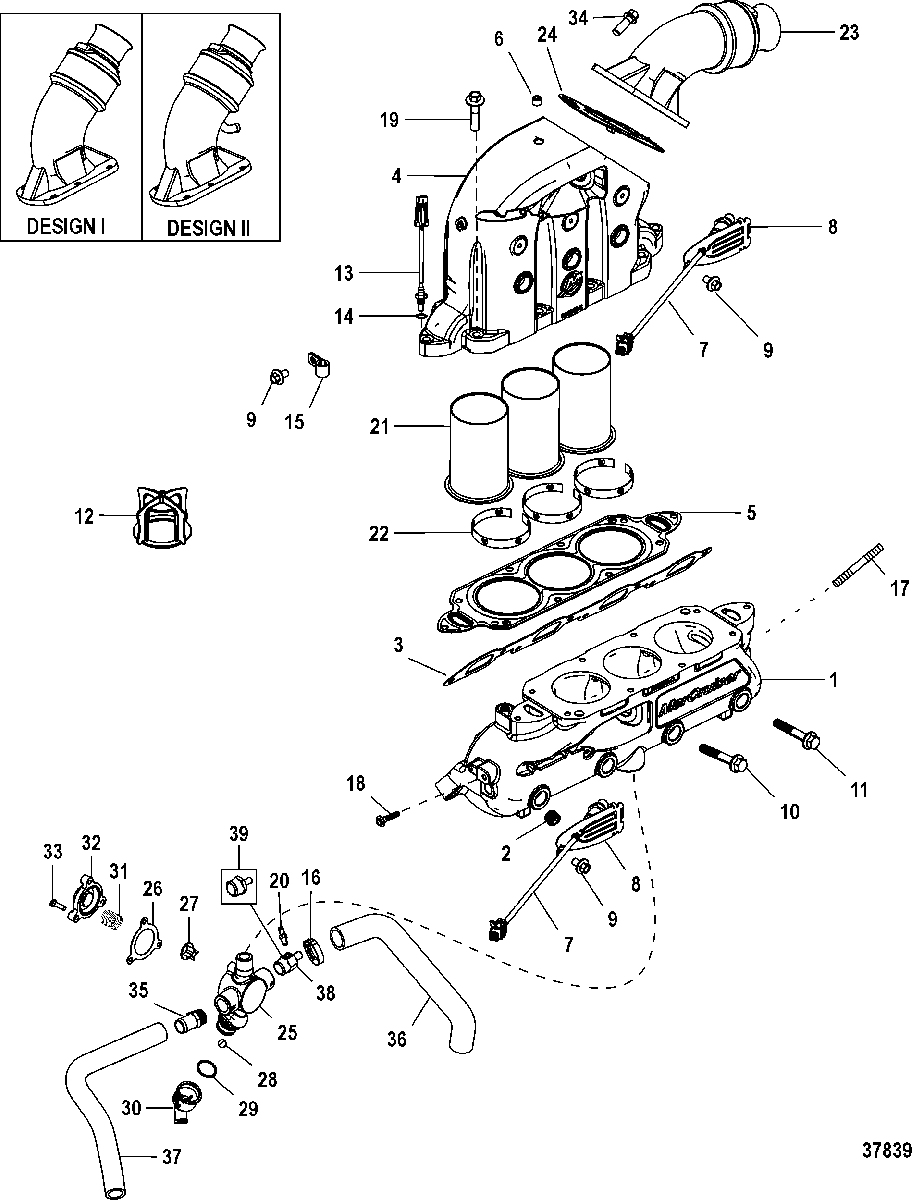

Exhaust Manifold для Mercruiser - 8.1L INBOARD (Base) EC 0W697154 THRU 1A380251
-
№АртикулНазвание
-
18M0099070 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
219-864689 PLUG, ExpansionPLUG, Expansion
-
327-8M0065690 GASKET, Cylinder Head to Exhaust ManifoldGASKET, Cylinder Head to Exhaust Manifold
-
48M0098227 COLLECTOR, Exhaust
(See Note)COLLECTOR, Exhaust
(See Note) -
527-866390 GASKET, Collector, ExhaustGASKET, Collector, Exhaust
-
622-73379 PLUG, (.250-18)PLUG, (.250-18)
-
78M2003959 SENSOR, OxygenSENSOR, Oxygen
-
88M2004289 COVER, Oxygen SensorCOVER, Oxygen Sensor
-
910-4010610 SCREW, (M6 x 10) Stainless SteelSCREW, (M6 x 10) Stainless Steel
-
1010-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
1110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
12860222A1 RESONATORRESONATOR
-
13885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1425-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1554-65653 CLIPCLIP
-
1654-815504206 CLAMP, Worm GearCLAMP, Worm Gear
-
1716-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
1810-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
1910-4009535 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2022-16604 FITTING, Straight (.125-27)
(MIE) (See Note)FITTING, Straight (.125-27)
(MIE) (See Note) -
21879288T47 CATALYSTCATALYST
-
22866775 RING, Retention, CatalystRING, Retention, Catalyst
-
238M0058471 ELBOW, Exhaust, No Rise
(See Note)ELBOW, Exhaust, No Rise
(See Note) -
23879288T80 ELBOW, Exhaust, No Rise
(MIE V-Drive only) (See Note)ELBOW, Exhaust, No Rise
(MIE V-Drive only) (See Note) -
238M0062051 RISER KIT, Exhaust - 2 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)RISER KIT, Exhaust - 2 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note) -
238M0062052 RISER KIT, Exhaust - 4 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)RISER KIT, Exhaust - 4 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note) -
238M0062053 RISER KIT, Exhaust - 6 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)RISER KIT, Exhaust - 6 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note) -
238M0062054 RISER KIT, Exhaust - 8 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)RISER KIT, Exhaust - 8 Inch Rise
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note) -
2427-8M2003931 GASKET (Elbow 0 rise includes 1 gasket each)GASKET (Elbow 0 rise includes 1 gasket each)
-
25879288T59 VALVE, Poppet AssemblyVALVE, Poppet Assembly
-
2627-8M2010475 GASKET, Poppet CoverGASKET, Poppet Cover
-
278M2010186 POPPETPOPPET
-
2830-863129 BALLBALL
-
2925-864701 O-RING, (1.112 x .103)O-RING, (1.112 x .103)
-
30862994T FITTINGFITTING
-
3124-42996 SPRING, (Stainless Steel)SPRING, (Stainless Steel)
-
328M8020539 CAP, Poppet ValveCAP, Poppet Valve
-
3310-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
3410-8M0140384 SCREW, (M8) Hex FlangeSCREW, (M8) Hex Flange
-
3522-866725 FITTING, Straight (.750-14)
(See Note)FITTING, Straight (.750-14)
(See Note) -
3632-8M0062669 HOSE, (45 Inches Bulk), Poppet to Elbow
(MCM & MIE Inline) 0 & 2 in. Risers Cut to 22 In. (Included in 2 in. Riser Kit Ref #23) (See Note)HOSE, (45 Inches Bulk), Poppet to Elbow
(MCM & MIE Inline) 0 & 2 in. Risers Cut to 22 In. (Included in 2 in. Riser Kit Ref #23) (See Note) -
3632-8M0062669 HOSE, (45 Inches Bulk), Poppet to Elbow
(MCM & MIE Inline) 4,6,8 in. Risers Cut to 26 in. (Included in Riser Kit Ref #23) (See Note)HOSE, (45 Inches Bulk), Poppet to Elbow
(MCM & MIE Inline) 4,6,8 in. Risers Cut to 26 in. (Included in Riser Kit Ref #23) (See Note) -
3632-8M0062669 HOSE, (45 Inches Bulk), Poppet to Elbow
(MIE Vdrive) 0,2,4 in. Risers Cut to 40 in. (Included in 4 in. Riser Kit Ref #23) (See Note)HOSE, (45 Inches Bulk), Poppet to Elbow
(MIE Vdrive) 0,2,4 in. Risers Cut to 40 in. (Included in 4 in. Riser Kit Ref #23) (See Note) -
3632-8M0062669 HOSE, (45 Inches Bulk), Poppet to Elbow
(MIE Vdrive) 6,8 in. Risers Cut to 45 in. (Included in Riser Kit Ref #23) (See Note)HOSE, (45 Inches Bulk), Poppet to Elbow
(MIE Vdrive) 6,8 in. Risers Cut to 45 in. (Included in Riser Kit Ref #23) (See Note) -
3732-8M2004598 HOSE, To Heat Exchanger
Starboard (See Note)HOSE, To Heat Exchanger
Starboard (See Note) -
3732-8M2004608 HOSE, To Heat Exchanger
Port (See Note)HOSE, To Heat Exchanger
Port (See Note) -
3822-8M2016321 FITTING, Straight (3/4 x 0.5)
(MIE) (See Note)FITTING, Straight (3/4 x 0.5)
(MIE) (See Note) -
3922-8M2004390 FITTING, Straight
(MCM) (See Note)FITTING, Straight
(MCM) (See Note) -
NS54-8M2016531 CLAMP, ClosedCLAMP, Closed
-
NS10-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
