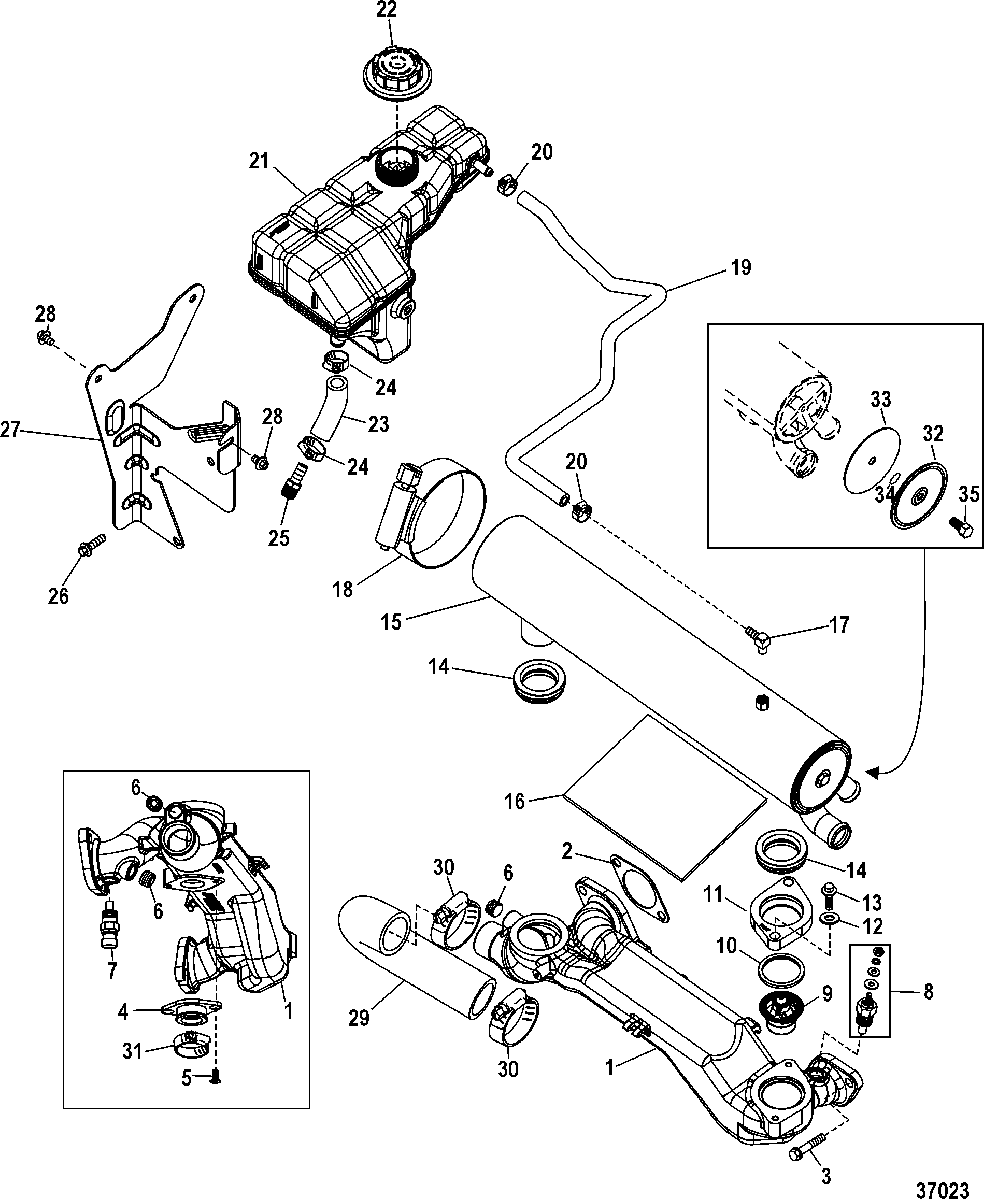

Cooling System, Fresh Water Components для Mercruiser - 8.1L INBOARD (Base) EC 0W697154 THRU 1A380251
-
№АртикулНазвание
-
1863771T CROSSOVER, CoolantCROSSOVER, Coolant
-
227-881620001 GASKET, Cylinder Head to CrossoverGASKET, Cylinder Head to Crossover
-
310-881593 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
426-861947 SEALSEAL
-
510-863609 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
622-12524 PLUG, (.375-18 x .475) BrassPLUG, (.375-18 x .475) Brass
-
7805218T SENSOR, CoolantSENSOR, Coolant
-
8806490T SENDER, TemperatureSENDER, Temperature
-
98M0076464 THERMOSTAT, 71A°C (160A°F)THERMOSTAT, 71A°C (160A°F)
-
1025-865078 SEAL, ThermostatSEAL, Thermostat
-
11861949T RETAINER, ThermostatRETAINER, Thermostat
-
1212-12038 WASHERWASHER
-
1310-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1426-865066 SEAL, Heat Exchanger to CrossoverSEAL, Heat Exchanger to Crossover
-
15863903A01 HEAT EXCHANGERHEAT EXCHANGER
-
NS37-863355 DECAL, Caution, Heat ExchangerDECAL, Caution, Heat Exchanger
-
16863392 PAD, Heat ExchangerPAD, Heat Exchanger
-
1722-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
1854-815504280 CLAMP, Worm GearCLAMP, Worm Gear
-
1932-863303 HOSE, Coolant BleedHOSE, Coolant Bleed
-
2054-815504206 CLAMP, Worm GearCLAMP, Worm Gear
-
21861944A1 RESERVOIR, CoolantRESERVOIR, Coolant
-
22862863 CAP, Coolant ReservoirCAP, Coolant Reservoir
-
2332-863304 HOSE, Reservoir to CrossoverHOSE, Reservoir to Crossover
-
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2522-8552141 FITTING, Straight HoseFITTING, Straight Hose
-
2610-863388 SCREW, (M10 x 16)SCREW, (M10 x 16)
-
27862986 BRACKET, Coolant ReservoirBRACKET, Coolant Reservoir
-
2810-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
2932-865221 HOSE, Crossover to PumpHOSE, Crossover to Pump
-
3054-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
3154-815504221 CLAMP, HoseCLAMP, Hose
-
32891717 COVER, Heat Exchanger End
Use With 3.75 Inch Diameter Heat ExchangerCOVER, Heat Exchanger End
Use With 3.75 Inch Diameter Heat Exchanger -
3327-891716 GASKET, Heat Exchanger Cover
Use With 3.75 Inch Diameter Heat ExchangerGASKET, Heat Exchanger Cover
Use With 3.75 Inch Diameter Heat Exchanger -
3425-8M0039163 O-RING, SpecialO-RING, Special
-
3510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
