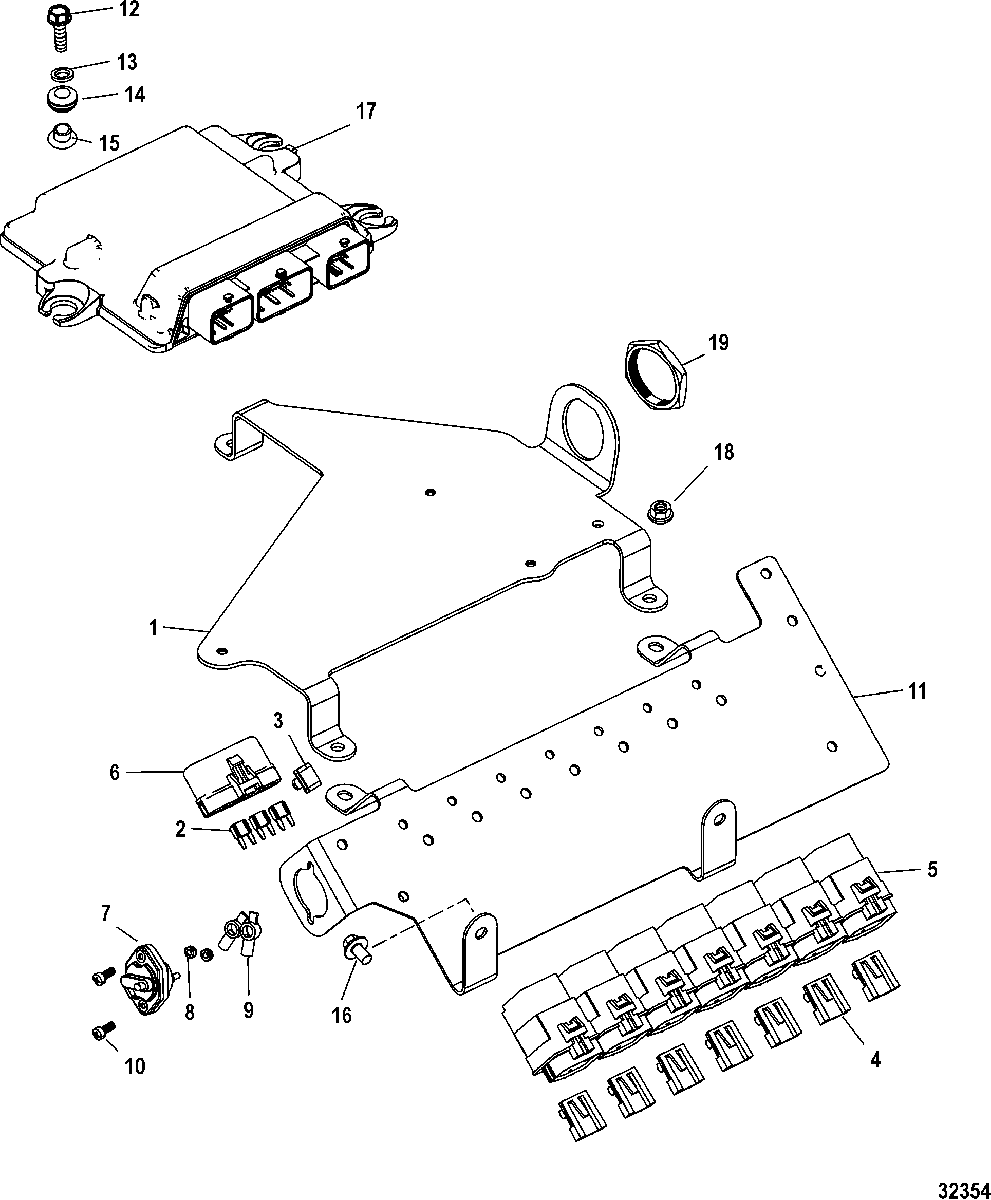

PCM and Bracket для Mercruiser - 8.1L INBOARD (Base) EC 0W697154 THRU 1A380251
-
№АртикулНазвание
-
NS84-8M0046180 HARNESS ASSEMBLY, Engine
Mechanical Throttle and ShiftHARNESS ASSEMBLY, Engine
Mechanical Throttle and Shift -
NS84-8M0046178 HARNESS ASSEMBLY, Engine
Digital Throttle and ShiftHARNESS ASSEMBLY, Engine
Digital Throttle and Shift -
NS84-865769T01 HARNESS ASSEMBLY, Transmission
Mechanical Throttle and ShiftHARNESS ASSEMBLY, Transmission
Mechanical Throttle and Shift -
NS84-865676T02 HARNESS ASSEMBLY, Transmission
Digital Throttle and ShiftHARNESS ASSEMBLY, Transmission
Digital Throttle and Shift -
1879288T60 BRACKET, PCMBRACKET, PCM
-
288-83296910 FUSE, Mini - Red - 10 AmpereFUSE, Mini - Red - 10 Ampere
-
288-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
288-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
354-804352 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
486-865205 CLIP, Mechanical Throttle and ShiftCLIP, Mechanical Throttle and Shift
-
486-865205 CLIP, Digital Throttle and ShiftCLIP, Digital Throttle and Shift
-
5882751A04 RELAY ASSEMBLY
Mechanical Throttle and ShiftRELAY ASSEMBLY
Mechanical Throttle and Shift -
5882751A04 RELAY ASSEMBLY
Digital Throttle and ShiftRELAY ASSEMBLY
Digital Throttle and Shift -
6831960 COVER, Fuse
Digital Throttle and ShiftCOVER, Fuse
Digital Throttle and Shift -
6858754 COVER, Fuse
Mechanical Throttle and ShiftCOVER, Fuse
Mechanical Throttle and Shift -
788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
811-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
985-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
1010-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
11866399T BRACKET, Relay, ConnectorBRACKET, Relay, Connector
-
1210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1425-834985 GROMMETGROMMET
-
1523-856954 BUSHING, Electrical PlateBUSHING, Electrical Plate
-
1610-4010610 SCREW, (M6 x 10) Stainless Steel, To CollectorSCREW, (M6 x 10) Stainless Steel, To Collector
-
178M0050545 PCM, Propulsion Control Module, Base
Mechanical Throttle and ShiftPCM, Propulsion Control Module, Base
Mechanical Throttle and Shift -
178M0050549 PCM, Propulsion Control Module, Base
Digital Throttle and ShiftPCM, Propulsion Control Module, Base
Digital Throttle and Shift -
178M0050548 PCM, Propulsion Control Module, High Output
Mechanical Throttle and ShiftPCM, Propulsion Control Module, High Output
Mechanical Throttle and Shift -
178M0050551 PCM, Propulsion Control Module, High Output
Digital Throttle and ShiftPCM, Propulsion Control Module, High Output
Digital Throttle and Shift -
1811-4002030 NUT, (M8)NUT, (M8)
-
1911-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
Все узлы модели:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A380209 & Below
- Cool Fuel System, SN 1A380210 & Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water, Starboard (SN 1A380209 & Below)
- Cooling System, Raw Water, Starboard (SN 1A380210 & Above)
- Cylinder Head
- Engine Cover
- Exhaust Manifold
- Flywheel Housing
- Fuel Module Components -Bravo(SN 1A380209 & Below)
- Fuel Module Components -Bravo(SN 1A380210 & Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Oil Pan and Drain System
- • PCM and Bracket
- Remote Oil System
- Seawater Pump
- Service and Support Material
- Starter and Alternator
- Throttle Body, Digital Throttle, Shift
- Throttle Body, Mechanical Throttle-Shift
- Transmission and Engine Mounting(Borg Warner 5000)
- Transmission and Engine Mounting(Borg Warner 72)
- Transmission and Engine Mounting(Hurth 630/800)
- Transmission and Related Parts(Borg Warner 5000)
- Transmission and Related Parts(Borg Warner 72)
- Transmission and Related Parts(Hurth 630/800)
- Water Drain System
- Wiring Harness and Lifting Brackets
