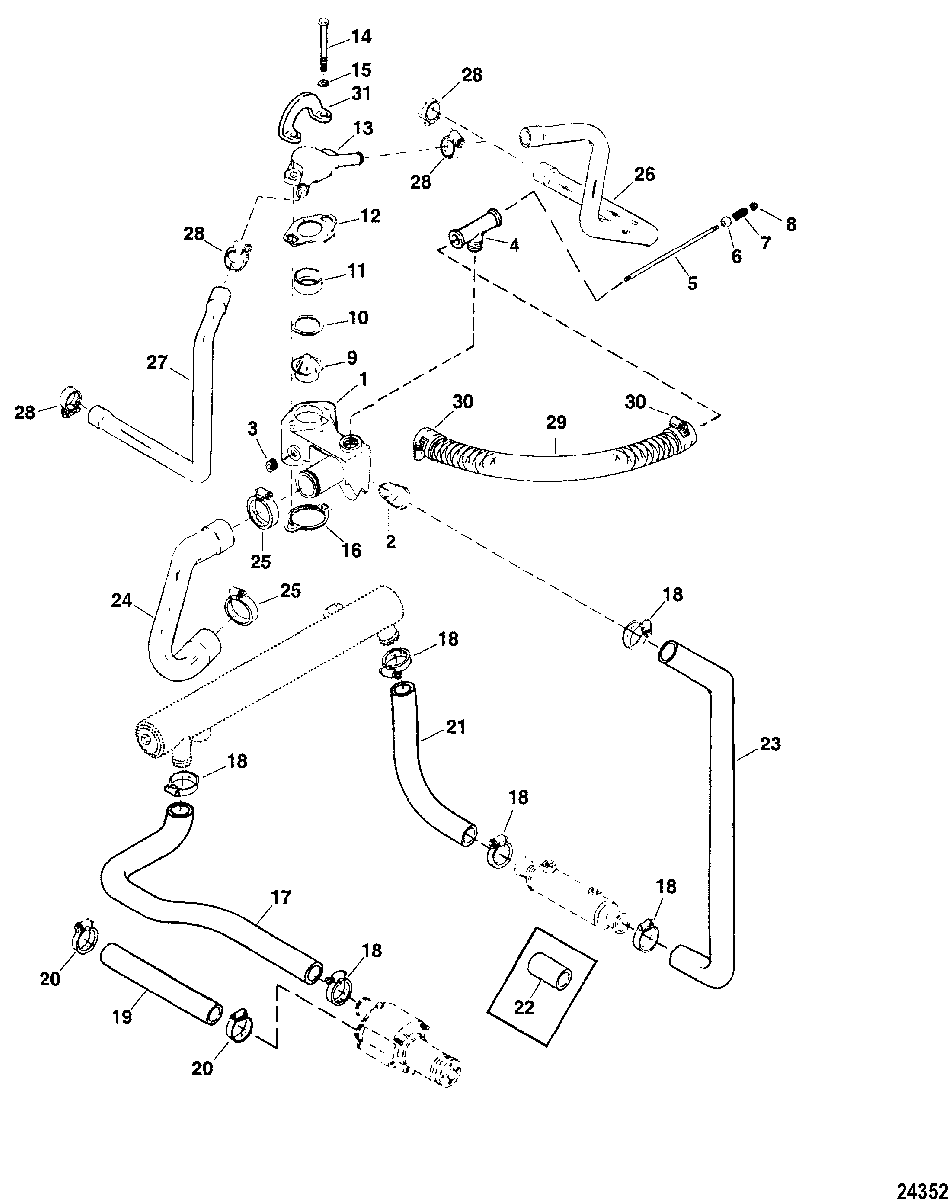

Thermostat Housing для Mercruiser - 540 Stroker 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    87290A4 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    23-47511 SLEEVE
    SLEEVE
  • 3
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 4
    22-98477A2 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 5
    10-98476 SCREW, (#10-32 x 6.00)
    SCREW, (#10-32 x 6.00)
  • 6
    30-98475 BALL, Nylon
    BALL, Nylon
  • 7
    24-75533 SPRING
    SPRING
  • 8
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    8M0089715 THERMOSTAT (140 Degrees)
    THERMOSTAT (140 Degrees)
  • 10
    27-47510 GASKET, Thermostat
    GASKET, Thermostat
  • 11
    23-47508T SLEEVE, Thermostat
    SLEEVE, Thermostat
  • 12
    27-418122 GASKET, Thermostat Cover
    GASKET, Thermostat Cover
  • 13
    47441A1 COVER, Thermostat
    COVER, Thermostat
  • 14
    10-14164 SCREW, (.375-16 x 4.37)
    SCREW, (.375-16 x 4.37)
  • 15
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 16
    27-530451 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 17
    32-848178 HOSE, Sea Water Pump To Cooler
    HOSE, Sea Water Pump To Cooler
  • 18
    54-180766 CLAMP, Worm Gear
    (PLUG-IN MODELS)
    CLAMP, Worm Gear
    (PLUG-IN MODELS)
  • 19
    32-1743565 HOSE, (38.00 Inches Bulk), Sea Pump To Drive Unit
    (PLUG-IN MODELS)
    HOSE, (38.00 Inches Bulk), Sea Pump To Drive Unit
    (PLUG-IN MODELS)
  • 19
    32-13556A1 HOSE KIT, (10.00 Feet)
    (DRIVELINE MODELS)
    HOSE KIT, (10.00 Feet)
    (DRIVELINE MODELS)
  • 20
    54-180766 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    32-848956 HOSE, Molded, Oil Cooler To Oil Cooler
    HOSE, Molded, Oil Cooler To Oil Cooler
  • 22
    22-13177 TUBE, Water Hose
    (NON POWER STEERING)
    TUBE, Water Hose
    (NON POWER STEERING)
  • 23
    32-896998 HOSE, Molded, Oil Cooler To Thermostat Housing
    HOSE, Molded, Oil Cooler To Thermostat Housing
  • 24
    32-897181 HOSE, Thermostat Housing To Water Pump
    HOSE, Thermostat Housing To Water Pump
  • 25
    54-180768 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 26
    32-848955 HOSE, Thermostat Cover
    (PORT)
    HOSE, Thermostat Cover
    (PORT)
  • 27
    32-848954 HOSE, Thermostat Cover
    (STARBOARD)
    HOSE, Thermostat Cover
    (STARBOARD)
  • 28
    54-180764 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 29
    NLA No Longer Available, Hose Assembly
    No Longer Available, Hose Assembly
  • 30
    54-84775218 COVER, Clamp, Hose
    COVER, Clamp, Hose
  • 31
    12552 LIFTING EYE
    LIFTING EYE
  • -
    27-818572A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
