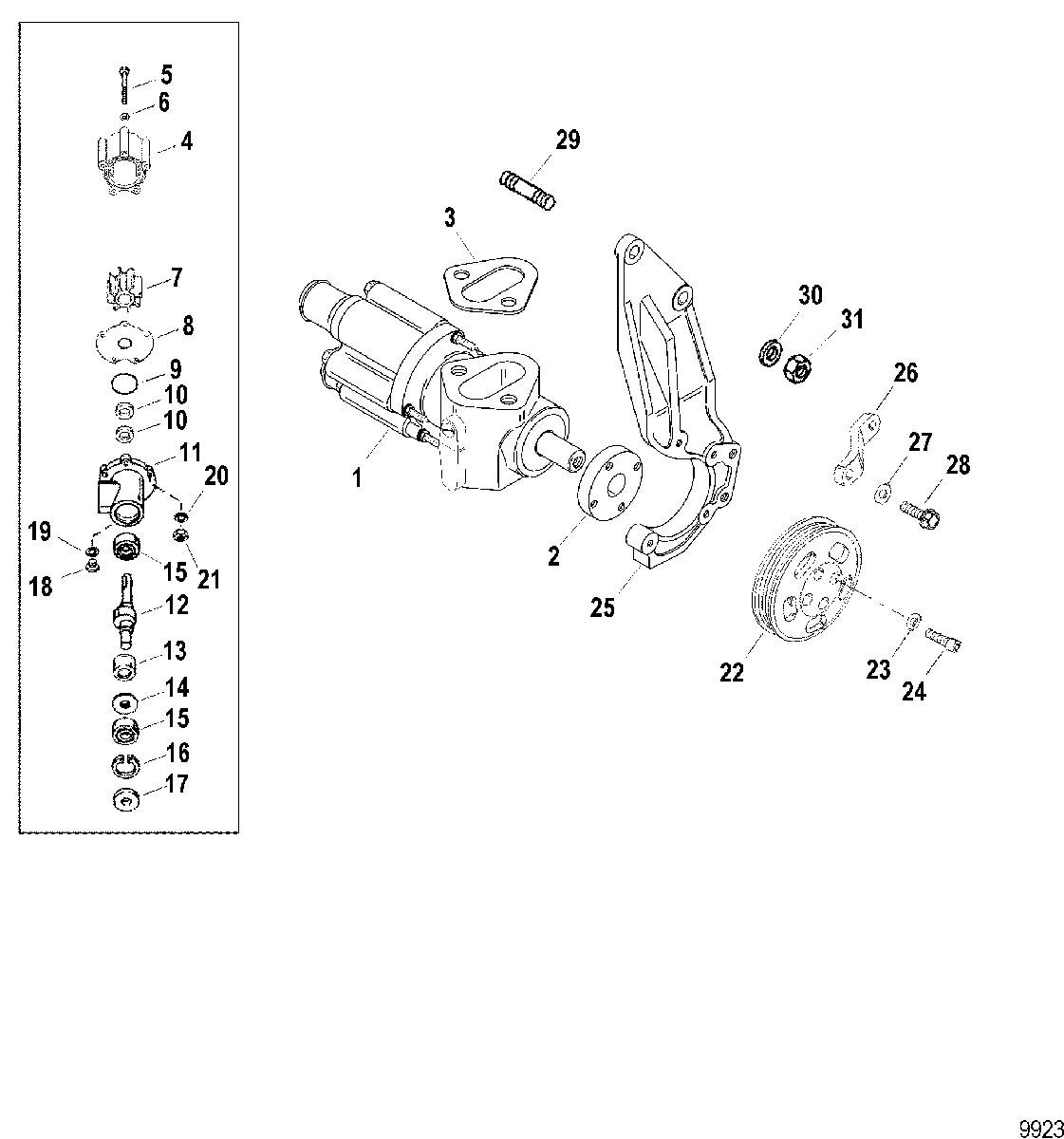

Sea Water Pump Assembly для Mercruiser - 540 Stroker 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    46-8M0084270 PUMP ASSEMBLY, Sea Water
    PUMP ASSEMBLY, Sea Water
  • 2
    47530 HUB, Pump Pulley
    HUB, Pump Pulley
  • 3
    27-34213 GASKET
    GASKET
  • 4
    46-807151A14 BODY/IMPELLER KIT
    BODY/IMPELLER KIT
  • 5
    10-74822 SCREW, (.312-18 x 3.500)
    SCREW, (.312-18 x 3.500)
  • 6
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 7
    47-59362T1 IMPELLER
    IMPELLER
  • 8
    94576 WEAR PLATE
    WEAR PLATE
  • 9
    25-94288 QUAD RING
    QUAD RING
  • 10
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 11
    NSS NOT SOLD SEPARATE, Sea Water Pump Housing
    NOT SOLD SEPARATE, Sea Water Pump Housing
  • 12
    818366A1 SHAFT KIT
    SHAFT KIT
  • 13
    818745A1 RING KIT, Slip
    RING KIT, Slip
  • 14
    12-89664 WASHER, (.920 x 1.750 x .060)
    WASHER, (.920 x 1.750 x .060)
  • 15
    30-72961 BEARING, Ball
    BEARING, Ball
  • 16
    53-23720 RING, Retaining
    RING, Retaining
  • 17
    26-806930 SEAL
    SEAL
  • 18
    10-79953Q04 SCREW KIT, Drain
    SCREW KIT, Drain
  • 19
    12-191833 WASHER, Seal
    WASHER, Seal
  • 20
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 21
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 22
    899743T PULLEY, Sea Water Pump/Fuel Pump - Blue
    PULLEY, Sea Water Pump/Fuel Pump - Blue
  • 23
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 24
    10-849377 SCREW, (.312-24 x .750) Stainless Steel
    SCREW, (.312-24 x .750) Stainless Steel
  • 25
    818368T1 BRACKET, Sea Water Pump
    BRACKET, Sea Water Pump
  • 26
    849981 BRACKET, Sea Water Pump
    BRACKET, Sea Water Pump
  • 27
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 28
    10-805559 SCREW, (.375-16 x .875) Stainless Steel
    SCREW, (.375-16 x .875) Stainless Steel
  • 29
    16-842441 STUD, (.437-14/.437-20 x 2.250)
    STUD, (.437-14/.437-20 x 2.250)
  • 30
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 31
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
