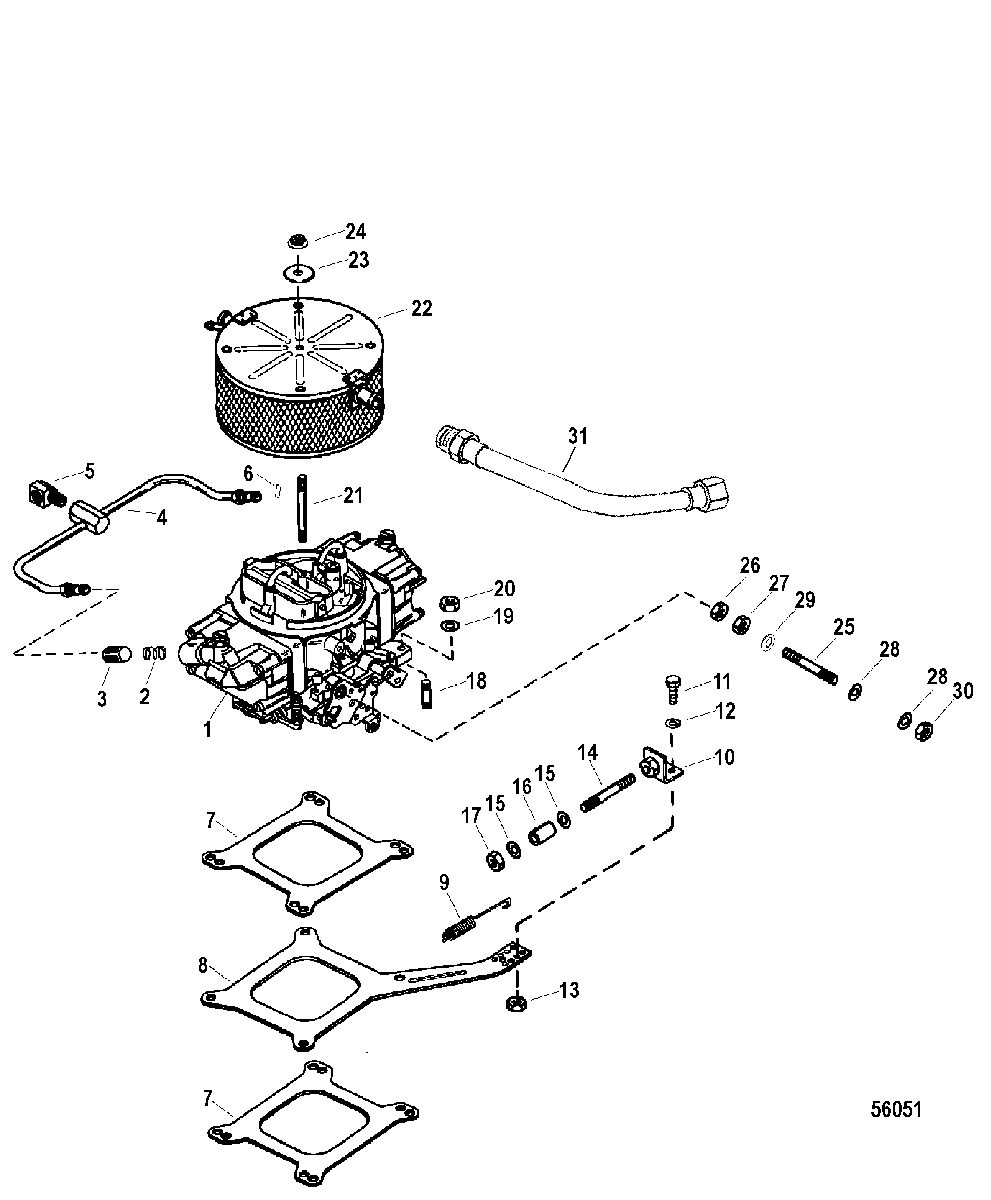

Carburetor and Linkage для Mercruiser - 540 Stroker 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    1300-8M0094191 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Filter Spring
    NOT SOLD SEPARATE, Filter Spring
  • 3
    NSS NOT SOLD SEPARATE, Filter
    NOT SOLD SEPARATE, Filter
  • 4
    32-8485911 LINE ASSEMBLY, Fuel Inlet
    LINE ASSEMBLY, Fuel Inlet
  • 5
    22-93385 FITTING, (90 Degree), Fuel Inlet Tube
    FITTING, (90 Degree), Fuel Inlet Tube
  • 6
    27-848438 GASKET, Flair (Copper)
    GASKET, Flair (Copper)
  • 7
    27-41610 GASKET, Spacer
    GASKET, Spacer
  • 8
    940701 BRACKET, Throttle
    BRACKET, Throttle
  • 9
    24-897454 SPRING, Throttle Return
    SPRING, Throttle Return
  • 10
    15017 BRACKET, Throttle
    BRACKET, Throttle
  • 11
    10-78291 SCREW, (.190-24 x .500), Throttle Bracket
    SCREW, (.190-24 x .500), Throttle Bracket
  • 12
    13-26996 LOCKWASHER, (#10) Stainless Steel, Throttle Bracket Screw
    LOCKWASHER, (#10) Stainless Steel, Throttle Bracket Screw
  • 13
    11-79989 NUT, (#10-24) Stainless Steel, Throttle Bracket Screw
    NUT, (#10-24) Stainless Steel, Throttle Bracket Screw
  • 14
    16-728091 STUD, (.250-20/.250-28 x 1.620), Cable
    STUD, (.250-20/.250-28 x 1.620), Cable
  • 15
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel, Cable Stud
    WASHER, (.255 x .620 x .030) Stainless Steel, Cable Stud
  • 16
    23-31866 SPACER, (.256 x .313 x .625), Cable Stud
    SPACER, (.256 x .313 x .625), Cable Stud
  • 17
    11-826709109 NUT, (.250-28) Stainless Steel, Cable Stud
    NUT, (.250-28) Stainless Steel, Cable Stud
  • 18
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 19
    12-848136 WASHER, (.328 x .680 x .190), Carburetor Stud
    WASHER, (.328 x .680 x .190), Carburetor Stud
  • 20
    11-29250 NUT, (.312-24), Carburetor Stud
    NUT, (.312-24), Carburetor Stud
  • 21
    16-848176 STUD, (.250-20 x 4.310), Flame Arrestor
    STUD, (.250-20 x 4.310), Flame Arrestor
  • 22
    8M0119614 FLAME ARRESTOR, 4 Inch
    FLAME ARRESTOR, 4 Inch
  • 22
    8M0119614 FLAME ARRESTOR, 3 Inch
    FLAME ARRESTOR, 3 Inch
  • 23
    12-86400 WASHER, Flame Arrestor Stud
    WASHER, Flame Arrestor Stud
  • 24
    11-35888 NUT, (.250-28) Stainless Steel, Flame Arrestor Stud
    NUT, (.250-28) Stainless Steel, Flame Arrestor Stud
  • 25
    16-8M0113178 STUD, (.250-28 x 2.00)
    Throttle Cable to Carburetor
    STUD, (.250-28 x 2.00)
    Throttle Cable to Carburetor
  • 26
    11-8267089 NUT, (.250-28), Throttle Cable Stud
    NUT, (.250-28), Throttle Cable Stud
  • 27
    12-69057 WASHER (.250-28)-Throttle Cable Stud
    WASHER (.250-28)-Throttle Cable Stud
  • 28
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 29
    23-818894 BUSHING, Throttle Cable Stud
    BUSHING, Throttle Cable Stud
  • 30
    11-8267089 NUT, (.250-28), Throttle Cable Stud
    NUT, (.250-28), Throttle Cable Stud
  • 31
    32-8485741 HOSE ASSEMBLY
    HOSE ASSEMBLY
  • NS
    37-8M0086264 DECAL, Flame Arrestor
    DECAL, Flame Arrestor
  • -
    27-818572A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
