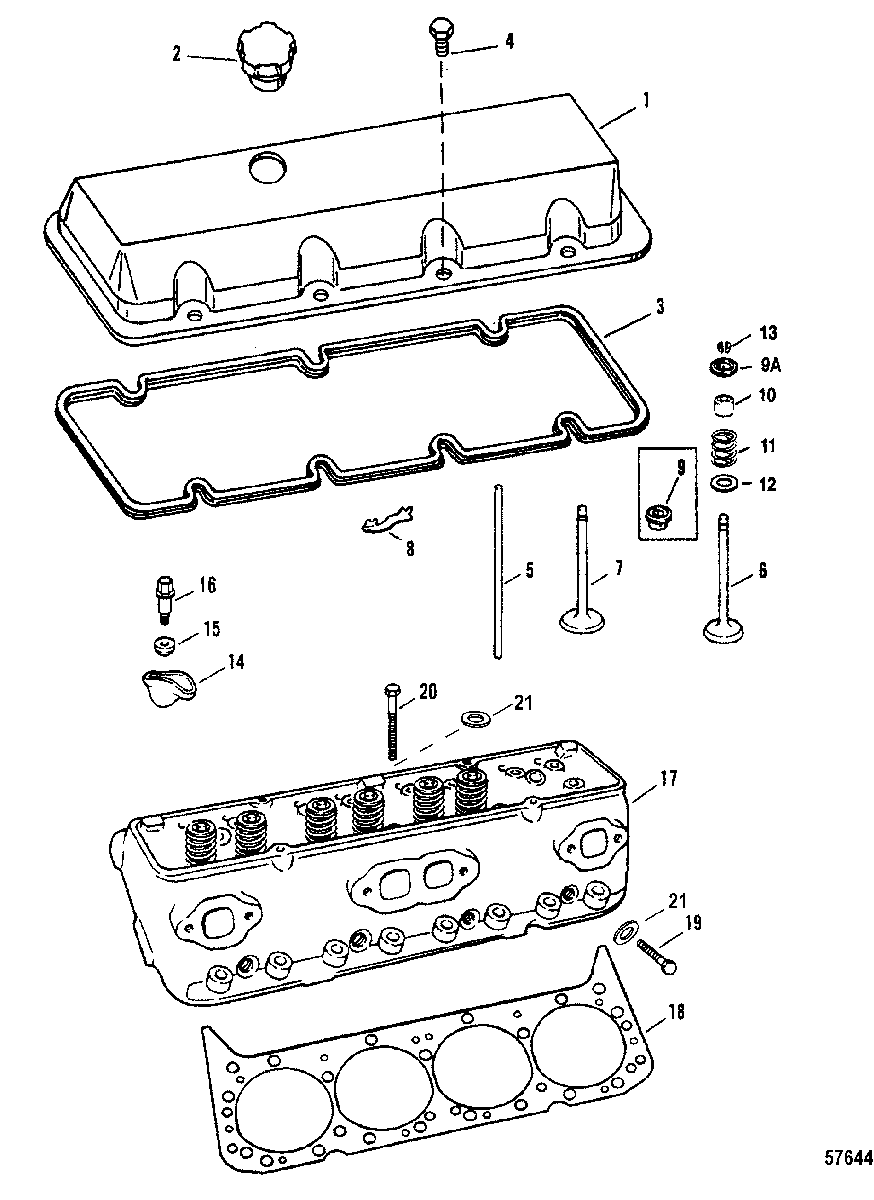

Cylinder Head and Rocker Cover для Mercruiser - 540 Stroker 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    850462 COVER
    COVER
  • 2
    36-811569 CAP, Oil Tank
    CAP, Oil Tank
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875)
    BOLT, (1/4-20 x 0.875)
  • 5
    NSS NOT SOLD SEPARATE (INLET)
    NOT SOLD SEPARATE (INLET)
  • 5
    NSS NOT SOLD SEPARATE, Push Rod (EXHAUST)
    NOT SOLD SEPARATE, Push Rod (EXHAUST)
  • 6
    NSS NOT SOLD SEPARATE (STANDARD)
    NOT SOLD SEPARATE (STANDARD)
  • 6
    NSS NOT SOLD SEPARATE (.015 O.S.)
    NOT SOLD SEPARATE (.015 O.S.)
  • 7
    NSS NOT SOLD SEPARATE (STANDARD)
    NOT SOLD SEPARATE (STANDARD)
  • 7
    NSS NOT SOLD SEPARATE (.015 O.S.)
    NOT SOLD SEPARATE (.015 O.S.)
  • 8
    881686 GUIDE
    GUIDE
  • 9
    827644A1 CAP ASSEMBLY, Valve
    CAP ASSEMBLY, Valve
  • 9A
    827644A1 CAP ASSEMBLY, Valve
    CAP ASSEMBLY, Valve
  • 10
    26-827645 SEAL, Valve
    SEAL, Valve
  • 11
    24-801879T SPRING, Valve
    SPRING, Valve
  • 12
    15-845669 SHIM, Valve Spring (.015)
    SHIM, Valve Spring (.015)
  • 13
    28-54530 KEY
    KEY
  • 14
    811591T ARM, Rocker
    ARM, Rocker
  • 15
    NSS NOT SOLD SEPARATE, Ball
    NOT SOLD SEPARATE, Ball
  • 16
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 17
    938-8M0115142 CYLINDER HEAD
    CYLINDER HEAD
  • 18
    27-811546A04 GASKET KIT, Cylinder Head
    GASKET KIT, Cylinder Head
  • 19
    10-8M0000463 SCREW, (.438-14 x 2.060) Black Oxide
    SCREW, (.438-14 x 2.060) Black Oxide
  • 20
    10-8M0000482 SCREW, (.438-14 x 4.060) Black Oxide
    SCREW, (.438-14 x 4.060) Black Oxide
  • 21
    12-841990 WASHER, Special - Black
    WASHER, Special - Black
