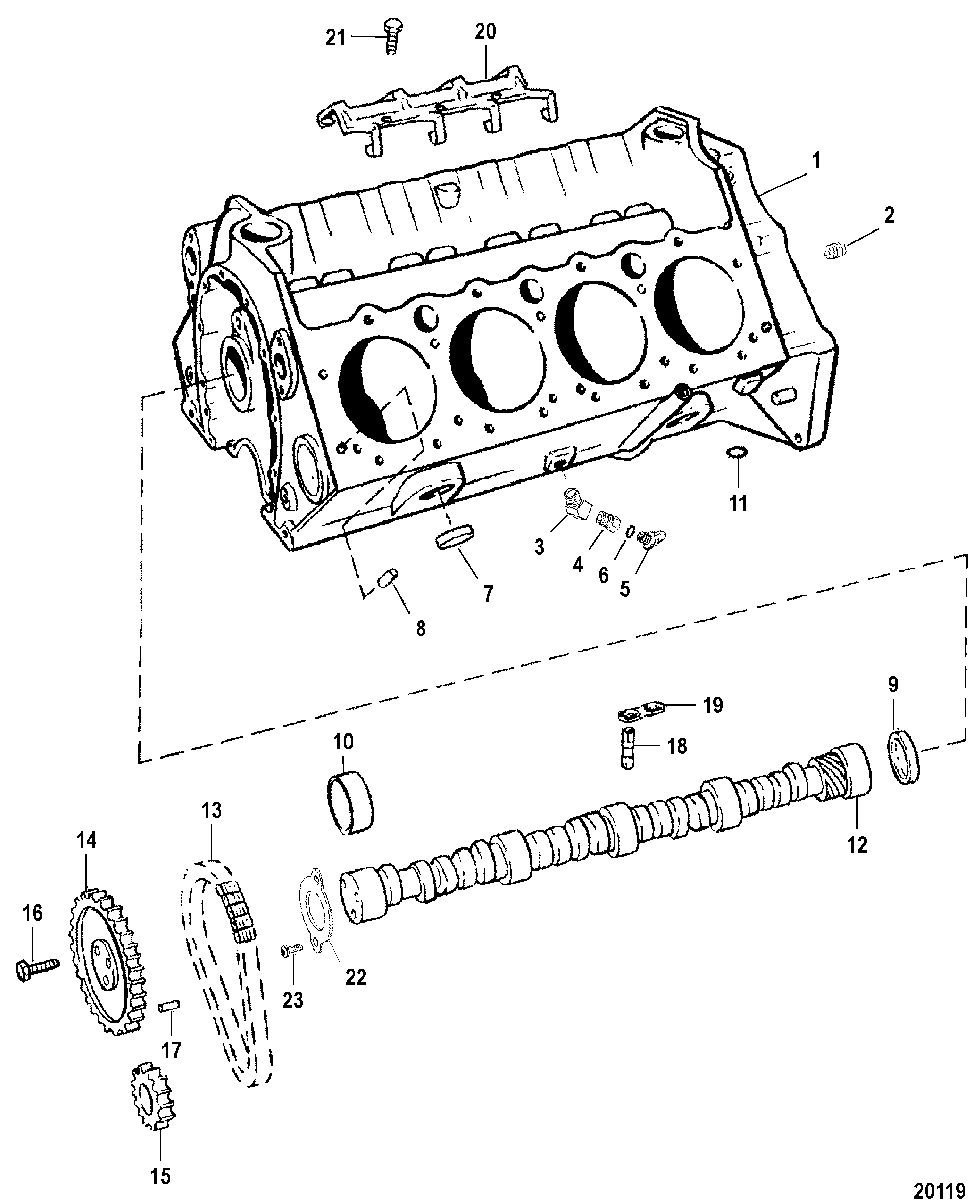

Cylinder Block and Camshaft для Mercruiser - 540 Stroker 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block, ORD Longblock
    NOT SOLD SEPARATE, Cylinder Block, ORD Longblock
  • 2
    22-32561 PLUG, Pipe - Allen Head (.250-18)
    PLUG, Pipe - Allen Head (.250-18)
  • 2
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 3
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 4
    22-860088 BUSHING
    BUSHING
  • 5
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 6
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 7
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 8
    17-52190 PIN
    PIN
  • 9
    19-94140 EXPANSION PLUG (REAR CAMSHAFT HOLE)
    EXPANSION PLUG (REAR CAMSHAFT HOLE)
  • 10
    23-85684 BEARING SET
    BEARING SET
  • 11
    25-69756 O-RING, (.549 x .103)
    O-RING, (.549 x .103)
  • 12
    431-850478T CAMSHAFT
    CAMSHAFT
  • 13
    845796T CHAIN
    CHAIN
  • 14
    43-845795T SPROCKET
    SPROCKET
  • 15
    43-845794T SPROCKET
    SPROCKET
  • 16
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 17
    17-843378 PIN, Dowel (1/4 IN. DIA.)
    PIN, Dowel (1/4 IN. DIA.)
  • 18
    850466T LIFTER, Roller
    LIFTER, Roller
  • 19
    845754 GUIDE
    GUIDE
  • 20
    8M0050807 RETAINER
    RETAINER
  • 21
    10-841389 SCREW, (.312-18 x .620)
    SCREW, (.312-18 x .620)
  • 22
    845941 RETAINER
    RETAINER
  • 23
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    8M0101598 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND
    SEALING COMPOUND
