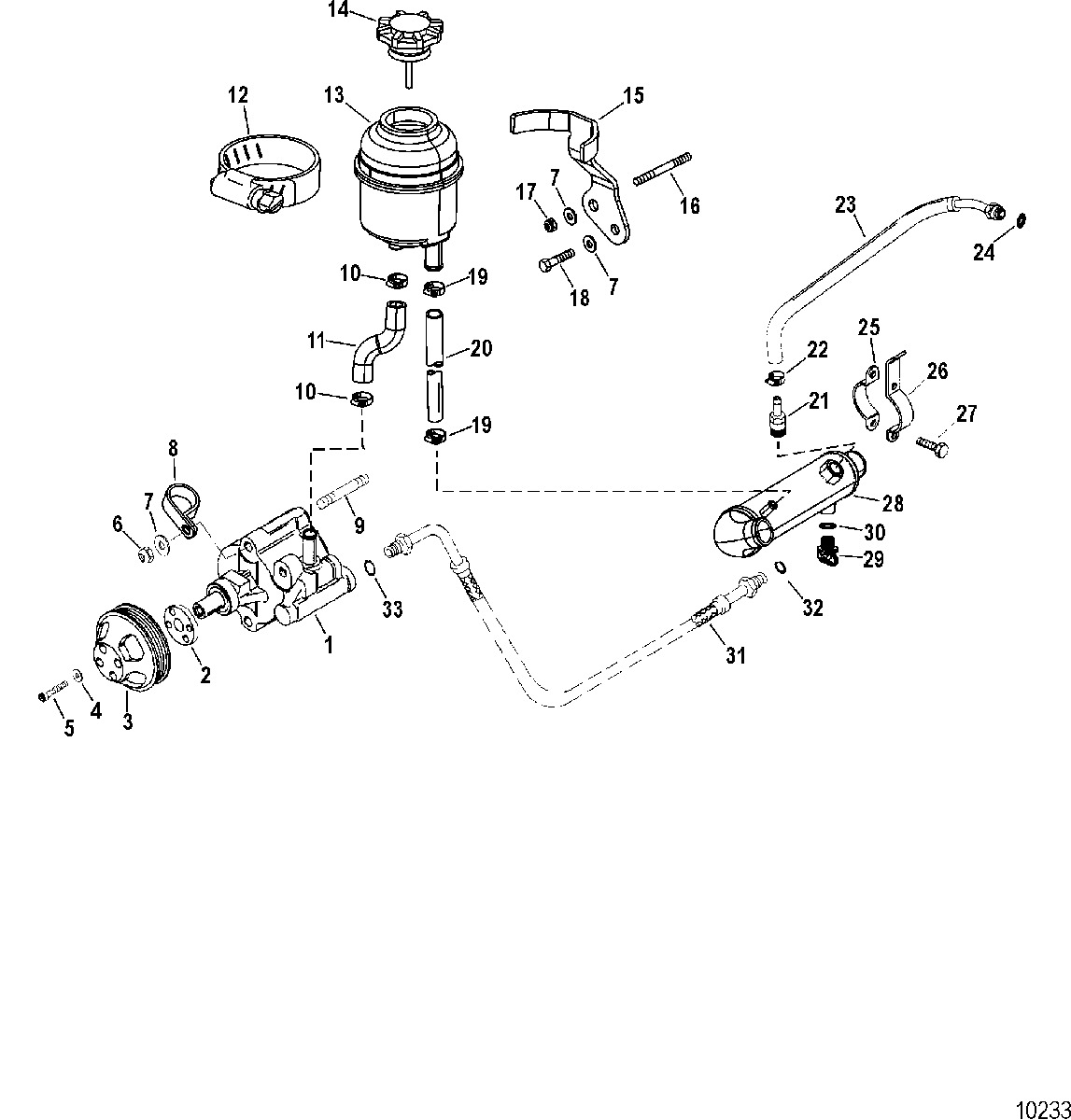

Power-Assisted Steering Components для Mercruiser - 540 Stroker 4V 1G400000 & Up

  • №
    Артикул
    Название
  • -
    849906A14 PUMP KIT, Power-Assisted Steering - Complete
    PUMP KIT, Power-Assisted Steering - Complete
  • 1
    849906A28 PUMP ASSEMBLY, Power-Assisted Steering - Black
    PUMP ASSEMBLY, Power-Assisted Steering - Black
  • 2
    47530 HUB, Pump Pulley
    HUB, Pump Pulley
  • 3
    849048T PULLEY, Blue
    PULLEY, Blue
  • 4
    12-8M0042642 WASHER, (.323 x .562 x .063)
    WASHER, (.323 x .562 x .063)
  • 5
    10-849377 SCREW, (.312-24 x .750) Stainless Steel
    SCREW, (.312-24 x .750) Stainless Steel
  • 6
    11-82671013 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 7
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 8
    54-62494 CLIP
    CLIP
  • 9
    16-849375 STUD, (.375-24 x 3.750)
    STUD, (.375-24 x 3.750)
  • 10
    54-180761 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    32-845620 HOSE, (10.62 Inches), Reservoir To Pump
    HOSE, (10.62 Inches), Reservoir To Pump
  • 12
    54-18076016 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 13
    865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
    RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
  • 14
    8M0121096 CAP, Oil Reservoir - Black
    CAP, Oil Reservoir - Black
  • 15
    842976 BRACKET
    BRACKET
  • 16
    16-842441 STUD, (.437-14/.437-20 x 2.250)
    STUD, (.437-14/.437-20 x 2.250)
  • 17
    11-82671013 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 18
    10-94247 SCREW, (.375-16 x .750) Stainless Steel
    SCREW, (.375-16 x .750) Stainless Steel
  • 19
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 20
    32-8M0062341 HOSE, (53.00 Inches Bulk), Cut 19.50 Inches - Reservoir To Cooler
    HOSE, (53.00 Inches Bulk), Cut 19.50 Inches - Reservoir To Cooler
  • 21
    22-70834 CONNECTOR, (.375-18) Straight - Brass
    CONNECTOR, (.375-18) Straight - Brass
  • 22
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 23
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 46.00 Inches
    HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 46.00 Inches
  • 24
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 25
    563281 BRACKET, Oil Cooler - Short Style With Weldnut
    BRACKET, Oil Cooler - Short Style With Weldnut
  • 26
    63820F3 BRACKET, Oil Cooler - Long Style
    BRACKET, Oil Cooler - Long Style
  • 27
    10-817505 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 28
    849291 COOLER, Power Steering Oil
    COOLER, Power Steering Oil
  • 29
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 30
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 31
    32-84243550 HOSE ASSEMBLY, Hi Pressure - Pump To Booster
    HOSE ASSEMBLY, Hi Pressure - Pump To Booster
  • 32
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 33
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
