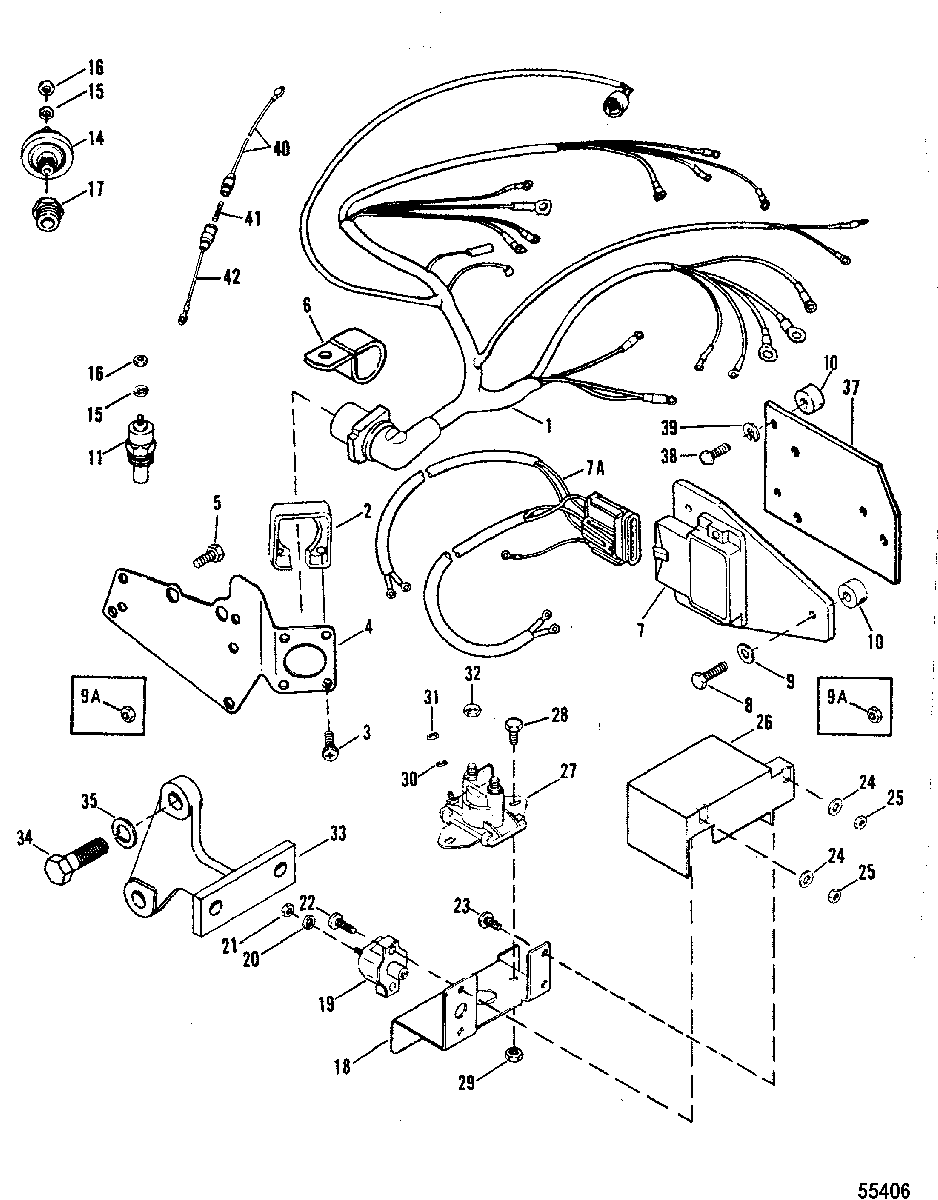

WIRING HARNESS, ELECTRICAL AND IGNITION для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068

  • №
    Артикул
    Название
  • 1
    84-96020A6 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    98493A2 BRACKET
    BRACKET
  • 5
    10-65746 SCREW, (.250-20 x .750) (CAST IRON EXHAUST MANIFOLD)
    SCREW, (.250-20 x .750) (CAST IRON EXHAUST MANIFOLD)
  • 6
    54-816398 CLIP (NEW DESIGN)
    CLIP (NEW DESIGN)
  • 7
    15248A1 MODULE KIT, Ignition (AMPLIFIER)
    MODULE KIT, Ignition (AMPLIFIER)
  • 7A
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 8
    10-76630 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 9A
    11-64015 NUT, (.250-20) (STAINLESS STEEL EXHAUST ELBOW)
    NUT, (.250-20) (STAINLESS STEEL EXHAUST ELBOW)
  • 10
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
  • 11
    97258A1 SENDER ASSEMBLY (1/2-14)
    SENDER ASSEMBLY (1/2-14)
  • 11
    806490T SENDER ASSEMBLY, Water Temperature (3/8-18)
    SENDER ASSEMBLY, Water Temperature (3/8-18)
  • 11
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 14
    8M0068784 SENDER
    SENDER
  • 14
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 16
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 17
    22-64013 FITTING, (.375 Male To .125 Female)
    FITTING, (.375 Male To .125 Female)
  • 18
    97163 BRACKET
    BRACKET
  • 19
    88-11178A01 BREAKER, Circuit - 50 Ampere (50 AMP)
    BREAKER, Circuit - 50 Ampere (50 AMP)
  • 20
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 21
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 22
    10-45862 SCREW, (#10-32 x .875) (7/8")
    SCREW, (#10-32 x .875) (7/8")
  • 23
    10-22028 SCREW, (#10-32 x .50)
    SCREW, (#10-32 x .50)
  • 24
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 25
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 26
    85-96819T INSULATOR
    INSULATOR
  • 27
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 28
    10-96138 SCREW, (1/4-28 x 5/8) (5/8")
    SCREW, (1/4-28 x 5/8) (5/8")
  • 29
    11-20088 NUT
    NUT
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 31
    11-26419 NUT, (#8-32) Brass (8-32)
    NUT, (#8-32) Brass (8-32)
  • 32
    11-94330 NUT, (.250-20) Brass (1/4-20)
    NUT, (.250-20) Brass (1/4-20)
  • 33
    96940T BRACKET
    BRACKET
  • 34
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4") 3/8-16 THREAD
    SCREW, (.375-16 x 1.250) (1-1/4") 3/8-16 THREAD
  • 35
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 34
    10-47462 SCREW, (.437-14 x 1.250) (1-1/4") 7/16-14 THREAD
    SCREW, (.437-14 x 1.250) (1-1/4") 7/16-14 THREAD
  • 35
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 37
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (LONG - RED)
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (LONG - RED)
  • 38
    88-79091 FUSE, 20 Ampere (20 AMP)
    FUSE, 20 Ampere (20 AMP)
  • 39
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red (SHORT - RED)
    CABLE ASSEMBLY, (5.00 Inches) Red (SHORT - RED)
