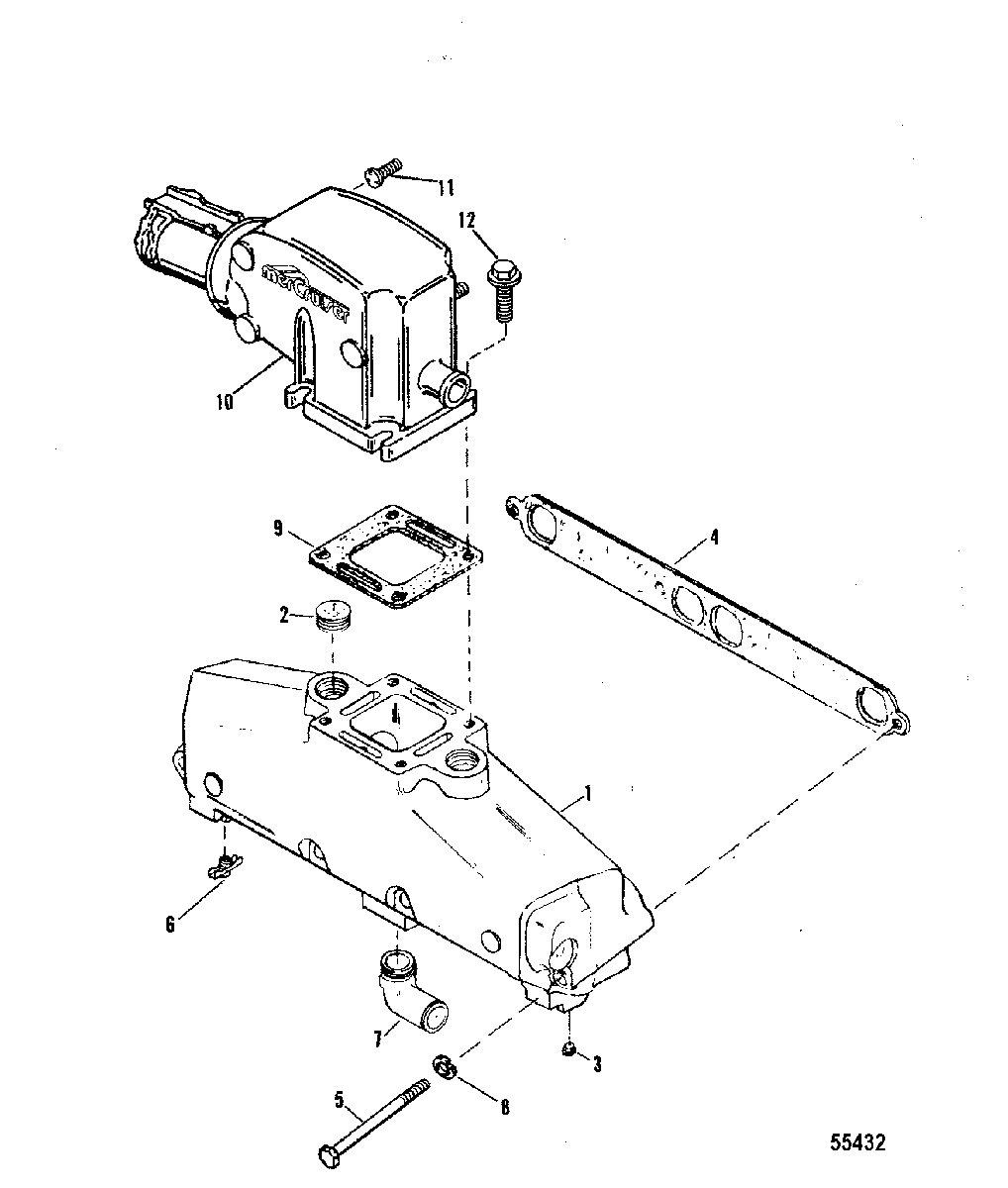

EXHAUST MANIFOLD AND EXHAUST ELBOW STAINLESS STEEL для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 4
    27-46820 GASKET
    GASKET
  • 5
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4")
    SCREW, (.375-16 x 1.250) (1-1/4")
  • 5
    10-48424 SCREW, (.375-16 x 1.620) (1-5/8")
    SCREW, (.375-16 x 1.620) (1-5/8")
  • 6
    22-16951Q1 COCK ASSEMBLY
    COCK ASSEMBLY
  • 7
    22-36305T ELBOW, (90 Degrees) (90 )
    ELBOW, (90 Degrees) (90 )
  • 7
    22-866725 FITTING, Straight (STRAIGHT)
    FITTING, Straight (STRAIGHT)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    27-863724 GASKET (STANDARD COOLING)
    GASKET (STANDARD COOLING)
  • 10
    816900A5 ELBOW ASSEMBLY, Exhaust (PORT)
    ELBOW ASSEMBLY, Exhaust (PORT)
  • 10
    816900A9 ELBOW ASSEMBLY (STARBOARD)
    ELBOW ASSEMBLY (STARBOARD)
  • 11
    16-818168A1 STUD KIT (INCLUDES 3 STUDS)
    STUD KIT (INCLUDES 3 STUDS)
  • 12
    10-865982005 SCREW, (.375-16 x 1.00) (1")
    SCREW, (.375-16 x 1.00) (1")
  • 12
    10-668631 SCREW, (3/8-16 x 2.50) (2-1/2)
    SCREW, (3/8-16 x 2.50) (2-1/2)
