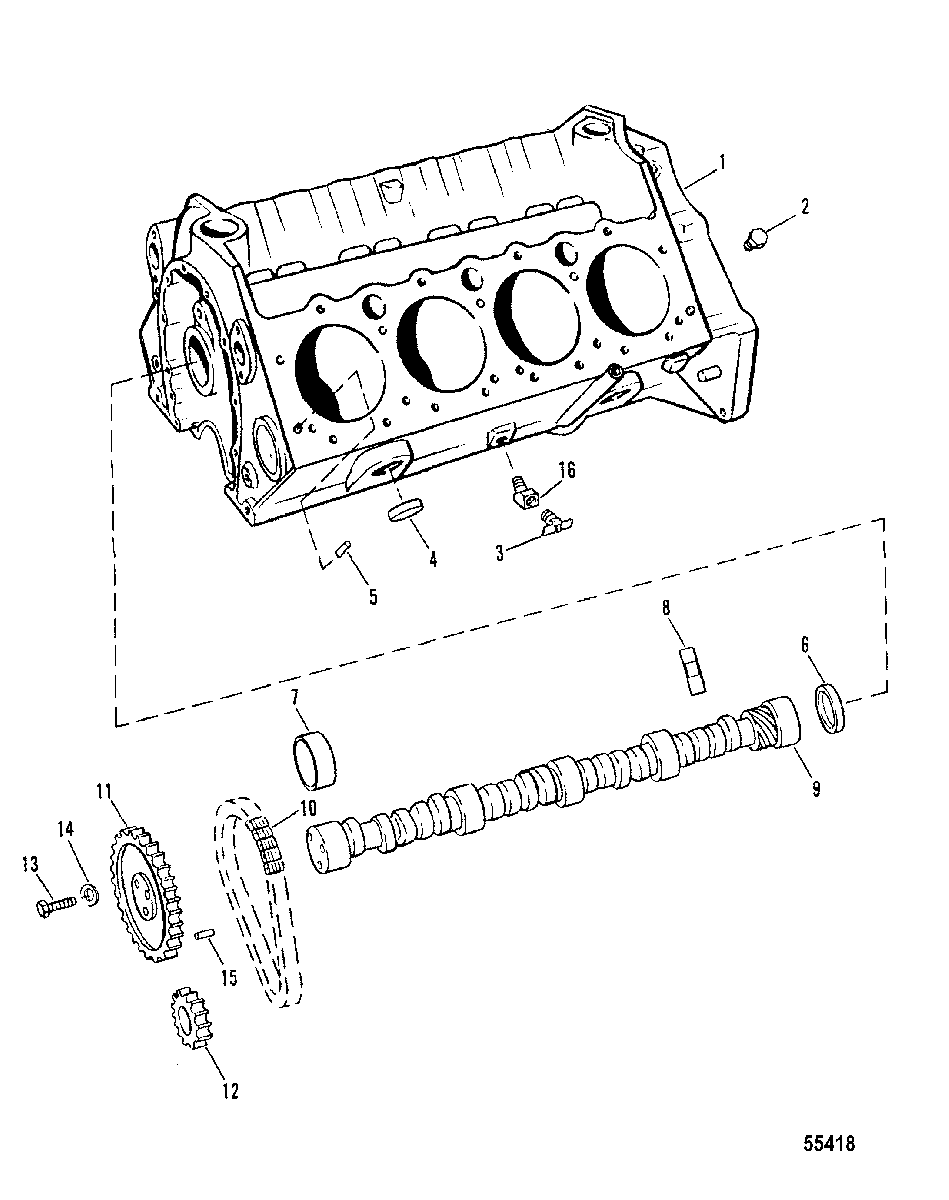

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068

  • №
    Артикул
    Название
  • 1
    842-9638 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PLUG, (.250-18 x .41) (1/4")
    PLUG, (.250-18 x .41) (1/4")
  • 2
    22-12524 PLUG, (.375) (3/8")
    PLUG, (.375) (3/8")
  • 3
    22-16951Q1 COCK ASSEMBLY
    COCK ASSEMBLY
  • 4
    22-69300 PLUG, EXPANSION - BLOCK
    PLUG, EXPANSION - BLOCK
  • 5
    17-52190 PIN, DOWEL CYLINDER HEAD
    PIN, DOWEL CYLINDER HEAD
  • 6
    19-94140 EXPANSION PLUG, EXPANSION - CAMSHAFT
    EXPANSION PLUG, EXPANSION - CAMSHAFT
  • 7
    23-85684 BEARING SET, UNIT - CAMSHAFT
    BEARING SET, UNIT - CAMSHAFT
  • 8
    811583 LIFTER, HYDRAULIC VALVE
    LIFTER, HYDRAULIC VALVE
  • 9
    431-9830 CAMSHAFT
    CAMSHAFT
  • 10
    61728 CHAIN, TIMING
    (Double Roller Chain)
    CHAIN, TIMING
    (Double Roller Chain)
  • 10
    845796T CHAIN, TIMING
    (Single Roller Chain)
    CHAIN, TIMING
    (Single Roller Chain)
  • 11
    43-61726 SPROCKET, CAMSHAFT
    (Double Roller Chain)
    SPROCKET, CAMSHAFT
    (Double Roller Chain)
  • 11
    43-811578 SPROCKET, CAMSHAFT
    (Single Roller Chain)
    SPROCKET, CAMSHAFT
    (Single Roller Chain)
  • 12
    43-61727 SPROCKET, CRANKSHAFT
    (Double Roller Chain)
    SPROCKET, CRANKSHAFT
    (Double Roller Chain)
  • 12
    43-845794T SPROCKET, CRANKSHAFT
    (Single Roller Chain)
    SPROCKET, CRANKSHAFT
    (Single Roller Chain)
  • 13
    10-8M0043993 SCREW, (.312-18 x .750), CAMSHAFT SPROCKET (3/4")
    SCREW, (.312-18 x .750), CAMSHAFT SPROCKET (3/4")
  • 14
    12-848136 WASHER, CAMSHAFT SPROCKET SCREW
    WASHER, CAMSHAFT SPROCKET SCREW
  • 15
    17-843378 PIN, Dowel (1/4 In. Diameter), DOWEL - CAMSHAFT SPROCKET
    PIN, Dowel (1/4 In. Diameter), DOWEL - CAMSHAFT SPROCKET
  • 16
    22-37682 FITTING, Elbow (45 Degree) , CYLINDER BLOCK (45 )
    FITTING, Elbow (45 Degree) , CYLINDER BLOCK (45 )
