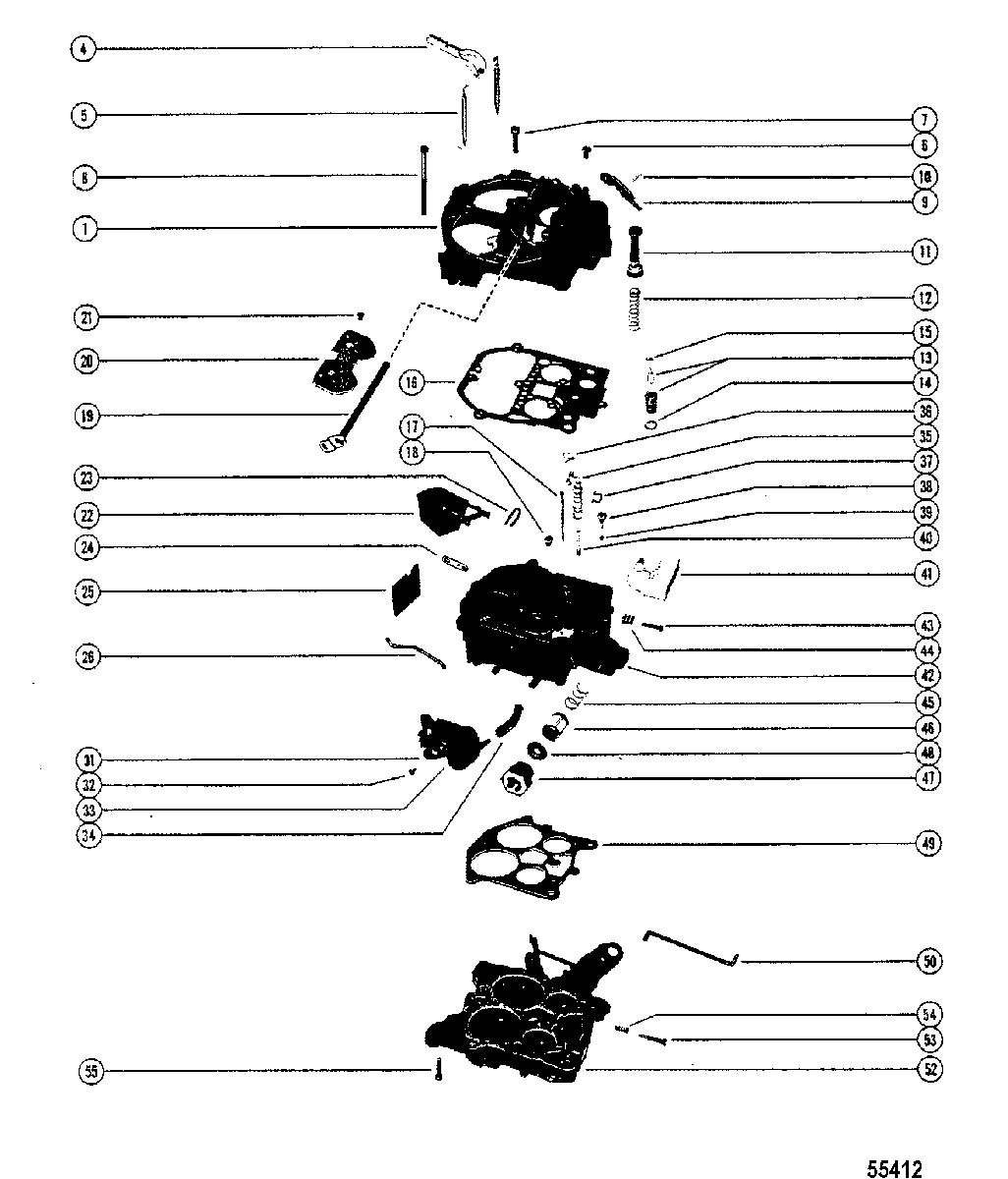

CARBURETOR для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068

  • №
    Артикул
    Название
  • -
    1347-804625R02 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 1
    NSS NOT SOLD SEPARATE, Air Horn Assembly
    NOT SOLD SEPARATE, Air Horn Assembly
  • 4
    NSS NOT SOLD SEPARATE, Holder Kit (Rochester #7034522)
    NOT SOLD SEPARATE, Holder Kit (Rochester #7034522)
  • 5
    NSS NOT SOLD SEPARATE, Metering Rod (Rochester #7046010)
    NOT SOLD SEPARATE, Metering Rod (Rochester #7046010)
  • 6
    1397-8557 SCREW KIT, AIR HORN TO FLOAT BOWL (3/8")
    SCREW KIT, AIR HORN TO FLOAT BOWL (3/8")
  • 7
    1397-8557 SCREW KIT, AIR HORN TO FLOAT BOWL (1")
    SCREW KIT, AIR HORN TO FLOAT BOWL (1")
  • 8
    1397-8557 SCREW KIT, AIR HORN TO FLOAT BOWL (3")
    SCREW KIT, AIR HORN TO FLOAT BOWL (3")
  • 9
    N.S.S. Not Sold Separate, ACTUATING - PUMP (ROCHESTER #7048169)
    Not Sold Separate, ACTUATING - PUMP (ROCHESTER #7048169)
  • 10
    N.S.S. Not Sold Separate, HINGE - PUMP LEVER (ROCHESTER #9428787)
    Not Sold Separate, HINGE - PUMP LEVER (ROCHESTER #9428787)
  • 11
    823426A1 PUMP KIT
    PUMP KIT
  • 12
    N.S.S. Not Sold Separate, PUMP RETURN (ROCHESTER #7042979)
    Not Sold Separate, PUMP RETURN (ROCHESTER #7042979)
  • 13
    NSS NOT SOLD SEPARATE, Needle and Seat Assembly
    NOT SOLD SEPARATE, Needle and Seat Assembly
  • 14
    NSS NOT SOLD SEPARATE, Gasket-Needle and Seat
    NOT SOLD SEPARATE, Gasket-Needle and Seat
  • 15
    NSS NOT SOLD SEPARATE, Clip-Pull-Float Needle
    NOT SOLD SEPARATE, Clip-Pull-Float Needle
  • 16
    NSS NOT SOLD SEPARATE, Gasket-Air Horn
    NOT SOLD SEPARATE, Gasket-Air Horn
  • 17
    N.S.S. Not Sold Separate, PRIMARY (ROCHESTER #7031841)
    Not Sold Separate, PRIMARY (ROCHESTER #7031841)
  • 18
    N.S.S. Not Sold Separate, PRIMARY (ROCHESTER #7031968)
    Not Sold Separate, PRIMARY (ROCHESTER #7031968)
  • 19
    N.S.S. Not Sold Separate (ROCHESTER #7036059)
    Not Sold Separate (ROCHESTER #7036059)
  • 20
    N.S.S. Not Sold Separate, CHOKE - CHOKE SHAFT (ROCHESTER #7036021)
    Not Sold Separate, CHOKE - CHOKE SHAFT (ROCHESTER #7036021)
  • 21
    N.S.S. Not Sold Separate, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866)
    Not Sold Separate, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866)
  • 22
    N.S.S. Not Sold Separate (ROCHESTER #7046301)
    Not Sold Separate (ROCHESTER #7046301)
  • 23
    N.S.S. Not Sold Separate, HINGE - FLOAT (ROCHESTER #7029856)
    Not Sold Separate, HINGE - FLOAT (ROCHESTER #7029856)
  • 24
    N.S.S. Not Sold Separate, IMTERMEDIATE CHOKE (ROCHESTER #7031231)
    Not Sold Separate, IMTERMEDIATE CHOKE (ROCHESTER #7031231)
  • 25
    N.S.S. Not Sold Separate, FLOAT BOWL (ROCHESTER #7031365)
    Not Sold Separate, FLOAT BOWL (ROCHESTER #7031365)
  • 26
    N.S.S. Not Sold Separate, CHOKE (ROCHESTER #7037557)
    Not Sold Separate, CHOKE (ROCHESTER #7037557)
  • 31
    1397-8582 PRIMARY VACUUM KIT, VACUUM CONTROL
    PRIMARY VACUUM KIT, VACUUM CONTROL
  • 32
    1397-8582 PRIMARY VACUUM KIT, VAC. CONT. BRCK./FLOAT BOWL
    PRIMARY VACUUM KIT, VAC. CONT. BRCK./FLOAT BOWL
  • 33
    1397-8582 PRIMARY VACUUM KIT, VACUUM
    PRIMARY VACUUM KIT, VACUUM
  • 34
    1397-8582 PRIMARY VACUUM KIT, VACUUM
    PRIMARY VACUUM KIT, VACUUM
  • 35
    N.S.S. Not Sold Separate (RICHESTER #7034637)
    Not Sold Separate (RICHESTER #7034637)
  • 36
    N.S.S. Not Sold Separate, METERING ROD - PRIMARY (ROCHESTER #7029862)
    Not Sold Separate, METERING ROD - PRIMARY (ROCHESTER #7029862)
  • 37
    N.S.S. Not Sold Separate, POWER PISTON (ROCHESTER #7034339)
    Not Sold Separate, POWER PISTON (ROCHESTER #7034339)
  • 38
    N.S.S. Not Sold Separate, PUMP DISCHARGE BALL (ROCHESTER #7029849)
    Not Sold Separate, PUMP DISCHARGE BALL (ROCHESTER #7029849)
  • 39
    NSS NOT SOLD SEPARATE, Ball-Pump Discharge
    NOT SOLD SEPARATE, Ball-Pump Discharge
  • 40
    N.S.S. Not Sold Separate, POWER PISTON (ROCHESTER #7029529)
    Not Sold Separate, POWER PISTON (ROCHESTER #7029529)
  • 41
    N.S.S. Not Sold Separate, FLOAT BOWL (ROCHESTER #7034361)
    Not Sold Separate, FLOAT BOWL (ROCHESTER #7034361)
  • 42
    N.S.S. Not Sold Separate
    Not Sold Separate
  • 43
    N.S.S. Not Sold Separate, IDLE STOP (ROCHESTER #17071461)
    Not Sold Separate, IDLE STOP (ROCHESTER #17071461)
  • 44
    N.S.S. Not Sold Separate, IDLE STOP SCREW (ROCHESTER #7003176)
    Not Sold Separate, IDLE STOP SCREW (ROCHESTER #7003176)
  • 45
    3302-9032 SPRING, FILTER NUT
    SPRING, FILTER NUT
  • 46
    35-53336Q STRAINER, FUEL INLET
    STRAINER, FUEL INLET
  • 47
    1397-3330 NUT, FILTER - FUEL INLET
    NUT, FILTER - FUEL INLET
  • 48
    NSS NOT SOLD SEPARATE, Gasket-Filter Nut
    NOT SOLD SEPARATE, Gasket-Filter Nut
  • 49
    NSS NOT SOLD SEPARATE, Gasket-Throttle Body
    NOT SOLD SEPARATE, Gasket-Throttle Body
  • 50
    N.S.S. Not Sold Separate, PUMP (ROCHESTER #7026138)
    Not Sold Separate, PUMP (ROCHESTER #7026138)
  • 52
    N.S.S. Not Sold Separate
    Not Sold Separate
  • 53
    N.S.S. Not Sold Separate, THROTTLE BODY (ROCHESTER #17062906)
    Not Sold Separate, THROTTLE BODY (ROCHESTER #17062906)
  • 54
    N.S.S. Not Sold Separate, IDLE NEEDLE (ROCHESTER #17062907)
    Not Sold Separate, IDLE NEEDLE (ROCHESTER #17062907)
  • 55
    1397-8557 SCREW KIT, THROTTLE BODY TO FLOAT BOWL
    SCREW KIT, THROTTLE BODY TO FLOAT BOWL
  • --
    N.S.S. Not Sold Separate, AIR VALVE (ROCHESTER #7035344)
    Not Sold Separate, AIR VALVE (ROCHESTER #7035344)
  • --
    823426A1 GASKET KIT
    GASKET KIT
