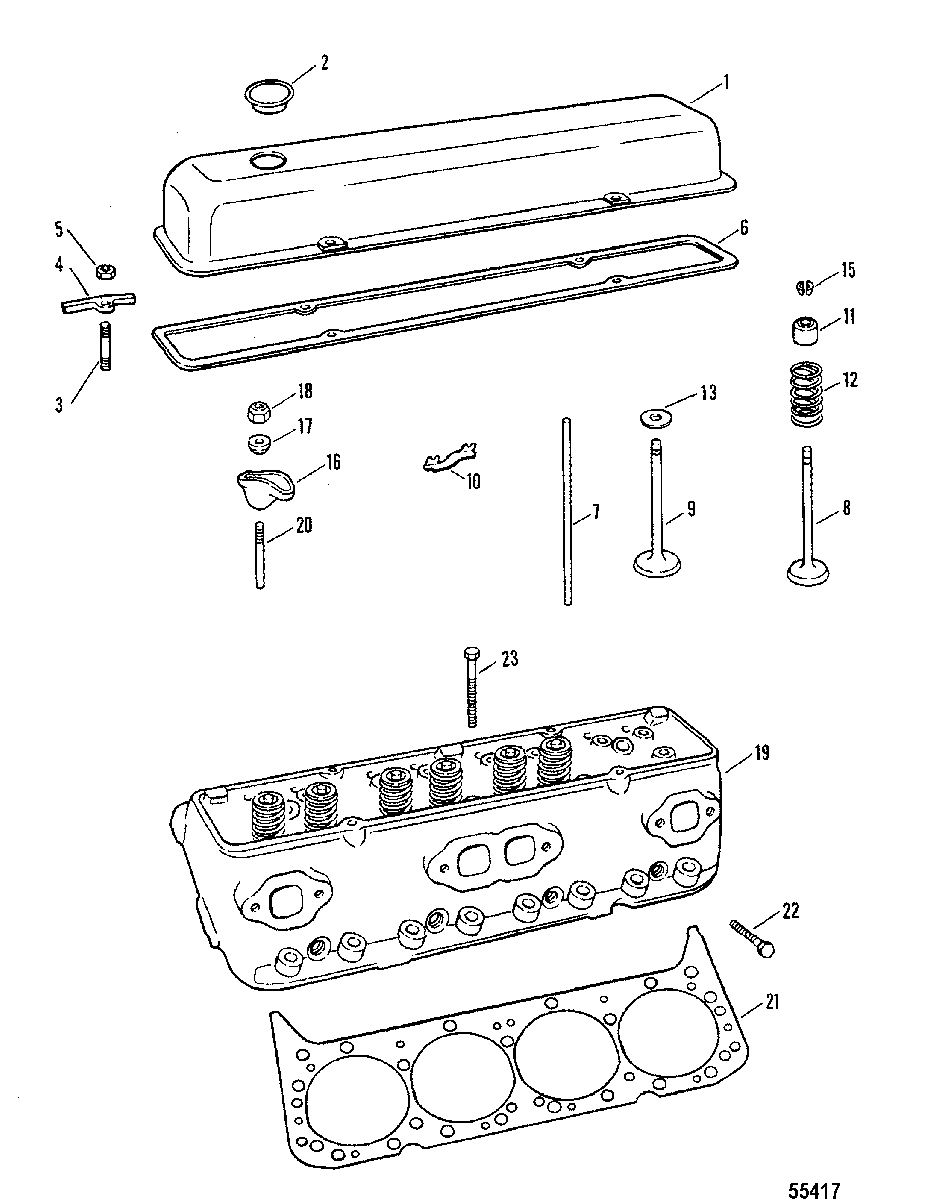

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068

  • №
    Артикул
    Название
  • 1
    17671 COVER, ROCKER
    COVER, ROCKER
  • 2
    36-807152 CAP, Filler, OIL FILTER
    CAP, Filler, OIL FILTER
  • 3
    16-11995 STUD, ROCKER COVER
    STUD, ROCKER COVER
  • 4
    14763 REINFORCEMENT, ROCKER COVER STUD
    REINFORCEMENT, ROCKER COVER STUD
  • 4
    14764 REINFORCEMENT, ROCKER COVER STUD
    REINFORCEMENT, ROCKER COVER STUD
  • 5
    11-8M0098315 NUT, (.250-20), ROCKER COVER STUD
    NUT, (.250-20), ROCKER COVER STUD
  • 6
    27-49121 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 7
    49115 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 7
    49116 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 8
    816962 VALVE, Exhaust, EXHAUST (STANDARD)
    VALVE, Exhaust, EXHAUST (STANDARD)
  • 8
    816963T VALVE, Exhaust, EXHAUST (.015 O.S.)
    VALVE, Exhaust, EXHAUST (.015 O.S.)
  • 9
    801877 VALVE, Inlet, INLET (STANDARD)
    VALVE, Inlet, INLET (STANDARD)
  • 9
    801878 VALVE, Inlet, INLET (.015 O.S.)
    VALVE, Inlet, INLET (.015 O.S.)
  • 10
    49132 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 11
    827644A1 CAP AND SHIELD
    CAP AND SHIELD
  • 12
    24-801879T SPRING, VALVE (INLET AND EXHAUST)
    SPRING, VALVE (INLET AND EXHAUST)
  • 13
    15-845669 SHIM, Valve Spring (.015), VALVE SPRING
    SHIM, Valve Spring (.015), VALVE SPRING
  • 15
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 16
    19241 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 17
    58041 BALL, ROCKER VALVE ARM
    BALL, ROCKER VALVE ARM
  • 18
    11-49119 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 19
    938-5924 CYLINDER HEAD
    CYLINDER HEAD
  • 20
    16-49133 STUD, ROCKER VALVE ARM
    STUD, ROCKER VALVE ARM
  • 21
    27-8M0049045 GASKET, Cylinder Head, CYLINDER HEAD
    GASKET, Cylinder Head, CYLINDER HEAD
  • 22
    8M0102366 BOLT, (2.00 Inch), CYLINDER HEAD TO CYLINDER BLOCK (2")
    BOLT, (2.00 Inch), CYLINDER HEAD TO CYLINDER BLOCK (2")
  • 23
    8M0102366 BOLT, (4.125 Inch), CYLINDER HEAD TO CYLINDER BLOCK (4-1/8")
    BOLT, (4.125 Inch), CYLINDER HEAD TO CYLINDER BLOCK (4-1/8")
