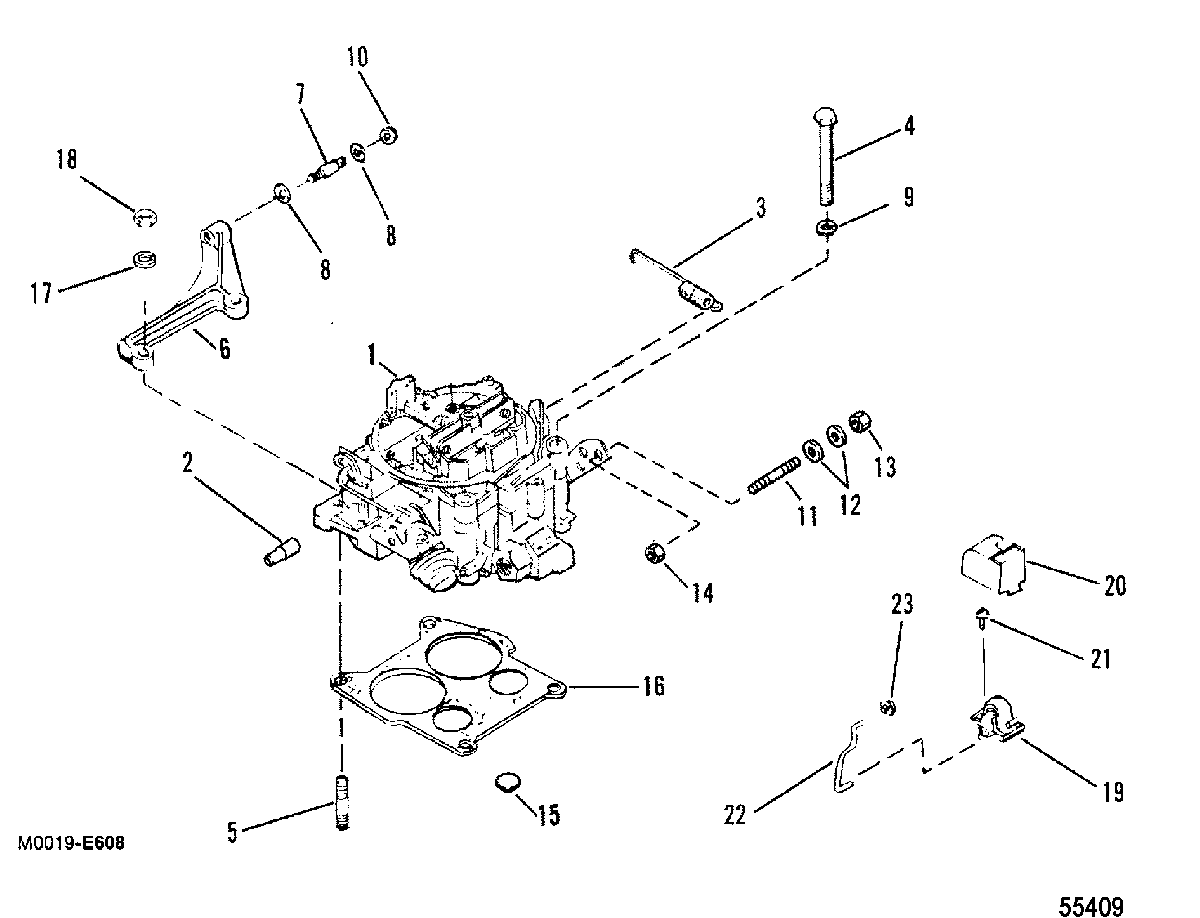

CARBURETOR AND LINKAGE для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068

  • №
    Артикул
    Название
  • 1
    1347-804625R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 3
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 4
    10-74822 SCREW, (.312-18 x 3.500), CARBURETOR (3-1/2")
    SCREW, (.312-18 x 3.500), CARBURETOR (3-1/2")
  • 5
    16-46857 STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8")
    STUD, (5/16 x 1-7/8), CARBURETOR (1-7/8")
  • 6
    805359A02 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 7
    16-38525 STUD, THROTTLE CABLE
    STUD, THROTTLE CABLE
  • 8
    12-24664 WASHER, (M4 x 20), THROTTLE CABLE STUD
    WASHER, (M4 x 20), THROTTLE CABLE STUD
  • 9
    13-39107 LOCKWASHER, (.312-24), CARBURETOR SCREW
    LOCKWASHER, (.312-24), CARBURETOR SCREW
  • 10
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 11
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 12
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
  • 13
    11-8267089 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 14
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    NUT, (.250-28), THROTTLE CABLE STUD
  • 15
    22-12524 PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
    PLUG, (.375), INTAKE MANIFOLD VACUUM HOLE
  • 16
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 17
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUD
    WASHER, (.328 x .562 x .062), CARBURETOR STUD
  • 18
    11-29250 NUT, (.312-24), CARBURETOR TUD
    NUT, (.312-24), CARBURETOR TUD
  • 19
    66205 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 20
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 21
    10-69235 SCREW, (.190-24 x .500), AUTOMATIC CHOKE THERMOSTAT
    SCREW, (.190-24 x .500), AUTOMATIC CHOKE THERMOSTAT
  • 22
    72468 CHOKE ROD, CHOKE
    CHOKE ROD, CHOKE
  • 23
    54-49290 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
