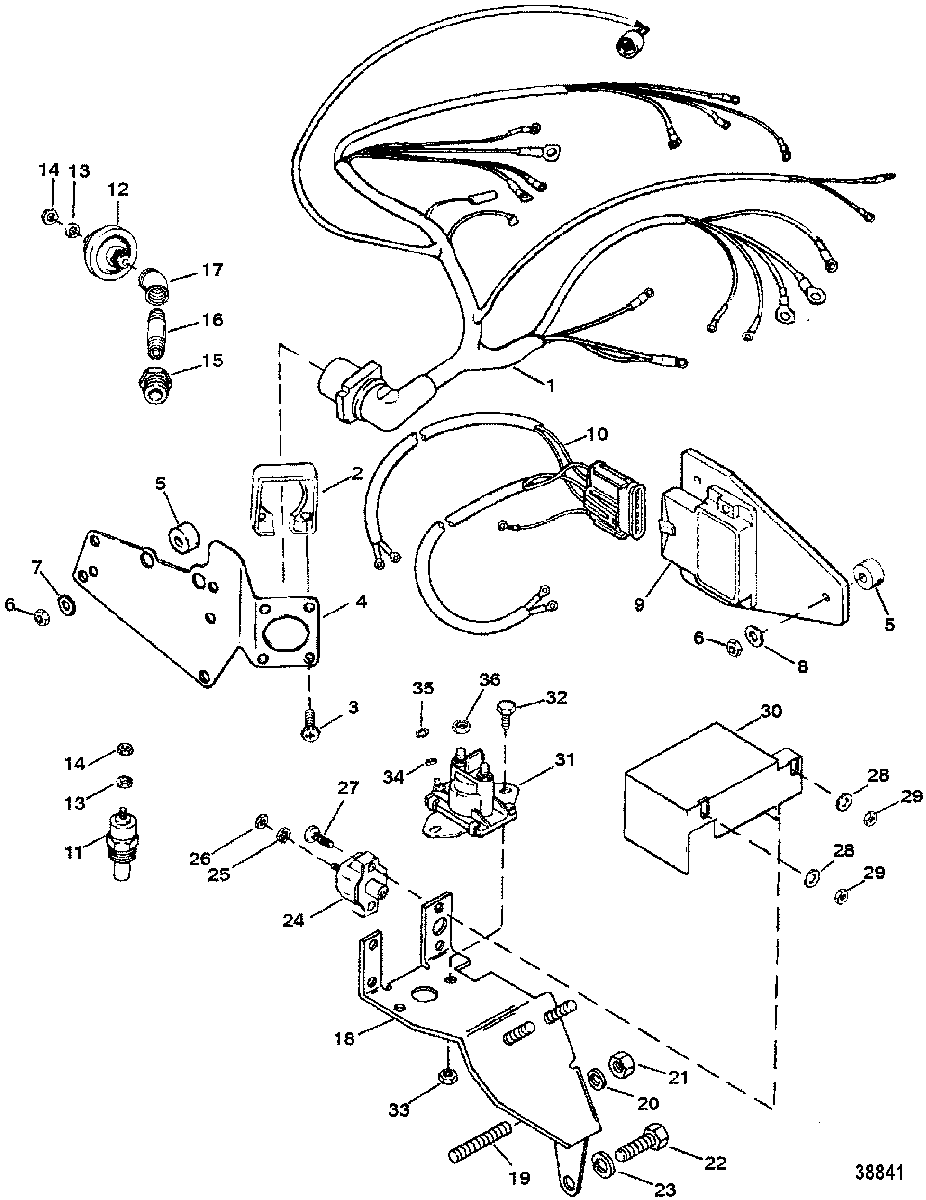

WIRING HARNESS/ELECTRICAL(MOUNTED ON EXHAUST ELBOW)TB IV для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999

  • №
    Артикул
    Название
  • 1
    84-96020A6 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    98493A2 BRACKET
    BRACKET
  • 5
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
  • 6
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 7
    23-806981 SPACER
    SPACER
  • 8
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 9
    15248A1 MODULE KIT, Ignition
    MODULE KIT, Ignition
  • 10
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 11
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 11
    49734 SENDER ASSEMBLY, Water Temperature
    (DUAL STATION)
    SENDER ASSEMBLY, Water Temperature
    (DUAL STATION)
  • 12
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 12
    37293T SENDER ASSEMBLY, Oil Pressure
    (DUAL STATION)
    SENDER ASSEMBLY, Oil Pressure
    (DUAL STATION)
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 14
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 15
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 16
    22-885153 NIPPLE
    NIPPLE
  • 17
    22-46932 ELBOW
    ELBOW
  • 18
    818384T1 BRACKET
    BRACKET
  • 19
    16-64281 STUD, (.375-16/.375-24 x 1.880)
    STUD, (.375-16/.375-24 x 1.880)
  • 20
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 21
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 22
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 23
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 24
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 25
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 26
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 27
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 28
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 29
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 30
    85-96819T INSULATOR
    INSULATOR
  • 31
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 32
    10-96138 SCREW, (1/4-28 x 5/8) (5/8 IN.)
    SCREW, (1/4-28 x 5/8) (5/8 IN.)
  • 33
    11-20088 NUT
    NUT
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 35
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 36
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
