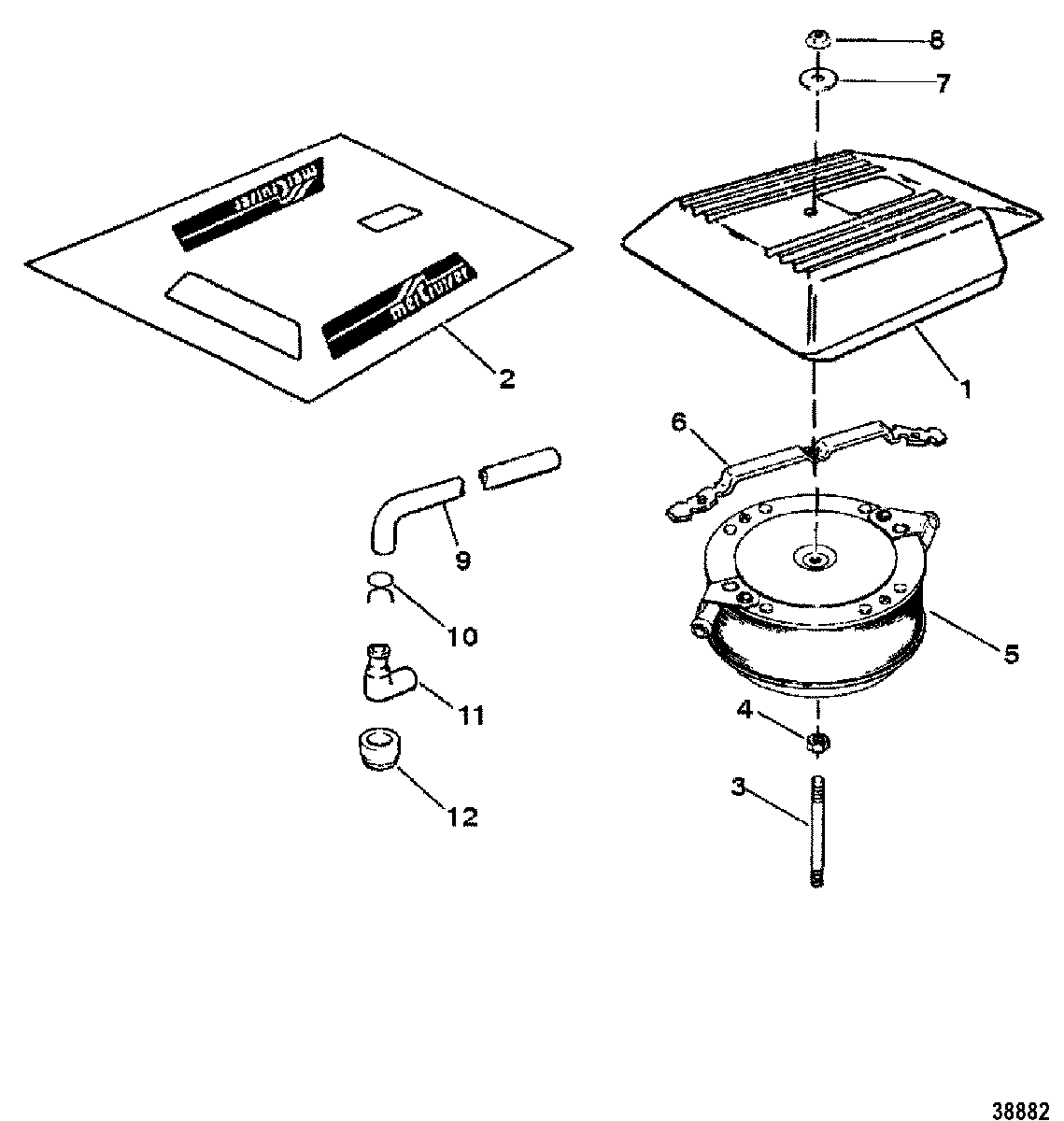

FLAME ARRESTOR для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-812776A27 DECAL SET
    (7.4L BRAVO I & II)
    DECAL SET
    (7.4L BRAVO I & II)
  • 2
    37-812776A28 DECAL SET
    (7.4L BRAVO III)
    DECAL SET
    (7.4L BRAVO III)
  • 2
    37-812776A24 DECAL SET
    (454 MAGNUM)
    DECAL SET
    (454 MAGNUM)
  • 3
    16-805161 STUD, (4.75 In)
    USE WITHOUT REF. #6
    STUD, (4.75 In)
    USE WITHOUT REF. #6
  • 4
    11-8267139 NUT
    USE WITHOUT REF. #6
    NUT
    USE WITHOUT REF. #6
  • 5
    805298A1 FLAME ARRESTOR NEW DESIGN
    USE WITHOUT REF. #6
    FLAME ARRESTOR NEW DESIGN
    USE WITHOUT REF. #6
  • 3
    16-805296 STUD, (4.50 Inch)
    7.4L BRAVO I & II- USE WITH RETAINER REF. #6
    STUD, (4.50 Inch)
    7.4L BRAVO I & II- USE WITH RETAINER REF. #6
  • 5
    805298A1 FLAME ARRESTOR
    7.4L BRAVO I & II- USE WITH RETAINER REF. #6
    FLAME ARRESTOR
    7.4L BRAVO I & II- USE WITH RETAINER REF. #6
  • 6
    805314 RETAINER, Breather Hose
    7.4L BRAVO I & II- USE WITH RETAINER REF. #6
    RETAINER, Breather Hose
    7.4L BRAVO I & II- USE WITH RETAINER REF. #6
  • 3
    16-805297 STUD
    7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6
    STUD
    7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6
  • 5
    805299A1 FLAME ARRESTOR
    7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6
    FLAME ARRESTOR
    7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6
  • 6
    805314 RETAINER, Breather Hose
    7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6
    RETAINER, Breather Hose
    7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6
  • 7
    12-86400 WASHER
    WASHER
  • 8
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 9
    32-8M0086022 HOSE, Breather
    HOSE, Breather
  • 10
    54-53101 CLAMP
    CLAMP
  • 11
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 12
    25-811553 GROMMET
    GROMMET
