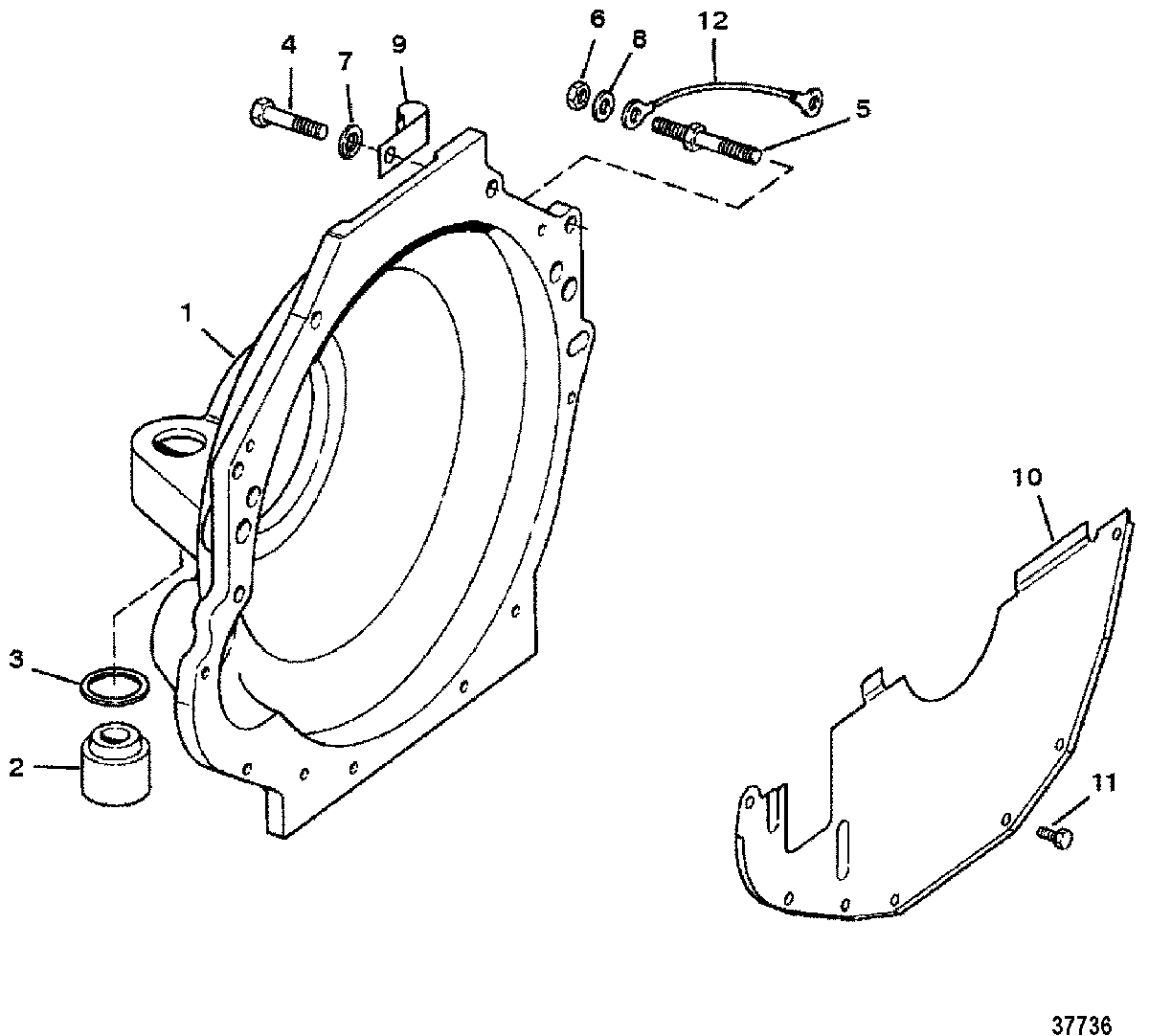

FLYWHEEL HOUSING для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999

  • №
    Артикул
    Название
  • 1
    865657A04 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    865330A02 MOUNT
    MOUNT
  • 3
    23-99322 SPACER
    SPACER
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 4
    10-358701 SCREW, (.375-16 x 2.00)
    SCREW, (.375-16 x 2.00)
  • 5
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 6
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 7
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 8
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 10
    807260A2 COVER
    COVER
  • 11
    10-32773 SCREW, (.250-20 x .875)
    SCREW, (.250-20 x .875)
  • 12
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
