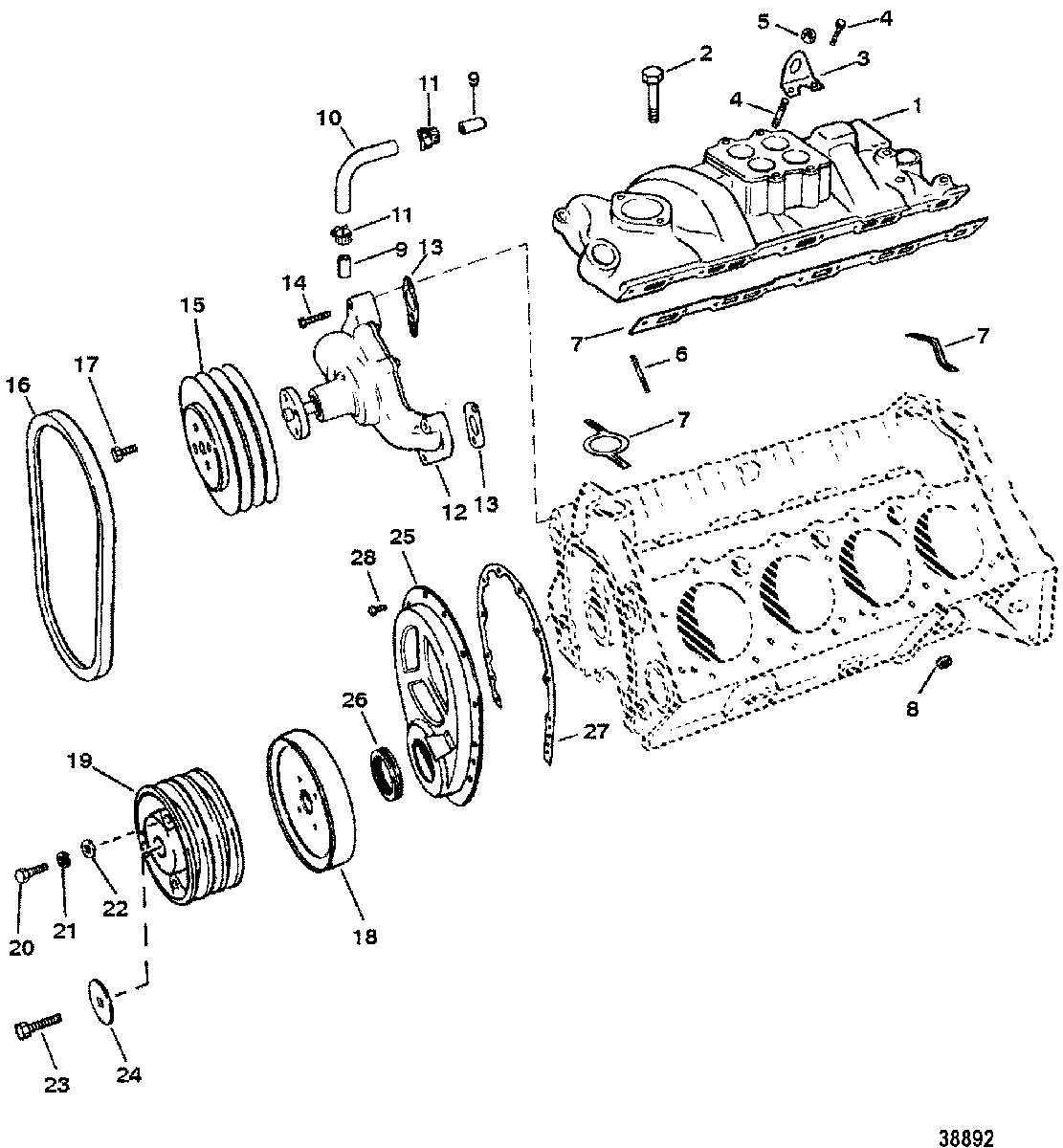

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999

  • №
    Артикул
    Название
  • 1
    811575T MANIFOLD
    7.4L BRAVO I & II
    MANIFOLD
    7.4L BRAVO I & II
  • 2
    10-37510 BOLT, (1.5 In.)
    7.4L BRAVO I & II
    BOLT, (1.5 In.)
    7.4L BRAVO I & II
  • 2
    10-811577 BOLT
    7.4L BRAVO I & II
    BOLT
    7.4L BRAVO I & II
  • 1
    72608T MANIFOLD
    7.4L BRAVO III
    MANIFOLD
    7.4L BRAVO III
  • 2
    10-802655 BOLT
    7.4L BRAVO III
    BOLT
    7.4L BRAVO III
  • 2
    10-805611 BOLT
    7.4L BRAVO III
    BOLT
    7.4L BRAVO III
  • 1
    72608T MANIFOLD
    454 MAGNUM
    MANIFOLD
    454 MAGNUM
  • 2
    10-37510 BOLT, (1.5 In.)
    454 MAGNUM
    BOLT, (1.5 In.)
    454 MAGNUM
  • 2
    10-805611 SCREW, (.375-16 x 1.750)
    454 MAGNUM
    SCREW, (.375-16 x 1.750)
    454 MAGNUM
  • 3
    54-64628 LIFTING EYE
    LIFTING EYE
  • 4
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 4
    16-806250 STUD
    STUD
  • 5
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 6
    NSS NOT SOLD SEPARATE, STUD (GM #10092939)
    NOT SOLD SEPARATE, STUD (GM #10092939)
  • 7
    27-8M0050225 GASKET SET
    (7.4L BRAVO I & II)
    GASKET SET
    (7.4L BRAVO I & II)
  • 7
    27-8M0073380 GASKET SET
    (7.4L BRAVO III & 454 MAGNUM)
    GASKET SET
    (7.4L BRAVO III & 454 MAGNUM)
  • 8
    34543 VALVE, Oil Bypass
    VALVE, Oil Bypass
  • 9
    22-806242 CONNECTOR
    CONNECTOR
  • 10
    32-805987 HOSE
    HOSE
  • 11
    54-815504412 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 12
    46-8M0113735 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 13
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 14
    10-805611 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 15
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 16
    57-48122Q BELT, (48 Inches)
    BELT, (48 Inches)
  • 17
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 18
    8M0082186 HARMONIC BALANCER
    (7.4L BRAVO)
    HARMONIC BALANCER
    (7.4L BRAVO)
  • 18
    845625T2 DAMPER
    (454 MAGNUM)
    DAMPER
    (454 MAGNUM)
  • 19
    90081T PULLEY
    PULLEY
  • 20
    10-75334 SCREW, (.375-24 x 3.00)
    (7.4L BRAVO)
    SCREW, (.375-24 x 3.00)
    (7.4L BRAVO)
  • 20
    10-358701 SCREW, (.375-16 x 2.00)
    (454 MAGNUM)
    SCREW, (.375-16 x 2.00)
    (454 MAGNUM)
  • 21
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 22
    12-34714 WASHER
    WASHER
  • 23
    10-845627 SCREW, (.500-20 x 2.500)
    SCREW, (.500-20 x 2.500)
  • 24
    12-49103 WASHER
    WASHER
  • 25
    811570 COVER ASSEMBLY
    COVER ASSEMBLY
  • 26
    26-8219471 SEAL
    SEAL
  • 27
    27-811572 GASKET
    GASKET
  • 28
    10-8M0040582 SCREW
    SCREW
  • -
    27-811547A92 GASKET SET, Engine
    (7.4L BRAVO)
    GASKET SET, Engine
    (7.4L BRAVO)
  • -
    27-811572A92 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
