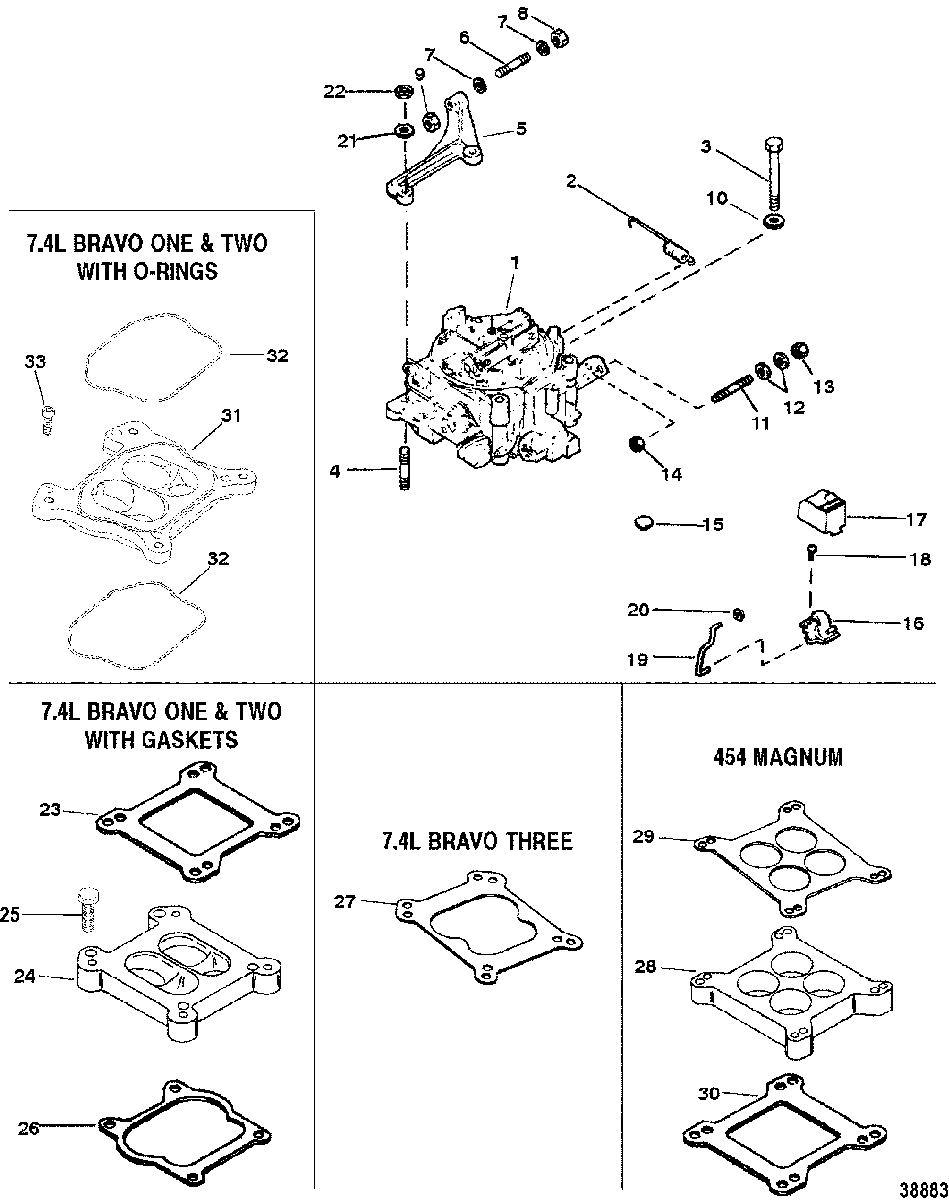

CARBURETOR AND LINKAGE для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999

№

Артикул

Название
1

3310-806969A2 CARBURETOR
(7.4L BRAVO I & II) SN# 0D603118 THRU 0F351999

CARBURETOR
(7.4L BRAVO I & II) SN# 0D603118 THRU 0F351999
1

3310-8M0047212 CARBURETOR
(7.4L BRAVO I & II) SN# 0F352000 & Up

CARBURETOR
(7.4L BRAVO I & II) SN# 0F352000 & Up
1

3310-806755A2 CARBURETOR
(7.4L BRAVO III) SN# 0D838819 & Up

CARBURETOR
(7.4L BRAVO III) SN# 0D838819 & Up
1

3310-806755A1 CARBURETOR
(454 MAGNUM) SN# 0D808069 THRU 0F304999

CARBURETOR
(454 MAGNUM) SN# 0D808069 THRU 0F304999
1

3310-806755A2 CARBURETOR
(454 MAGNUM) SN# 0F305000 & Up

CARBURETOR
(454 MAGNUM) SN# 0F305000 & Up
2

24-897454 SPRING

SPRING
3

10-35385 SCREW, (.312-18 x 1-3/4)

SCREW, (.312-18 x 1-3/4)
3

10-35386 SCREW, (.312-18 x 1.00)

SCREW, (.312-18 x 1.00)
4

16-70237 STUD, (.312-18/.312-24 x 2.620)

STUD, (.312-18/.312-24 x 2.620)
4

16-8M0113177 STUD, (.312 x 1.500)

STUD, (.312 x 1.500)
5

805359T BRACKET (CAST)

BRACKET (CAST)
5

805359T BRACKET (STAMPED)

BRACKET (STAMPED)
6

16-818192 STUD

STUD
7

12-24664 WASHER, (M4 x 20)

WASHER, (M4 x 20)
8

11-826709109 NUT, (.250-28)

NUT, (.250-28)
9

11-8267089 NUT, (.250-28)

NUT, (.250-28)
10

13-39107 LOCKWASHER, (.312-24)

LOCKWASHER, (.312-24)
11

16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor

STUD, (.250-28 x 2.00), Throttle Cable Anchor
12

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel
13

11-8267089 NUT, (.250-28)

NUT, (.250-28)
14

11-826709109 NUT, (.250-28)

NUT, (.250-28)
15

22-12524 PLUG, (.375)

PLUG, (.375)
16

71464A01 CHOKE
AUTOMATIC CHOKE

CHOKE
AUTOMATIC CHOKE
17

63922 COVER
AUTOMATIC CHOKE

COVER
AUTOMATIC CHOKE
18

10-69235 SCREW, (.190-24 x .500)
AUTOMATIC CHOKE

SCREW, (.190-24 x .500)
AUTOMATIC CHOKE
19

806937 ROD, Choke
(7.4L BRAVO I & II) AUTOMATIC CHOKE

ROD, Choke
(7.4L BRAVO I & II) AUTOMATIC CHOKE
19

806940 ROD, Choke
(454 MAGNUM & 7.4L BRAVO III) AUTOMATIC CHOKE

ROD, Choke
(454 MAGNUM & 7.4L BRAVO III) AUTOMATIC CHOKE
20

54-89668 CLIP
AUTOMATIC CHOKE

CLIP
AUTOMATIC CHOKE
21

12-20084 WASHER, (.328 x .562 x .062)

WASHER, (.328 x .562 x .062)
22

11-29250 NUT, (.312-24)

NUT, (.312-24)
23

27-41610 GASKET
7.4L BRAVO I & II WITH GASKETS

GASKET
7.4L BRAVO I & II WITH GASKETS
24

806177A3 SPACER
7.4L BRAVO I & II WITH GASKETS

SPACER
7.4L BRAVO I & II WITH GASKETS
25

10-54523 SCREW, (.312-18 x 1.00)
7.4L BRAVO I & II WITH GASKETS

SCREW, (.312-18 x 1.00)
7.4L BRAVO I & II WITH GASKETS
26

27-524572 GASKET
7.4L BRAVO I & II WITH GASKETS

GASKET
7.4L BRAVO I & II WITH GASKETS
27

27-814210 GASKET
(7.4L BRAVO III & 454 MAGNUM WITH #9773 CARBURETOR)

GASKET
(7.4L BRAVO III & 454 MAGNUM WITH #9773 CARBURETOR)
28

889338A1 SPACER
(NOT USED WITH #9773 CARBURETOR) 454 MAGNUM

SPACER
(NOT USED WITH #9773 CARBURETOR) 454 MAGNUM
29

27-41609 GASKET
454 MAGNUM

GASKET
454 MAGNUM
30

27-41610 GASKET
454 MAGNUM

GASKET
454 MAGNUM
31

806177A3 SPACER
7.4L BRAVO I & II WITH O-RINGS

SPACER
7.4L BRAVO I & II WITH O-RINGS
32

25-806237 QUAD RING
7.4L BRAVO I & II WITH O-RINGS

QUAD RING
7.4L BRAVO I & II WITH O-RINGS
33

10-54523 SCREW, (.312-18 x 1.00)
7.4L BRAVO I & II WITH O-RINGS

SCREW, (.312-18 x 1.00)
7.4L BRAVO I & II WITH O-RINGS
-

27-811547A92 GASKET SET, Engine
(7.4L BRAVO)

GASKET SET, Engine
(7.4L BRAVO)
-

27-811572A92 GASKET SET, Overhaul
(454 MAGNUM)

GASKET SET, Overhaul
(454 MAGNUM)
