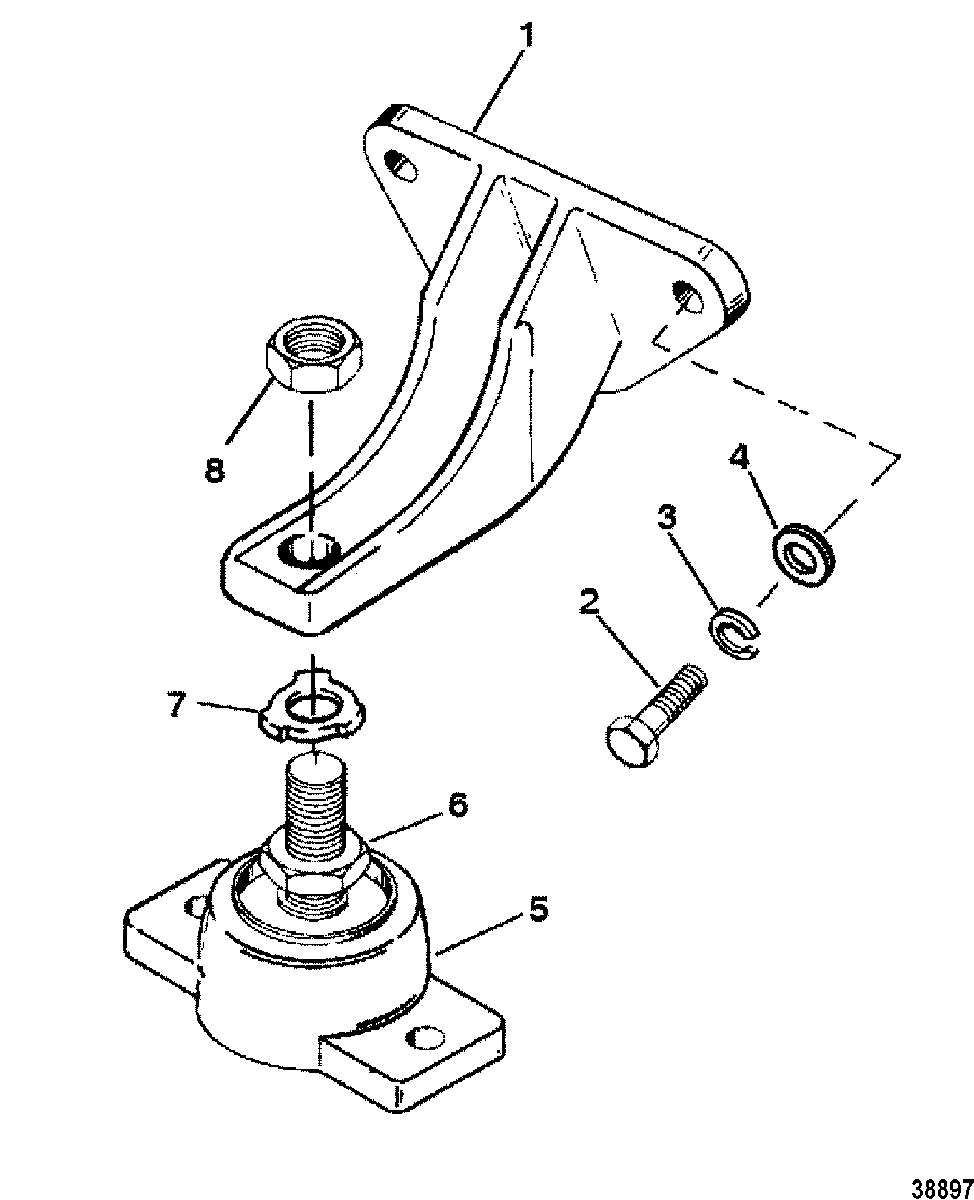

ENGINE MOUNTING для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET (FRONT)
    BRACKET (FRONT)
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    PORT
    SCREW, (.375-16 x 1.375)
    PORT
  • 2
    10-358701 SCREW, (.375-16 x 2.00)
    PORT
    SCREW, (.375-16 x 2.00)
    PORT
  • 3
    13-35048 LOCKWASHER, (.375)
    PORT
    LOCKWASHER, (.375)
    PORT
  • 4
    12-46132 WASHER
    PORT
    WASHER
    PORT
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    STARBOARD
    SCREW, (.375-16 x 1.375)
    STARBOARD
  • 3
    13-35048 LOCKWASHER, (.375)
    STARBOARD
    LOCKWASHER, (.375)
    STARBOARD
  • 5
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 6
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 7
    14-12657 TAB WASHER
    TAB WASHER
  • 8
    11-859126 NUT
    NUT
