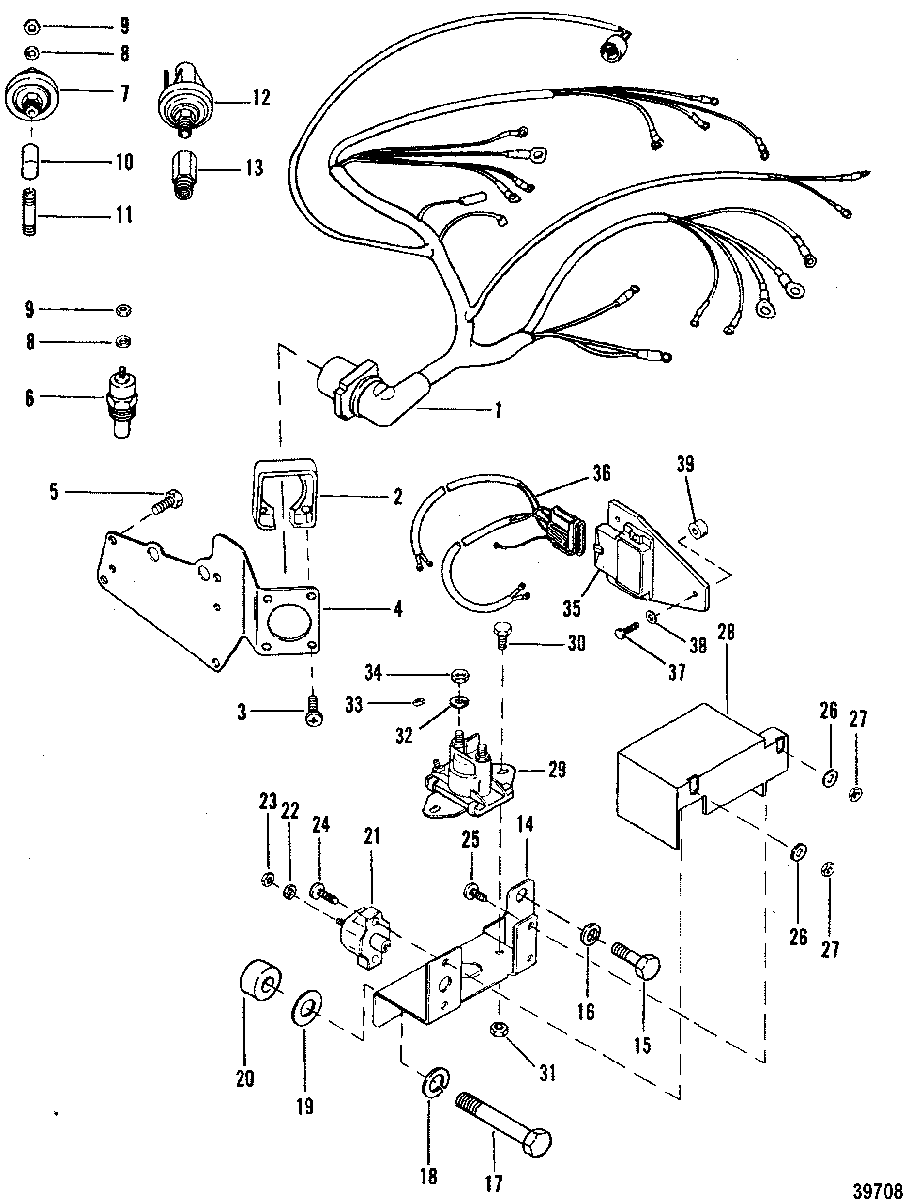

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219

  • №
    Артикул
    Название
  • 1
    84-99510A13 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    98493A2 BRACKET
    BRACKET
  • 5
    10-65746 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 6
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 6
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 7
    8M0068784 SENDER, Oil Pressure
    SENDER, Oil Pressure
  • 7
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    22-46932 ELBOW
    ELBOW
  • 11
    22-885153 NIPPLE
    NIPPLE
  • 12
    87-864252A01 SWITCH, Oil Pressure
    SWITCH, Oil Pressure
  • 13
    22-18021 FITTING
    FITTING
  • 14
    41170T BRACKET
    BRACKET
  • 15
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 16
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 17
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 18
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 19
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 20
    23-57369 SPACER
    SPACER
  • 21
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 23
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 24
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 25
    10-71405 SCREW, (#10-32 x .440)
    SCREW, (#10-32 x .440)
  • 26
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 27
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 28
    85-96819T INSULATOR
    INSULATOR
  • 29
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 30
    10-96138 SCREW, (1/4-28 x 5/8) (5/8")
    SCREW, (1/4-28 x 5/8) (5/8")
  • 31
    11-20088 NUT
    NUT
  • 32
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 33
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 34
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 35
    15247A1 IGNITION AMPLIFIER
    IGNITION AMPLIFIER
  • 36
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 37
    10-76630 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 38
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 39
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
